Used IPM BS/R 250 of 2003 for sale

Pipe belling and socketing machine IPM, We guarantee that the buying process for used machinery through MachinePoint is safe and professional.


Data Sheet of Used IPM BS/R 250

Ref. : 300042801

Year: 2003

Brand: IPM

Status: For sale

Delivery time: Immediate



Technical Specifications:

Maximum Diameter: 250 mm

Minimum Diameter: 32 mm

Number Of Heating Stations: 4

Heating Capacity: 4.8 kW

Other Specifications:

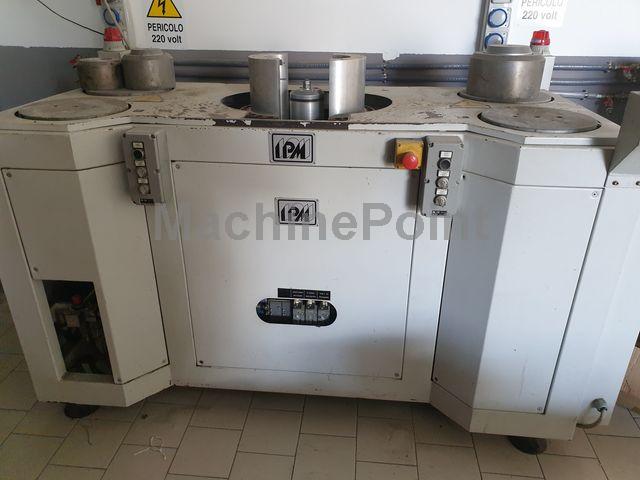

SEMIAUTOMATIC BELLING MACHINE FOR O-RING SOCKET:

COMPLETE WITH MOULDS FOR O-RING SOCKET :
- D.40-50-63-75-100 FOR PIPES THICKNESS.3,2mm
- D.110-125-200 FOR PIPES THICKNESS. SN4
- D.160-250 FOR PIPES WITH THICKNESS SN2

IN ADDITION, THE FOLLOWING MOULDS ARE MOUNTED ON THIS BELLING MACHINE:
- MOULDS FOR EXPANSION JOINTS OF D.40-50-63-75-100-110-125
- MOLD FOR O-RING SOCKET OF D.100 ON BRACED BENDS AND VALVE REDUCTIONS INCREASES

ALSO RESISTORES FOR HEATING

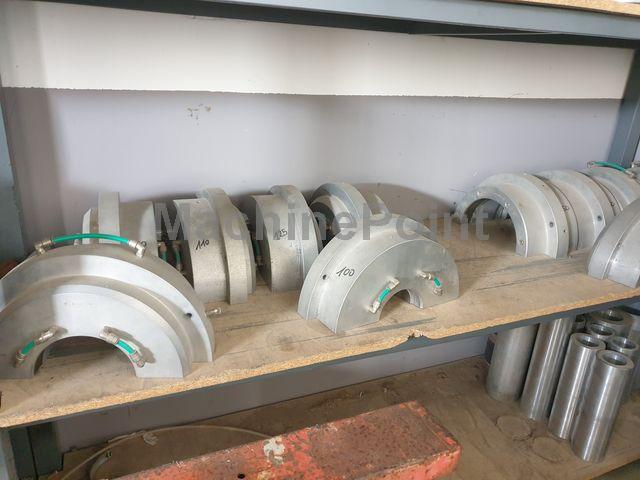

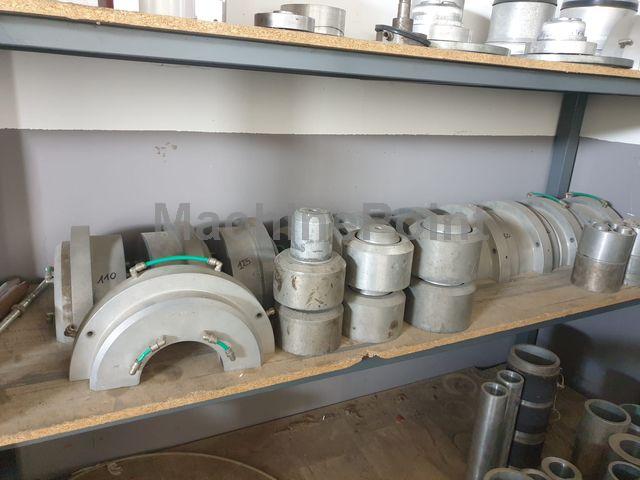

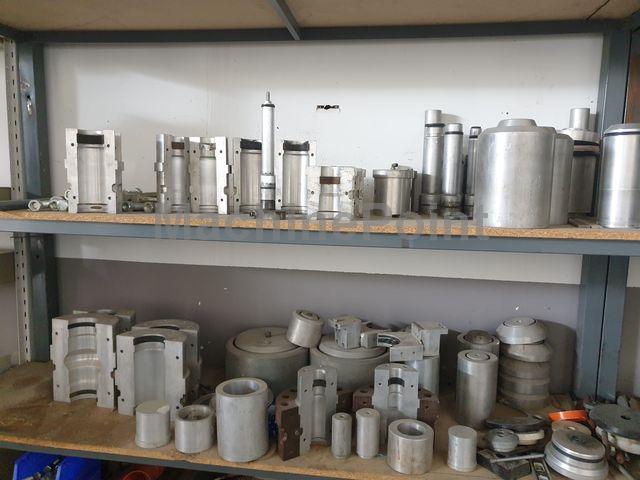

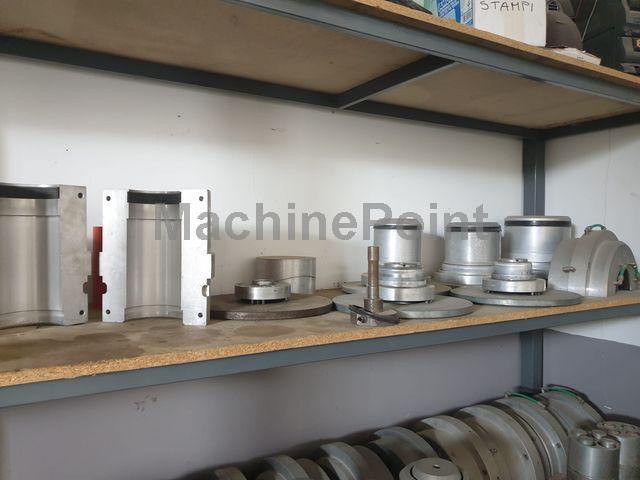

Total avaialable moulds:
10 moulds for O-ring socket
7 moulds for joints
1 mould for O-ring 100 mm for fittings (building pipes)

Other Details:

Guarantee: Without guarantee

Current condition: Not running. Can be shown in dry cycle

Availability: Immediate

Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 4.8 Kw
