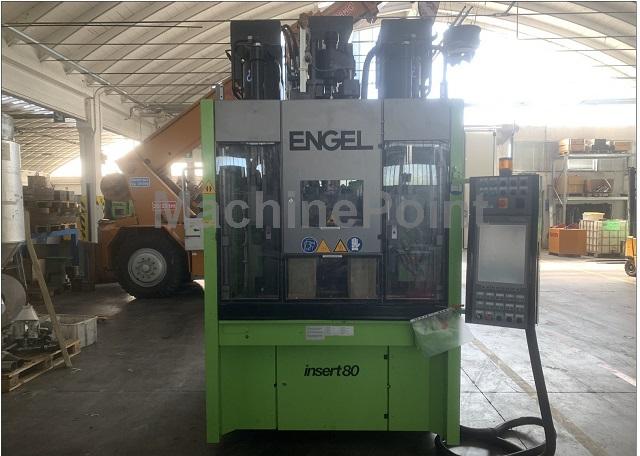

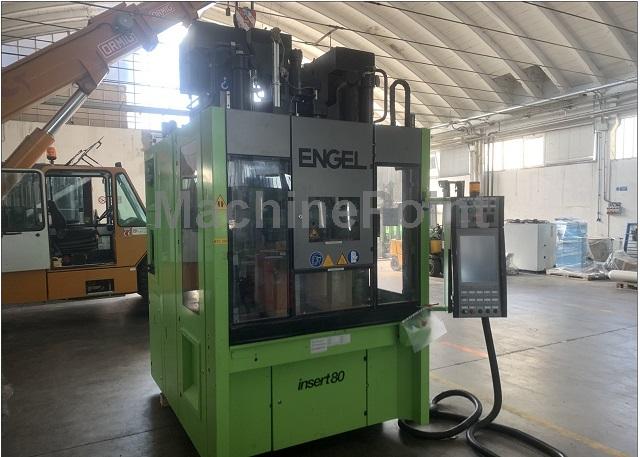

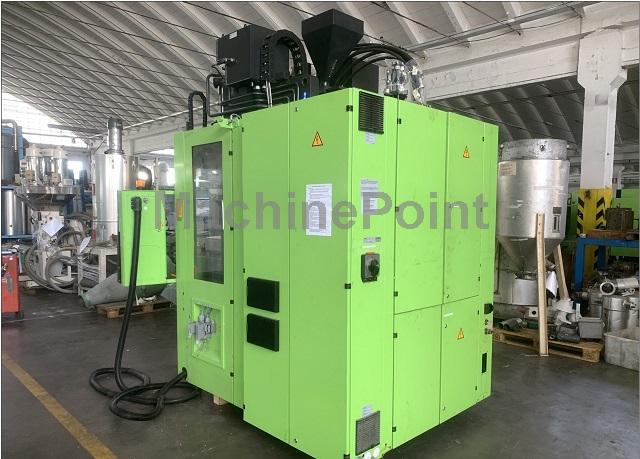

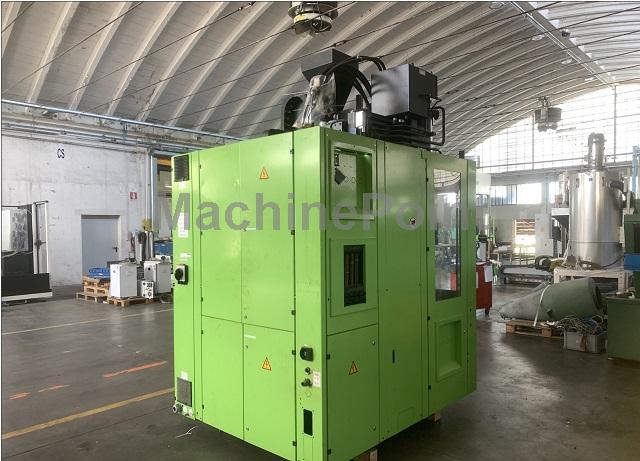

Used Injection molding machine up to 250 T : ENGEL INSERT 200V/80 of 2012

Data Sheet of Used ENGEL INSERT 200V/80

Ref.: 300043048

Brand: ENGEL

Year: 2012

---

• Clamping Force: 80 ton
• Distance Between Tie-Bars (H): 1130 mm
• Distance Between Tie-Bars (V): 625 mm
• Screw Diameter: 25 mm
• Control Type: Electronic
• Mould Thickness (Min): 450 mm
• Opening Stroke (Max): 357 mm
• Ejector Force: 2.03943242595586 ton
• Ejector Stroke: 105 mm
• Core Pulls: Yes
• Number Of Core Pulls: 1
• Screw Speed: 480 rpm
• Injection Volume: 69 cm³
• Injection Pressure: 2090 bar
• Injection Rate: 104 cm³/s
• Nozzle Force (Max): 2.88579688272754 ton
• Nozzle Stroke (Max): 530 mm
• Heating Zones: 13

Other Specifications:

Brand: Engel
Model: Insert 200V/80
Clamping force: 80Ton/ 800kN
Opening stroke: 357mm
Screw Diameter: 25mm
Shot Volume: 69
Mould thickness(min/max): 450min
Injection rate: 104cm^3/s
Distance between tie-bars:1130 x 625 mould plate
Euromap: 200/80

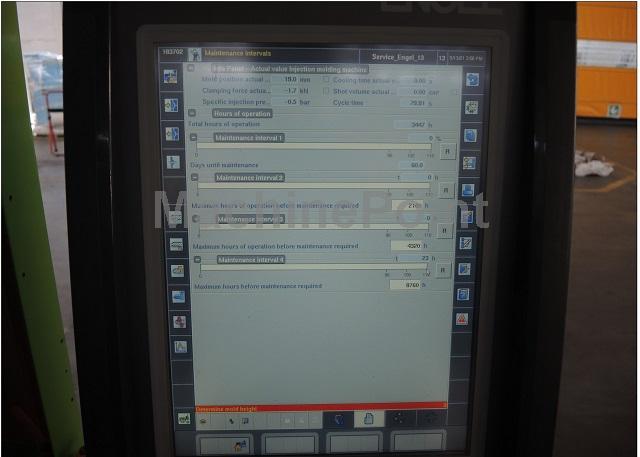

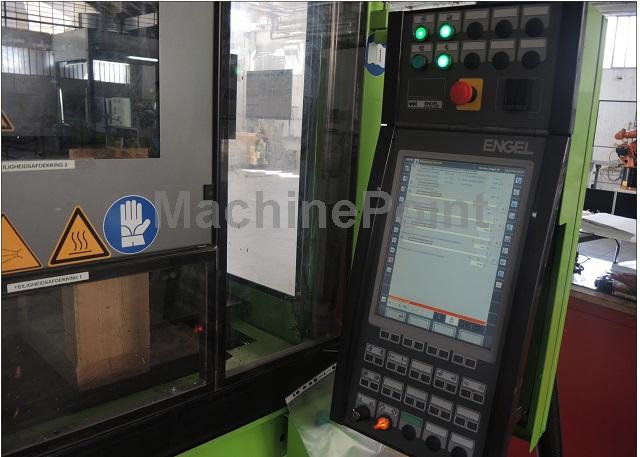

Control: EC-200
