Used TETRA PAK TA Flex 5 of 1996 for sale

1996 | Ref.: 300043358

Aseptic systems TETRA PAK, The team at MachinePoint will accompany you through the whole process of buying the machine.

Data Sheet of Used TETRA PAK TA Flex 5

Ref.: 300043358

Year: 1996

Brand: TETRA PAK

Status:
For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?
TETRA PAK - Aseptic Flex 5 - Used machine
TETRA PAK - Aseptic Flex 5 - Used machine
TETRA PAK - Aseptic Flex 5 - Used machine
TETRA PAK - Aseptic Flex 5 - Used machine
TETRA PAK - Aseptic Flex 5 - Used machine
TETRA PAK - Aseptic Flex 5 - Used machine
TETRA PAK - Aseptic Flex 5 - Used machine
TETRA PAK - Aseptic Flex 5 - Used machine
Please accept marketing-cookies to watch this video.

Technical Specifications:

  • Output (L/H): 5000 l/h
  • Type: Tubular

Other Specifications:

Tetra Pak UHT system Tetra Aseptic Flex5 from 1996

Capacity: 4000-5000 L/h

The offer includes the following mschines:
- homogenizer Tetra Alex 25 from 1996

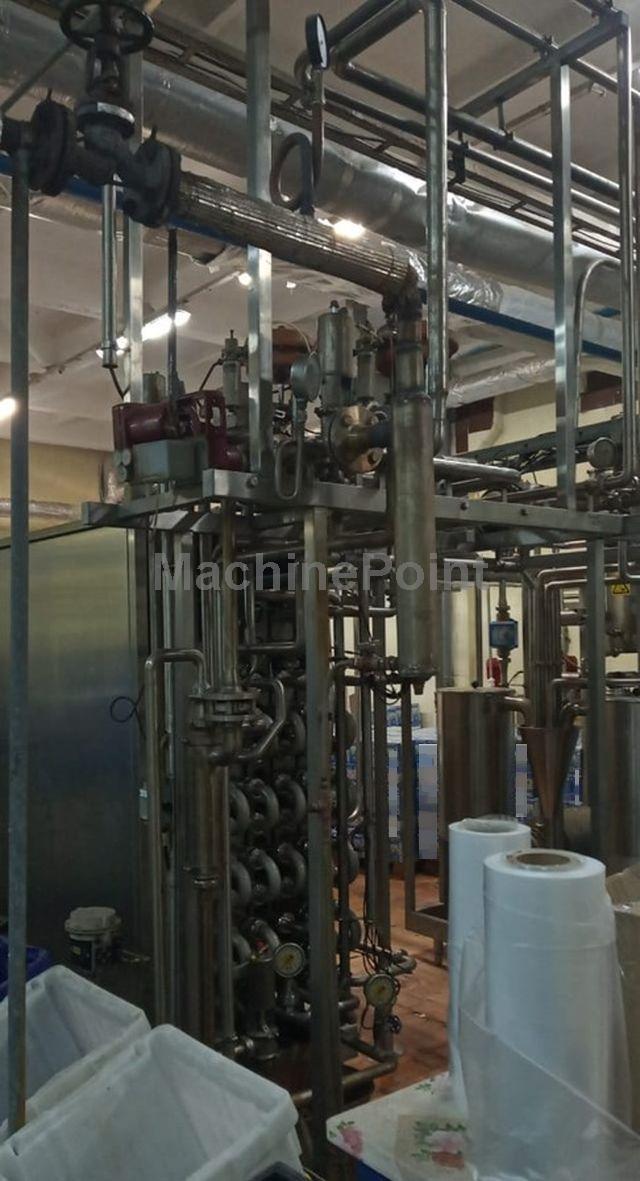

- Tubular heat exchanger Tetra Therm Aseptic Flex5 from 1996

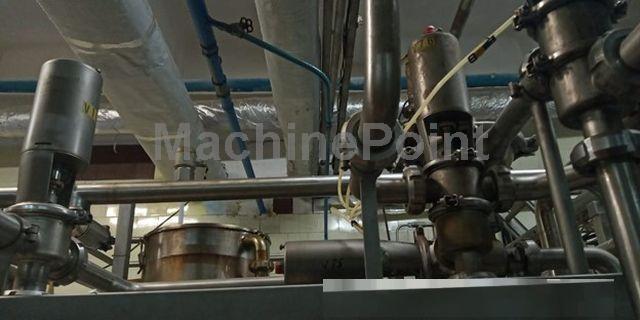

- Valves system: SRC , CPMI, LKC, Worcester, Gestra, SRC, Camfix, Honeywell
- CIP with dosing pumps
- Pumps: Alfa Laval LKH-113 7.5 kW, Alfa Laval LK-4 kW, Alfa Laval LKH-10/163 4 kW.

Working hours (August 2021): 21.154

Temperature programs on the controller:
- milk 5-75-137-25 ° C, holding time - 4 sec.
- juice 5-95-25 ° C, holding time - 30 sec.
- nectar 5-105-25 ° C, holding time - 30 sec.

The equipment is in very good condition and available immediately.

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Clasification:

Final Products: Milk

Processes: Pasterurization

Application: Aseptic
