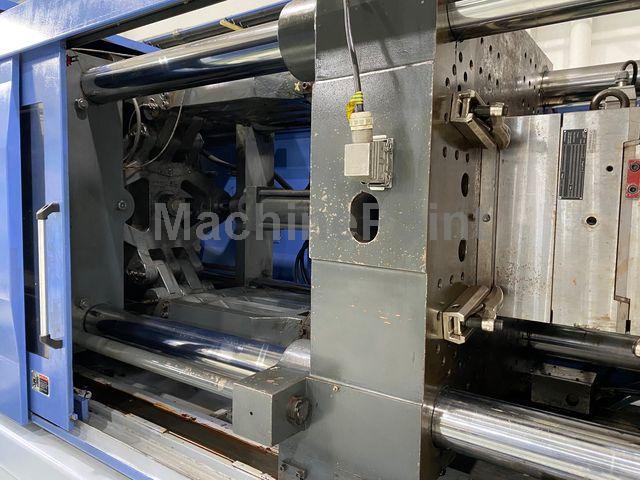

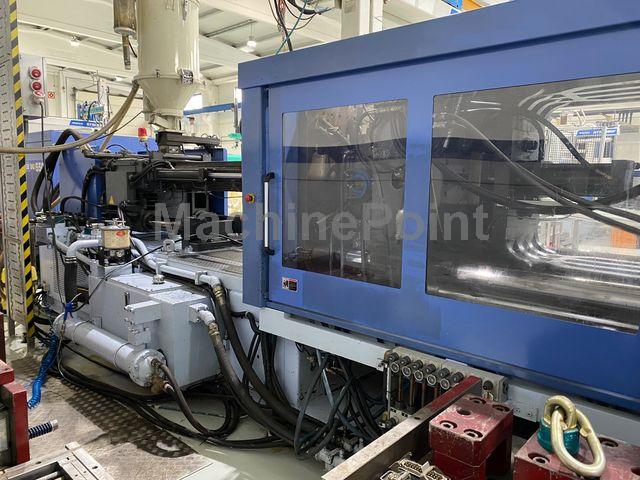

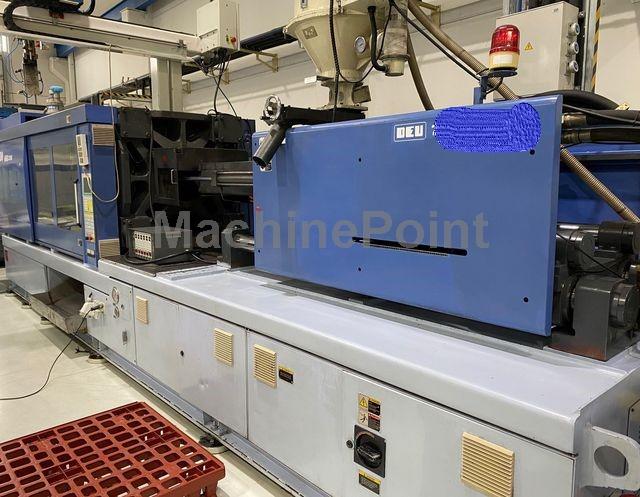

Used DEU DG400 of 2002 for sale

Injection molding machine from 250 T up to 500 T DEU, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.

Data Sheet of Used DEU DG400

Ref. : 300043393

Year: 2002

Brand: DEU

Status: For sale

Delivery time: Immediate

Technical Specifications:

Clamping Force: 400 ton

Shot Weight (Max): 1990 g

Distance Between Tie-Bars (H): 760 mm

Distance Between Tie-Bars (V): 760 mm

Platen Size (H): 1140 mm

Platen Size (V): 1140 mm

Screw Diameter: 80 mm

Mould Thickness (Max): 850 mm

Mould Thickness (Min): 300 mm

Daylight Between Platens (Max): 1620 mm

Opening Stroke (Max): 770 mm

Ejector Force: 17 ton

Ejector Stroke: 240 mm

Number Of Core Pulls: 2

Screw Speed: 145 rpm

Injection Volume: 2211 cm³

Injection Pressure: 1535 bar

Injection Rate: 476 cm³/s

Heating Zones: 5

Heating Capacity: 25.35 kW

Output Capacity: 250 kg/h

Oil Tank Capacity: 800 l

Other Specifications:

Includes dryer & Robot

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Voltage: 380 V Triphase
Frequency: 50 Hz
Voltage: 81 Kw
