Technical Specifications:
Clamping Force: 1700 ton
Mould Height (Max): 2500 mm
INJECTION UNIT 1: Shot Weight (Max): 7425 g
Screw Diameter: 135 mm
Screw L/D Ratio: 22
Injection Volume: 8160 cm³
INJECTION UNIT 2: Shot Weight (Max): 3785 g
Screw Diameter: 105 mm
Screw L/D Ratio: 22
Injection Volume: 4160 cm³
Distance Between Tie-Bars (H): 1850 mm
Distance Between Tie-Bars (V): 1415 mm
Platen Size (H): 2420 mm
Platen Size (V): 2170 mm
Mould Height (Max): 2500 mm
Daylight Between Platens (Max): 4300 mm
Opening Stroke (Max): 2850 mm
Type Of Clamp:Hydraulic
Dry Cycle (S): 5.2 s
Other Specifications:

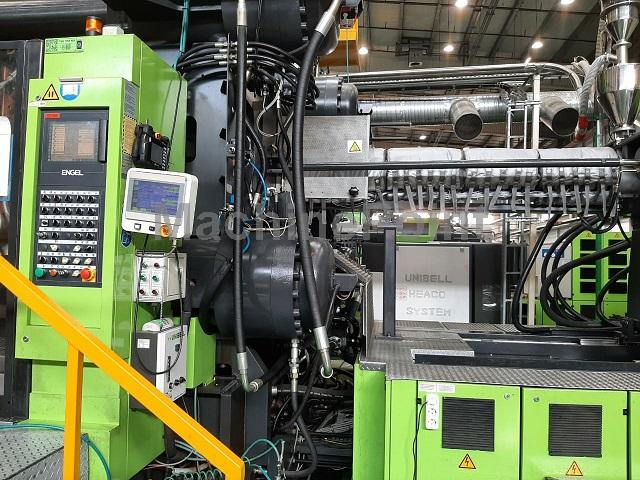

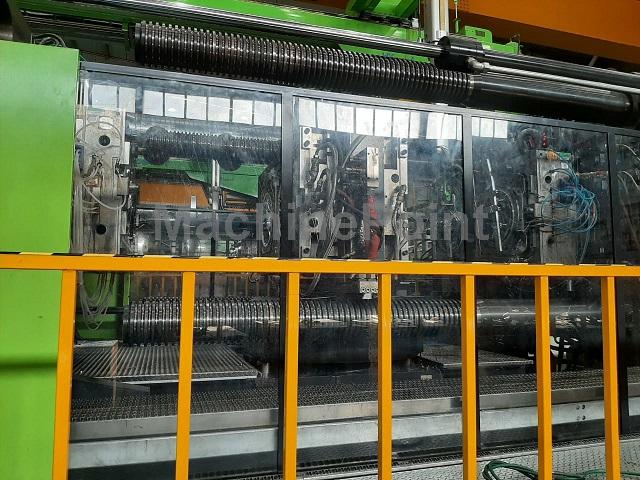

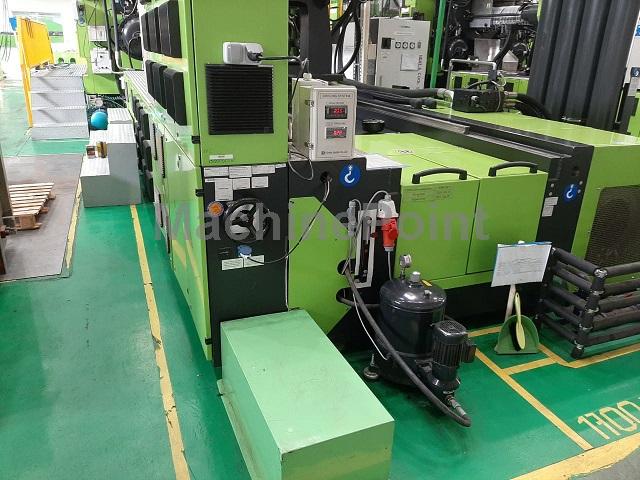

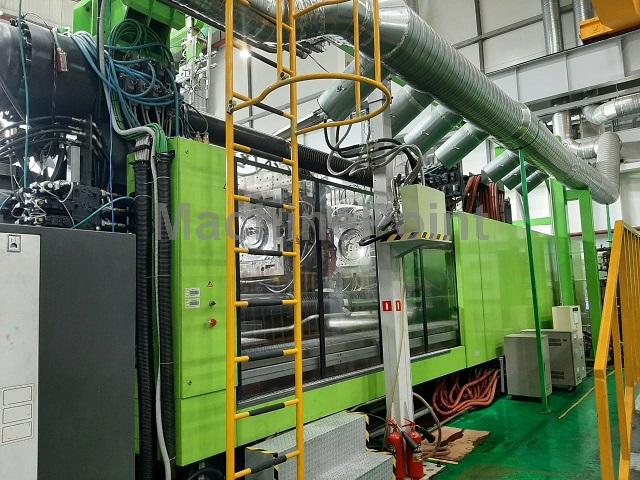

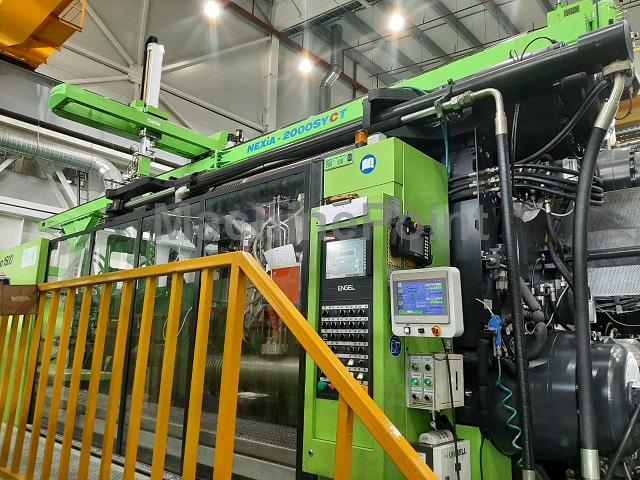

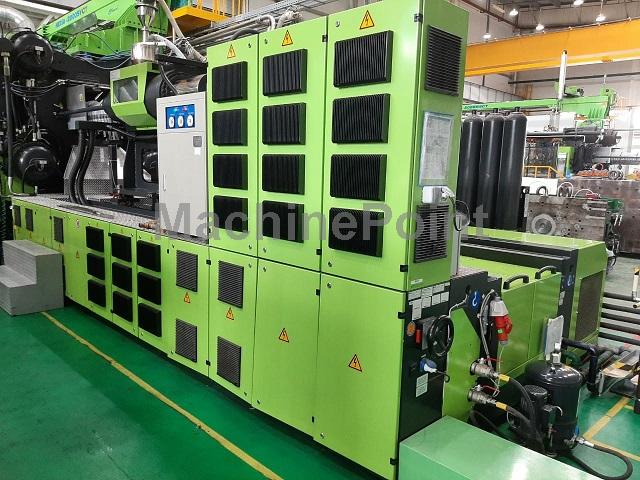

Engel DUO bi injection molding machine
Opening stroke(with pressure pad): 1230 kN
Opening force: 437 kN
Tie-Bar diameter: 265mm
Dry-Cycle (Euromap 6): 5.2sec
Dry-operation stroke: 1300mm
-Middle Platen
Opening stroke: 1475mm
Min distance Fixed platen-Middle Platen: 725mm
Max distance Fixed platen-Middle Platen: 2200mm
-Injection unit 1
Plasticizing capacity: 122 g/sec (HDPE)
Screw stroke: 480mm
Recovery rate(3 zones screw)94 g/sec (HDPE)
Injection Rate: 745 cm^3/s
Injection rate with increased injection pressure: 590 cm^3/s
Nozzle stroke: 950mm
Heating capacity: 76 kW
Nr of heating zones: 8
-Injection unit 2
Screw stroke: 570mm
Plasticizing capacity: 181 g/sec (HDPE)
Recovery rate (3 zone screw): 139 g/sec (HDPE)
Injection rate: 1255 cm^3/s
Injection rate with increased injection pressure: 915 g/sec (HDPE)
Nozzle stroke: 950mm
Heating capacity: 97 kW
Nr of heating zones: 7
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
