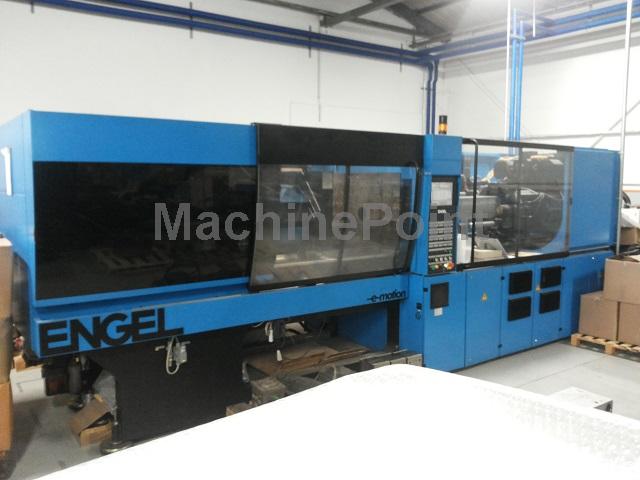

Used ENGEL E-motion 940/180 of 2005 for sale
2005 | Ref.: 300043799
Injection molding machine up to 250 T ENGEL, We provide a quality service in the buying and selling of used machinery, with all the services necessary to achieve a successful transaction.
Data Sheet of Used ENGEL E-motion 940/180
Ref.: 300043799
Year: 2005
Brand: ENGEL
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 180 ton
- Distance Between Tie-Bars (H): 650 mm
- Distance Between Tie-Bars (V): 650 mm
- Platen Size (H): 920 mm
- Platen Size (V): 920 mm
- Screw Diameter: 55 mm
- Control Type: Electronic
- Mould Height (Max): 710 mm
- Mould Height (Min): 250 mm
- Opening Stroke (Max): 178 mm
- Ejector Force: 3.77294998801833 ton
- Ejector Stroke: 150 mm
- Dry Cycle (S): 1.8 s
- Screw L/D Ratio: 20
- Screw Speed: 267 rpm
- Injection Volume: 522 cm³
- Injection Pressure: 1620 bar
- Injection Rate: 440 cm³/s
- Nozzle Force (Max): 5.09858106488964 ton
- Nozzle Stroke (Max): 400 mm
- Heating Capacity: 16.3 kW
- Orientation: Horizontal
Other Specifications:

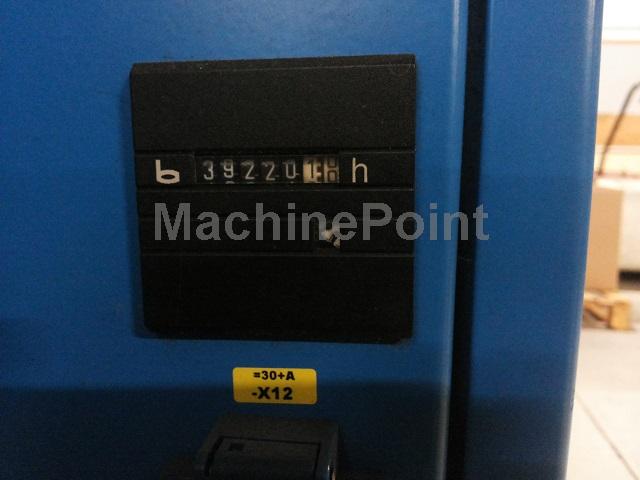

Working hours: 39.220
**NEW, PACKED, NEVER USED SPARE PARTS AVAILABLE(NOT INCLUDED, PRICE ON REQUEST)**
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
Frequency: 50 Hz
Full Electric
