Used ARBURG 221 K 350 - 100 of 2000 for sale

Injection molding machine up to 250 T ARBURG, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.

Data Sheet of Used ARBURG 221 K 350 - 100

Ref. : 300043824

Year: 2000


Status: For sale

Delivery time: Immediate

Technical Specifications:

Clamping Force: 35 ton

Shot Weight (Max): 41 g

Distance Between Tie-Bars (H): 221 mm

Distance Between Tie-Bars (V): 221 mm

Platen Size (H): 320 mm

Platen Size (V): 250 mm

Screw Diameter: 25 mm

Mould Height (Max): 300 mm

Mould Height (Min): 150 mm

Daylight Between Platens (Max): 500 mm

Opening Stroke (Max): 200 mm

Injection Volume: 49 cm³

Injection Pressure: 2000 bar

Other Specifications:

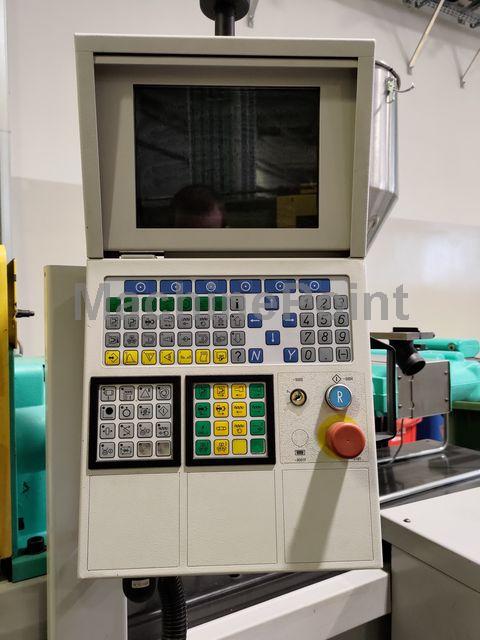

Type of control: Selogica
Closure System: Knee

hours worked 37 785 (February 2022)

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Voltage: 400 V Triphase
Frequency: 400 V Triphase
Voltage: 12 Kw
