Technical Specifications:
Clamping Force: 200 ton
Mould Height (Max): 760 mm
INJECTION UNIT 1: Shot Weight (Max): 148 g
Screw Diameter: 38 mm
Injection Volume: 163 cm³
INJECTION UNIT 2: Shot Weight (Max): 253 g
Screw Diameter: 45 mm
Injection Volume: 278 cm³
Distance Between Tie-Bars (H): 610 mm
Distance Between Tie-Bars (V): 610 mm
Platen Size (H): 870 mm
Platen Size (V): 870 mm
Mould Height (Max): 760 mm
Mould Height (Min): 280 mm
Opening Stroke (Max): 560 mm
Core Pulls:Yes
Number Of Core Pulls: 2
Other Specifications:

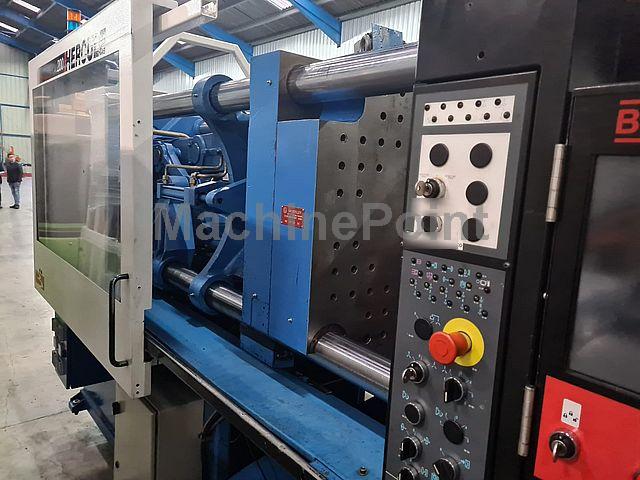

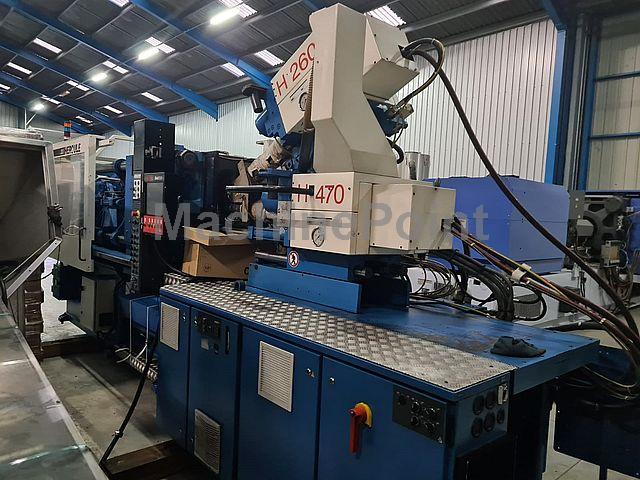

Machine : BILLION 200T Bi-injection
Type : Hercule 260/470-200
Year : 2001

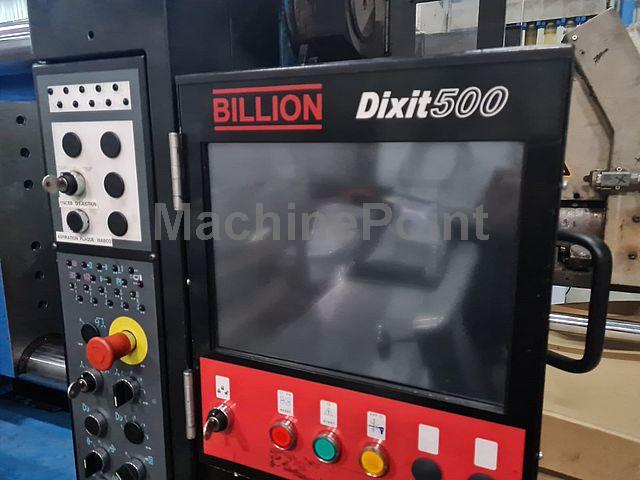

Controls : DIXIT500
Core pulls : 2
Interface for robot : YES
Air circuit : 1

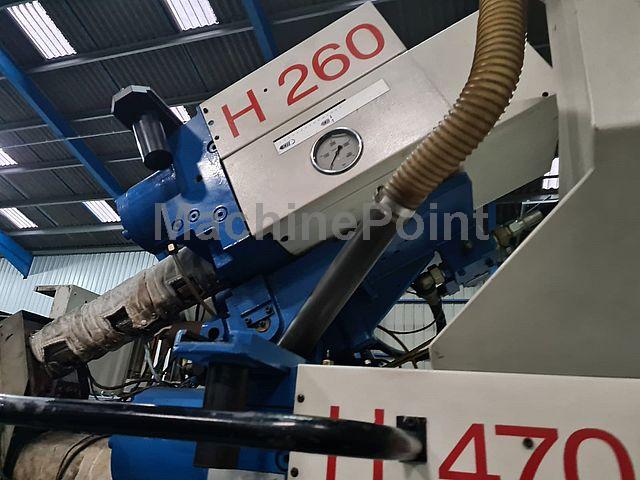

Screw diameter mm : H260-38 mm – H470-45 mm
Shot volume cm3 : H260- 163cm3 – H470- 278 CM3
Injection Pressure bar : H260 -1564 – H470- 1659
Center distance bettween nozzles mm : 100
Tie bar distance mm : 610 x 610
Platen sizes mm : 870 x 870
Opening Stroke mm : 560
Mould Height Mini-maxi mm : 280-760
Other Details:
Guarantee: Without guarantee
Current condition: Disconnected. Can't be seen in running condition
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 188 Kw
