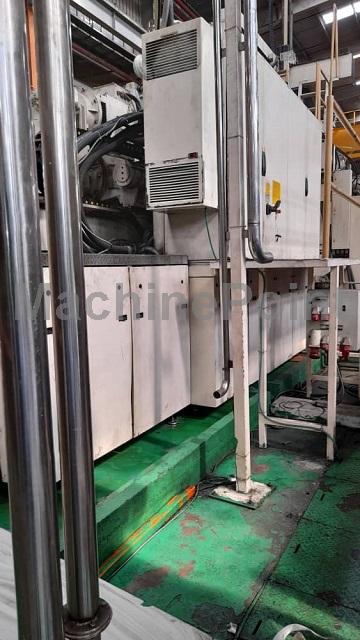

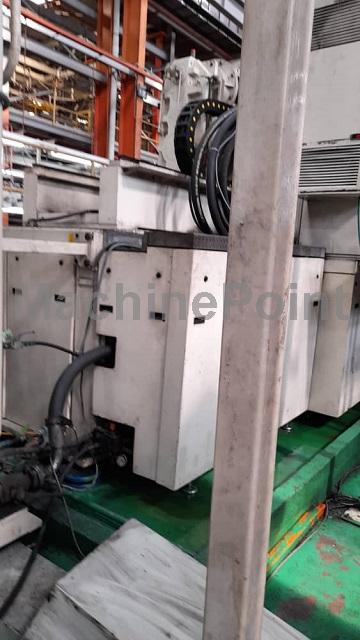

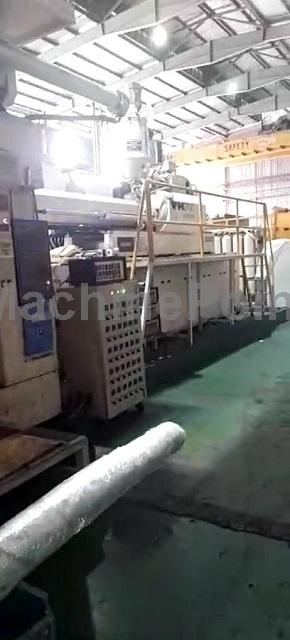

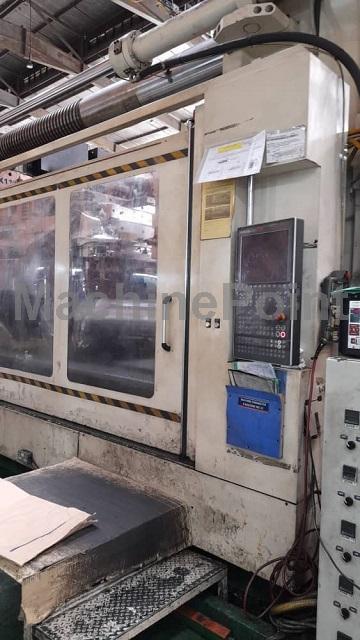

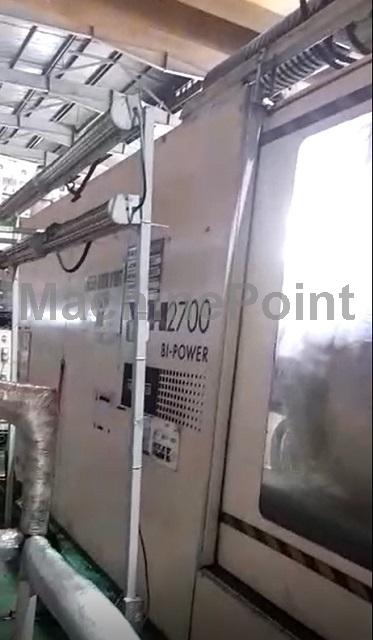

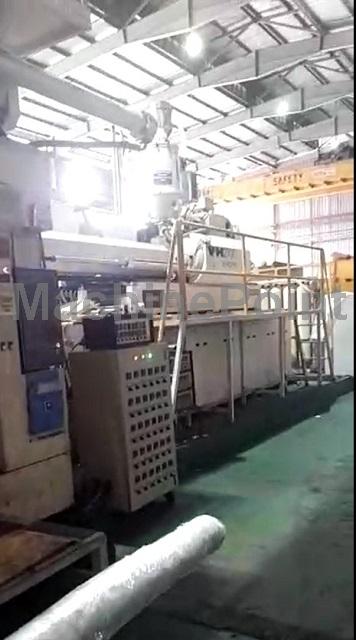

Used NEGRI BOSSI BI-POWER VH2700 of 2011 for sale

Injection molding machine from 1000 T NEGRI BOSSI, MachinePoint offers their clients all the services necessary to buy the machine: Transport, dismantling, and legal consultancy.

Data Sheet of Used NEGRI BOSSI BI-POWER VH2700

Ref. : 300043910

Year: 2011


Status: For sale

Delivery time: Immediate

Technical Specifications:

Clamping Force: 2700 ton

Shot Weight (Max): 12061 g

Distance Between Tie-Bars (H): 2000 mm

Distance Between Tie-Bars (V): 1600 mm

Platen Size (H): 3020 mm

Platen Size (V): 2620 mm

Screw Diameter: 150 mm

Tie-Bar Diameter: 340 mm

Mould Height (Max): 1900 mm

Mould Height (Min): 1000 mm

Opening Stroke (Max): 2100 mm

Ejector Force: 71.380134908455 ton

Dry Cycle (S): 12 s

Screw L/D Ratio: 23

Screw Speed: 100 rpm

Screw Torque: 15500 N·m

Injection Volume: 13254 cm³

Injection Pressure: 1670 bar

Injection Rate: 1414 cm³/s

Nozzle Force (Max): 19.3746080465806 ton

Plasticising Capacity: 230 g/s

Heating Capacity: 138 kW

Oil Tank Capacity: 2350 l


Other Specifications:

Euromap 2700H/22500

-Injection capacity HDPE: 9543g
-Plasticising capacity HDPE: 180g/s
-Opening force: 1100 Kn
-Max mold weight: 60ton.

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Frequency: 50 Hz
Voltage: 456 Kw
