Technical Specifications:
Clamping Force: 1000 ton
Shot Weight (Max): 6995 g
Distance Between Tie-Bars (H): 1550 mm
Distance Between Tie-Bars (V): 1320 mm
Platen Size (H): 2070 mm
Platen Size (V): 1840 mm
Screw Diameter: 125 mm
Tie-Bar Diameter: 240 mm
Mould Height (Max): 1300 mm
Mould Height (Min): 600 mm
Daylight Between Platens (Max): 2600 mm
Clamping Speed: 1700 mm/s
Opening Stroke (Max): 2000 mm
Ejector Stroke: 250 mm
Core Pulls:No
Dry Cycle (S): 4.1 s
Injection Volume: 7363 cm³
Injection Pressure: 1870 bar
Injection Rate: 5259 cm³/s
Nozzle Stroke (Max): 950 mm
Plasticising Capacity: 306 g/s
Heating Zones: 8
Heating Capacity: 101 kW
Oil Tank Capacity: 2250 l
Other Specifications:

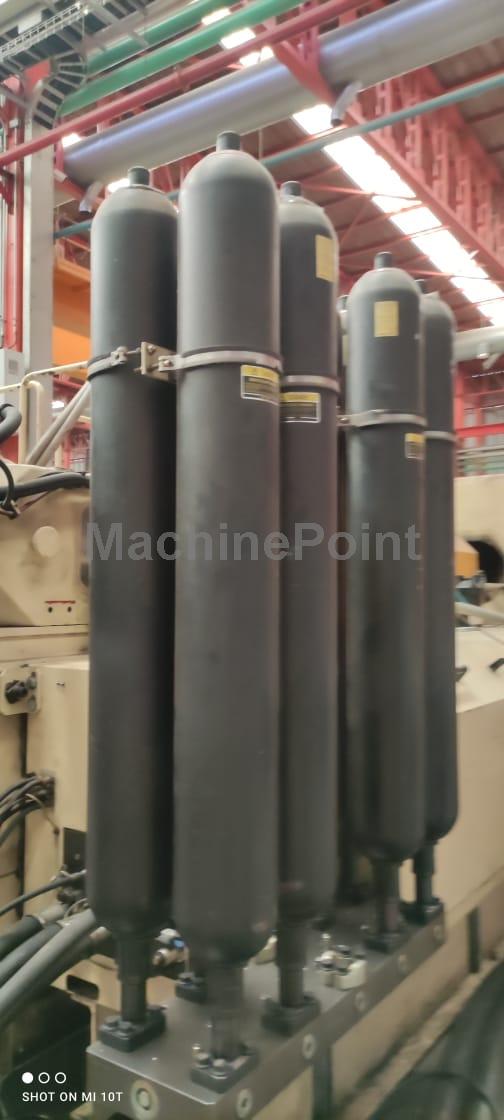

Accumulators

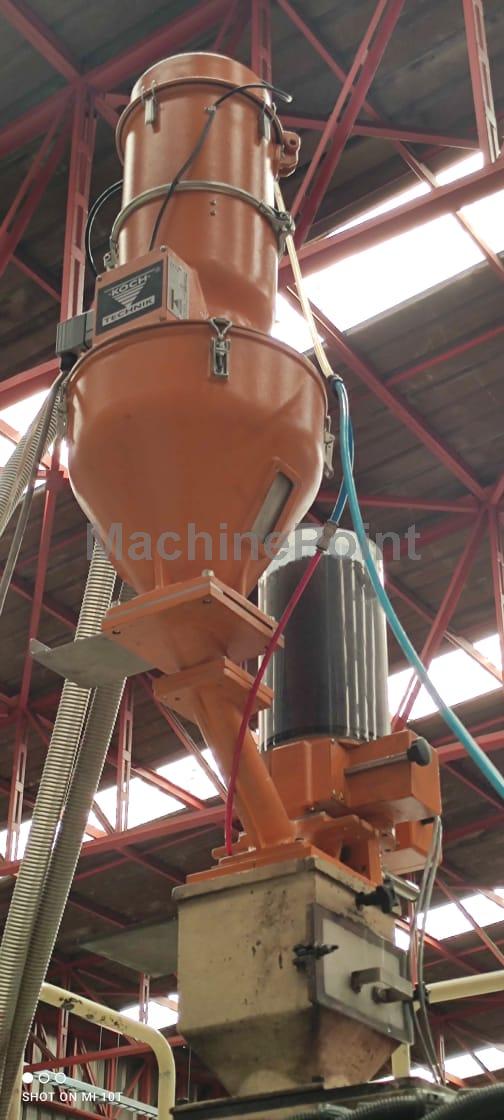

Koch dosing unit
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 516 Kw
