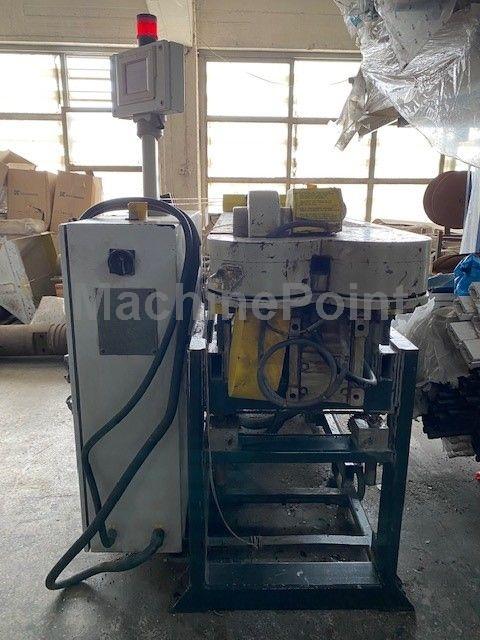

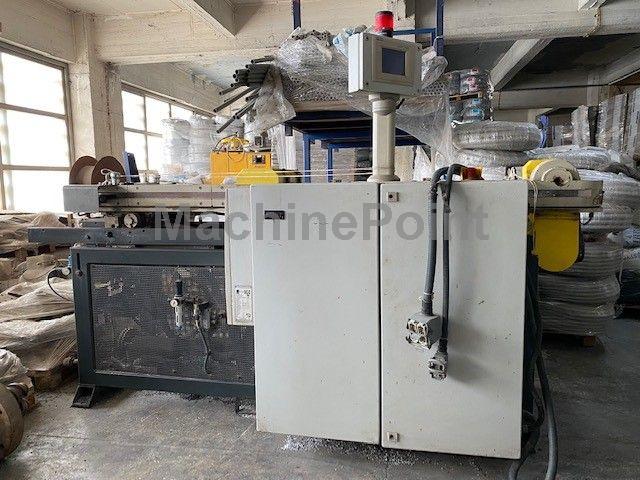

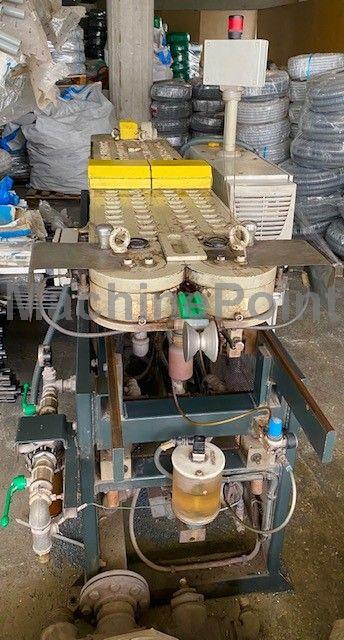

Used FRÄNKISCHE ROHRWERKE FMC 20–90V of 2006 for sale

*to be sold without tools suitable die head available (ask for price) appropriate mould jaws and nozzle sets with the specifications required by the customer (ask for price) suitable for pipes up to 315 mm Max. Product diameter: 315 mm Number of mould blocks: 36 Electric: 3 x 400V 50 Hz + N + PE Extrusion height: 1100 mm Operating hours: 450 h / only mechanical Condition: very good, never used in the production, only for mechanical demonstration.

2 pipe slotting machines available Machine 1: 60, 65, 80, 100 mm Machine 2: 50, 60, 65 mm

Slotting machine Fränkische HLV 50-160 included (1987, refurbished 2011)

Line Fränkische FDC 160-60 Combination extruders Weber NE5 + Weber NE7 1 set 110 molds 1 full die set Corrugator FDC 160-60 Driven 48000h model 1998 In production, can be sold everything together, or separately (extruders, corrugator)

Complete line for the extrusion of twin-wall corrugated pipes Hours worked: 12.400 h 1. Corrugator Frankische FDC 800 - 36 V - tooling ID 150, 200, 250, 300, 400, 500, 600 (SN8, SN10) - year 2003 - first owner 2. 2 x extruders Battenfeld 1 x Bex 1-90-30-B - year 2003 - weight 4800 kg - hours worked 12260 - motor power 200 kW - 370 kVA - equipped in gravimetric scale iNOEX - 3 components 1 x Battenfeld BEX 1-75-30 - year 2003 - hours worked 12369 h - weight 3400 kg - motor power 151 kW - Total power required 277 kVA - equipped in gravimetric scale iNOEX - 3 components Both extruders controlled from one control panel, with total output 1500 kg/h 3. DIE HEAD Frankische - Coextrusion die head CDH with complete tooling for diam. 150, 200, 250, 400, 500, 600 mm 4. SAW for tubes 150-600 - SICA Spa - year 2003 - weight 3400 kg 5.Belling machine SICA BA/2F/UR/CPE 8 - year 2007 - motor power 104 kW - weight 20500 kg - for diam. 400, 500, 600 6. Mold for fittings 150 and 200 mm - Tooling Holland - year 2004 - weight 2800 kg - mold dimension 710 mm - equipped with inserts and cores for couplings, joints, reductions PE/PP PVC for diam.150 and 200 7. Mold for fittings 250 and 300 - Tooling Holland - year 2004 - weight 5100 kg - mold dimension 840 mm - equipped with inserts and cores for couplings, joints, reductions PE/PP PVC for diam.250 and 300 8. Injection molding machine Battenfeld BK-T 6500/6300 - year 1993 9. Mold for rubber seals DN150 and 200
