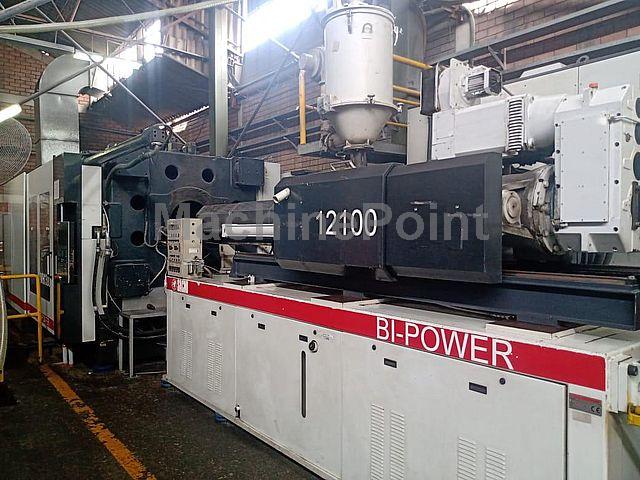

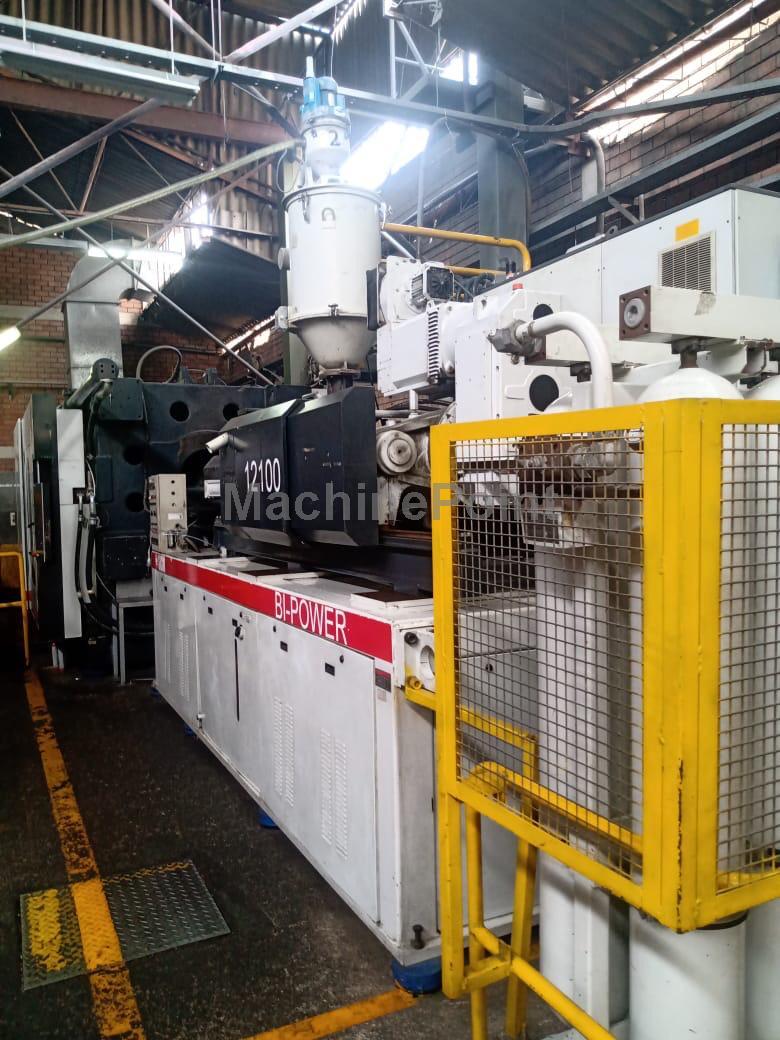

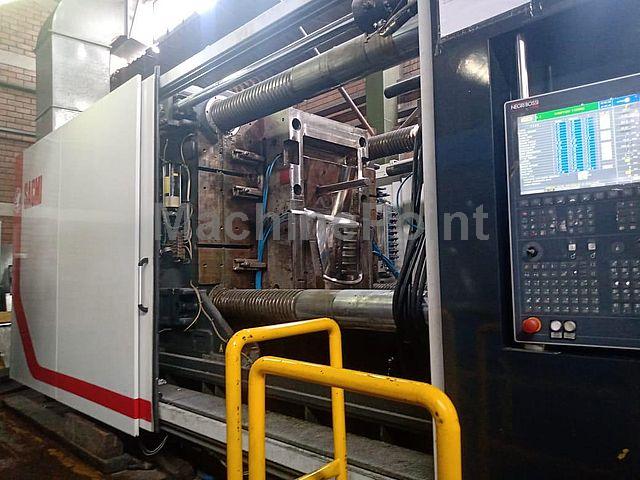

Used SACMI NEGRI-BOSSI Bi-power VH1300/12100 B of 2014 for sale

2014 | Ref.: 300044518

Injection molding machine from 1000 T SACMI, The team at MachinePoint will accompany you through the whole process of buying the machine.


Data Sheet of Used SACMI NEGRI-BOSSI Bi-power VH1300/12100 B

Ref.: 300044518

Year: 2014

Brand: SACMI

Status:
For sale

Delivery time: Immediate


Ask for machine price Want to sell your machine?
Please accept marketing-cookies to watch this video.

Technical Specifications:


  • Clamping Force: 1300 ton
  • Shot Weight (Max): 6689 g
  • Distance Between Tie-Bars (H): 1400 mm
  • Distance Between Tie-Bars (V): 1200 mm
  • Platen Size (H): 2070 mm
  • Platen Size (V): 1870 mm
  • Screw Diameter: 120 mm
  • Control Type: Electronic
  • Tie-Bar Diameter: 220 mm
  • Mould Thickness (Max): 1200 mm
  • Mould Thickness (Min): 600 mm
  • Daylight Between Platens (Max): 2600 mm
  • Opening Stroke (Max): 1400 mm
  • Ejector Force: 21.4140404725365 ton
  • Ejector Stroke: 300 mm
  • Dry Cycle (S): 10 s
  • Screw Torque: 7300 N·m
  • Injection Volume: 7351 cm³
  • Injection Pressure: 1650 bar
  • Injection Rate: 1150 cm³/s
  • Nozzle Force (Max): 19.3746080465806 ton
  • Plasticising Capacity: 145 g/s
  • Heating Capacity: 55 kW
  • Oil Tank Capacity: 900 l

Other Details:


Guarantee: Without guarantee

Current condition: Dismantled. Can't be seen in running condition

Availability: Immediate

Voltage: 400 V Triphase
Frequency: 60 Hz
Voltage: 259 Kw

MachinePoint's services:
