Technical Specifications:
Clamping Force: 150 ton
Shot Weight (Max): 150 g
Distance Between Tie-Bars (H): 500 mm
Distance Between Tie-Bars (V): 500 mm

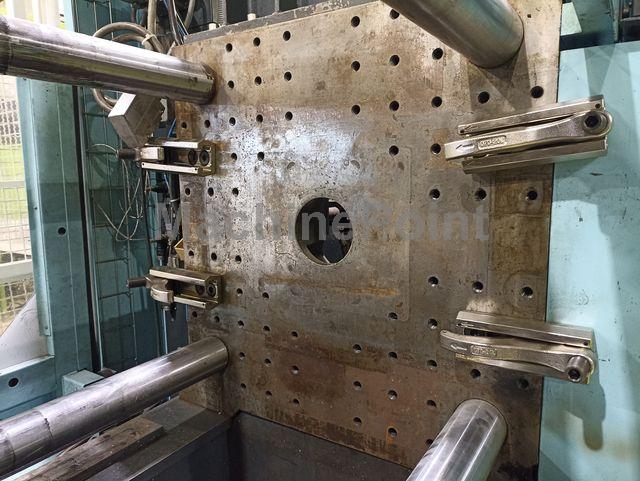

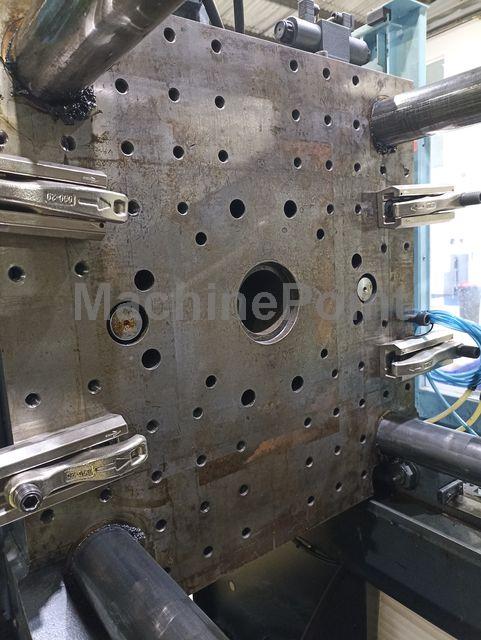

Platen Size (H): 750 mm
Platen Size (V): 750 mm
Screw Diameter: 35 mm
Tie-Bar Diameter: 80 mm
Mould Height (Max): 560 mm
Mould Height (Min): 250 mm
Opening Stroke (Max): 500 mm
Ejector Force: 5.9 ton
Ejector Stroke: 160 mm
Type Of Clamp:Toggle Electric
Core Pulls:Yes
Number Of Core Pulls: 1
Screw L/D Ratio: 20
Injection Volume: 168 cm³
Injection Pressure: 2422 bar
Nozzle Stroke (Max): 300 mm
Plasticising Capacity: 23 g/s
Heating Capacity: 9.4 kW
Other Specifications:
Hybrid machine
Working hours: 74500 (16.11.2022)
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
