Used JWELL JWZ - BM 30D of 2021 for sale

2021 | Ref.: 300044714

Extrusion Blow Moulding machines from 10 L JWELL, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.

Data Sheet of Used JWELL JWZ - BM 30D

Ref.: 300044714

Year: 2021

Brand: JWELL

Status:
For sale

Delivery time: > 3 months

Ask for machine price Want to sell your machine?

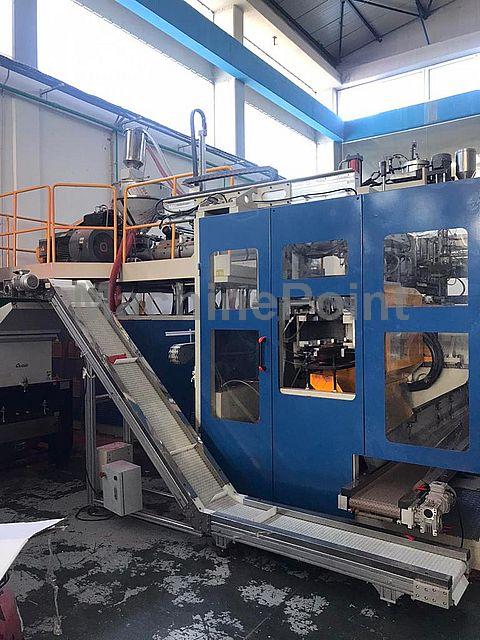

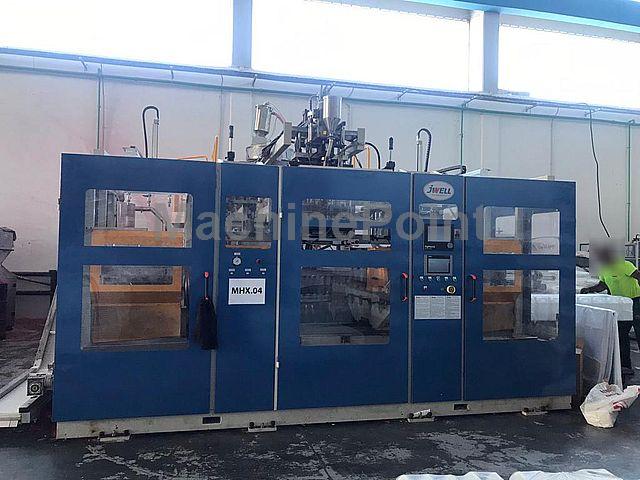

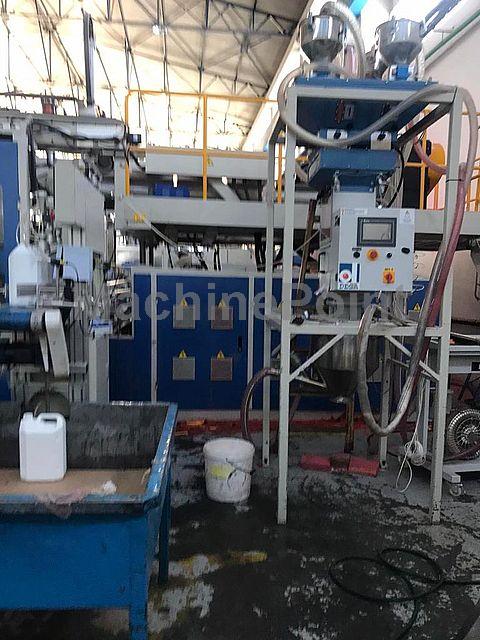

JWELL - JWZ - BM 30D - Used machine
JWELL - JWZ - BM 30D - Used machine
JWELL - JWZ - BM 30D - Used machine

Technical Specifications:

  • Container Size With Actual Configuration: 4 l
  • Number Of Heads: 3
  • Material Type: PE
  • Number Of Stations: 2
  • Output Capacity U/H Or Kg/H: U/h 550
  • Extruder Type: Continuous
  • Number Of Extruders: 2
  • Wall Thickness Control: Yes
  • Center Distance: 240 mm

Other Specifications:

Mould platen sizes: 810X400 mm
Opening stroke: 500 mm
Clamping force: 10 ton

Main extruder 130 mm diameter
View strip extruder 50 mm
Wall thickness control
Automatic deflashing
Leak tester

Conveyors for material transport
Grinder

Average consumption 60 kW

1 mold included in the price (2 available, for 2 and 4 liter oil jerrycan)

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: > 3 months

Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 140 Kw
