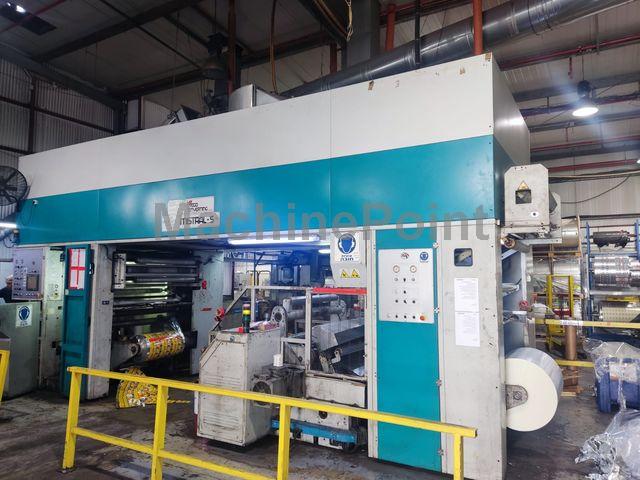

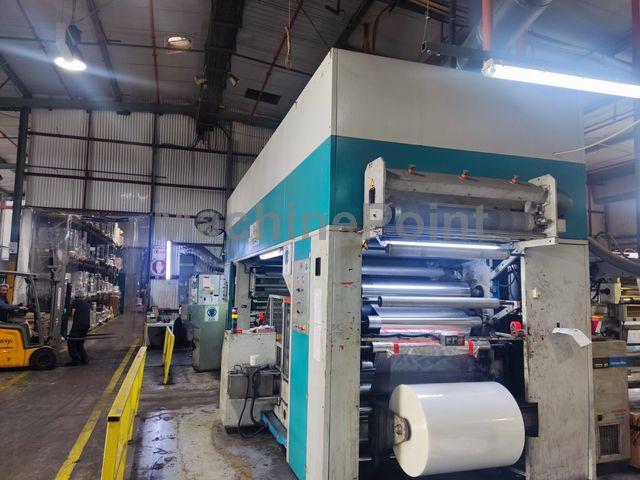

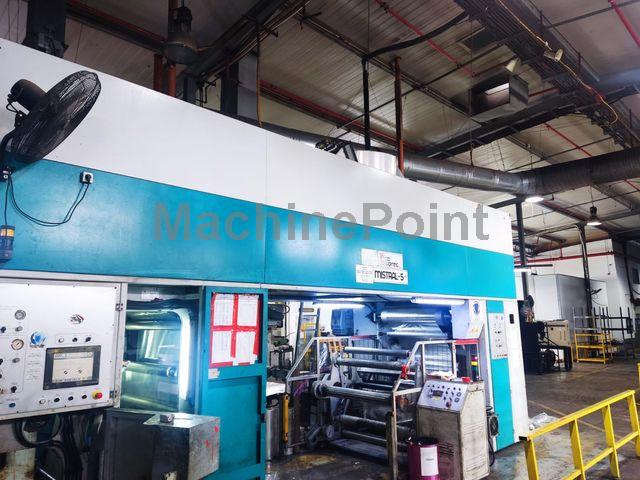

Used UTECO Mistral 110 of 2004 for sale

Laminators UTECO, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.

Data Sheet of Used UTECO Mistral 110

Ref. : 300044767

Year: 2004

Brand: UTECO

Status: For sale

Delivery time: > 3 months

Ask for machine price »

Want to sell your machine? »

Technical Specifications:

Type Of Laminator:Solvent and Solventless

Working Width: 1150 mm

Unwinder Diameter: 1000 mm

Rewinder Diameter: 1000 mm

Drying System:Gas

Mechanical Speed: 350 m/min

Other Specifications:

Earliest pick up Mid 2023 when new machines arrives

Min Film width: 50% of max film width
Coating max width: 1100mm

Materials to be coated:
PET 8-25 microns
BOPET: 8-25 microns
PP: 15-60 microns
BOPP: 12-20 microns
PA and Cast PP 20-40 microns
Paper: 40-120 g/m2

Tension of coating: 3,5 + 45Kgs

Materials to be laminated:
PE: 30-280 microns
ALU: 6-20 microns
CPP 20-200 microns
Cast PA 20-80 microns
BOPA: 12-25 microns
Paper: 40-120 gr/m2

Tension at lamination: 2,5 + 32 Kgs
Tension at rewinder: 4 + 48Kgs

Adhesives:
Solvent base 0,2 + 6gm
solventless: 0,8 + 4gr
Primers and lacquers

Solvent and Solventless Trolley
Vetaphone Corona Plus Unit

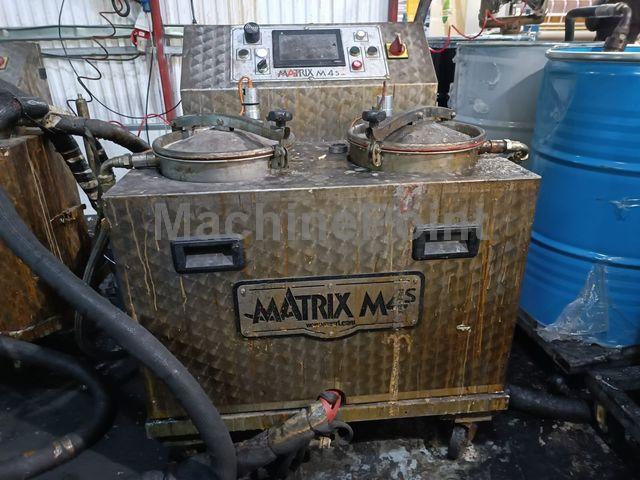

Bi-component Solventless Mixer Matrix M4 S from VEA
Solvent Mixer 3/5 - 50 from Vea
