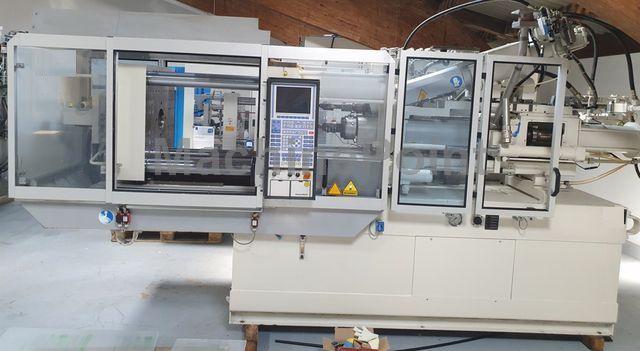

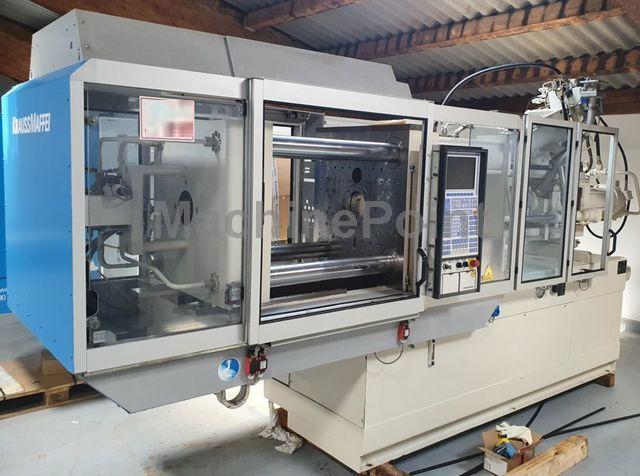

Used KRAUSS MAFFEI KM 150/700/160 CZ of 2005 for sale

Injection molding machine up to 250 T KRAUSS MAFFEI, We will be by your side all along the process of buying your machinery, from the initial assessment, accompanying you in the visits, legal and technical consultancy, and defined contracts that will protect you.

Data Sheet of Used KRAUSS MAFFEI KM 150/700/160 CZ

Ref. : 300044852

Year: 2005


Status: For sale

Delivery time: Immediate

Technical Specifications:

Clamping Force: 150 ton

Shot Weight (Max): 343 g

Distance Between Tie-Bars (H): 500 mm

Distance Between Tie-Bars (V): 500 mm

Platen Size (H): 780 mm

Platen Size (V): 790 mm

Screw Diameter: 50 mm

Mould Height (Min): 300 mm

Daylight Between Platens (Max): 900 mm

Opening Stroke (Max): 600 mm

Ejector Stroke: 150 mm

Screw L/D Ratio: 20

Injection Volume: 377 cm³

Injection Pressure: 1892 bar

Injection Rate: 181 cm³/s

Heating Zones: 5

Heating Capacity: 16 kW

Oil Tank Capacity: 345 l

Other Specifications:

Working hours: 38 000

Other Details:

Guarantee: Without guarantee

Current condition: Not running. Can be shown in dry cycle

Availability: Immediate
