Used VIDEOJET, V-SHAPES PRIME of 2021 for sale

2021 | Ref.: 300045167

Chemical filling lines VIDEOJET, V-SHAPES, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.


Ref.: 300045167

Year: 2021


For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?
Please accept marketing-cookies to watch this video.

Technical Specifications:

    Other Specifications:

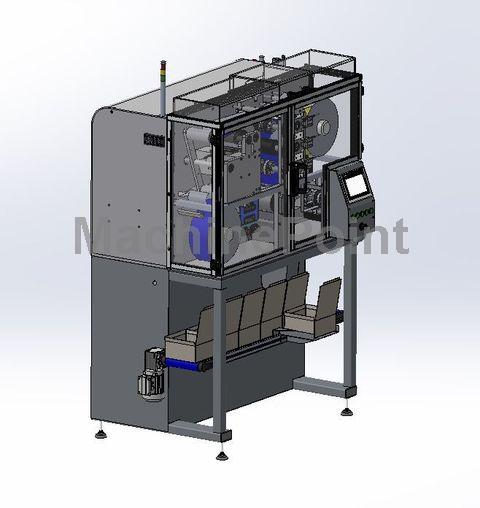

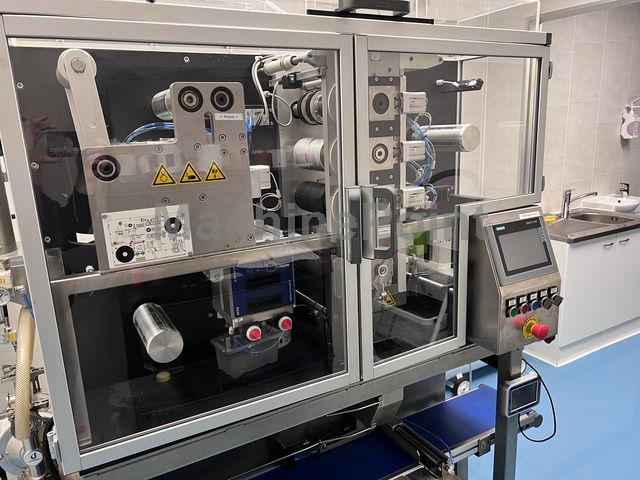

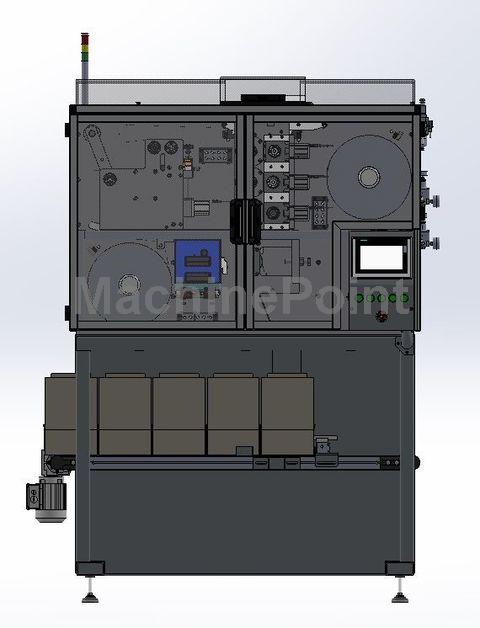

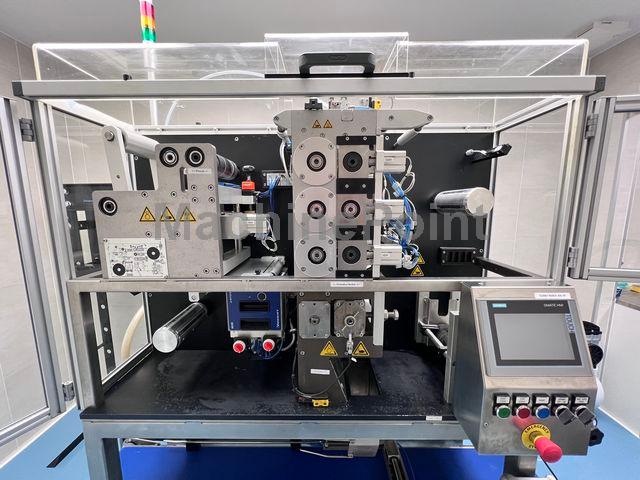

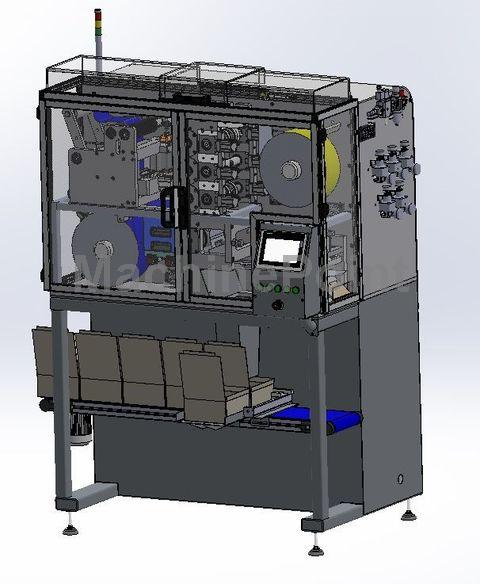

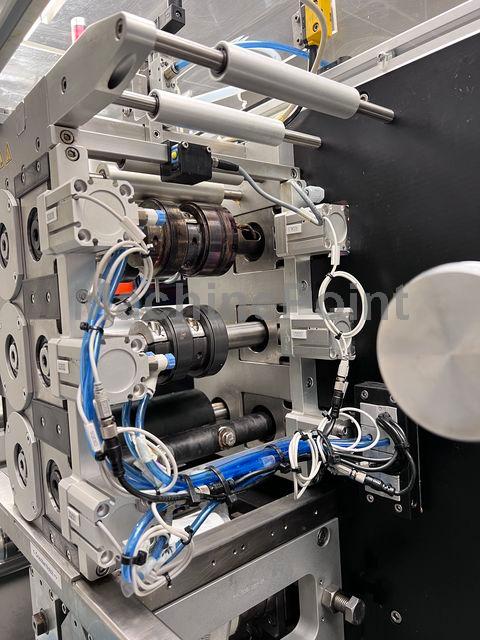

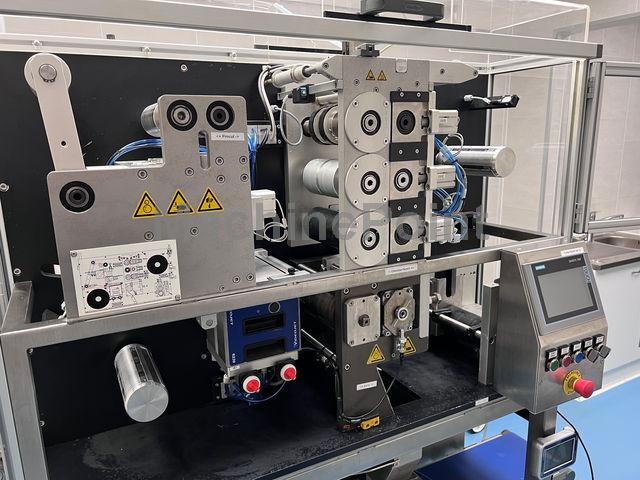

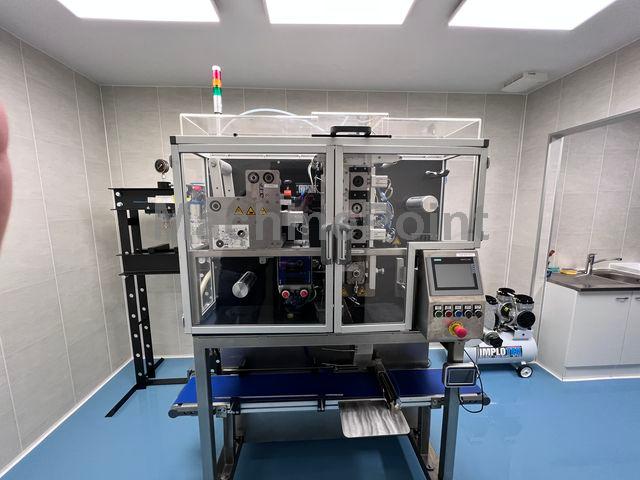

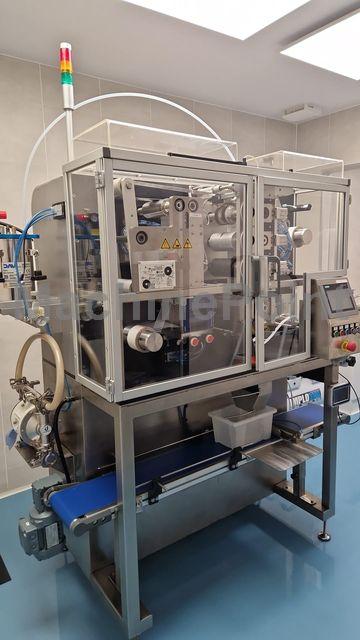

    1x Automatic V-Shapes packaging machine
    Model: Prime

    Main prime parameters:

    Production capacity: up to 45 units/minute
    Average production: up to 2.100 unit per hour
    Time for packet size change: 15 minutes
    Number of packaging lines: 1
    Maximum dimensions of film reels: Width 110mm/ 4.33 ” Diameter 250 mm
    Weight of film reels: 20 kg / 44.09 lb
    Filling volumes from 0,5 to 30 ml. Different packet sizes available
    Film reel consumption: up to 2625 mm /min
    Standard weld dimensions: 5 mm(± 1 mm)
    Machine colour: Steel
    Electronic parts: Standard IP55, IP67 on request

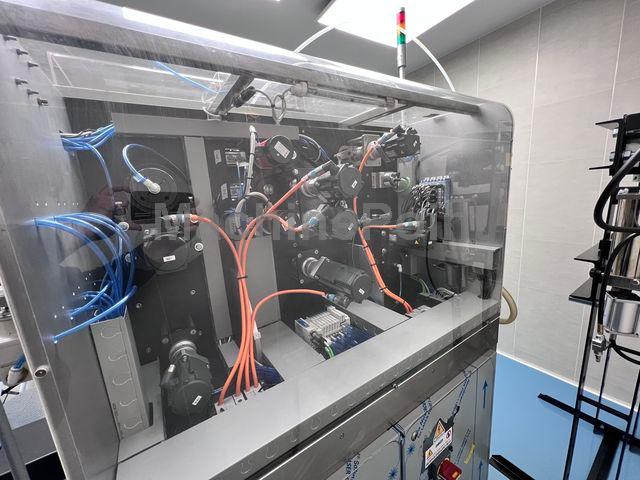

    Standard electronics: PLC 6 brushless motors

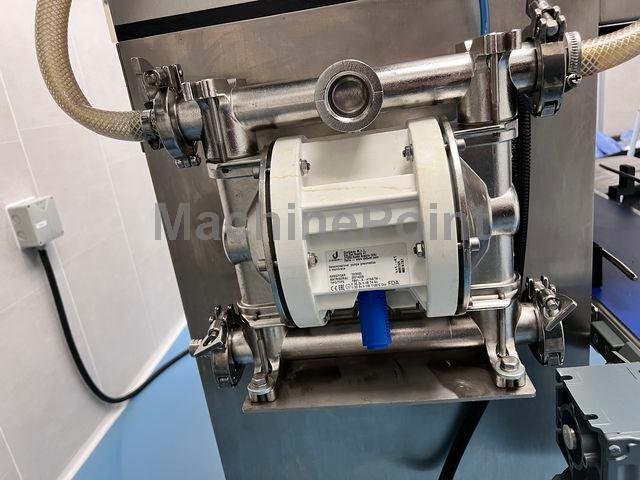

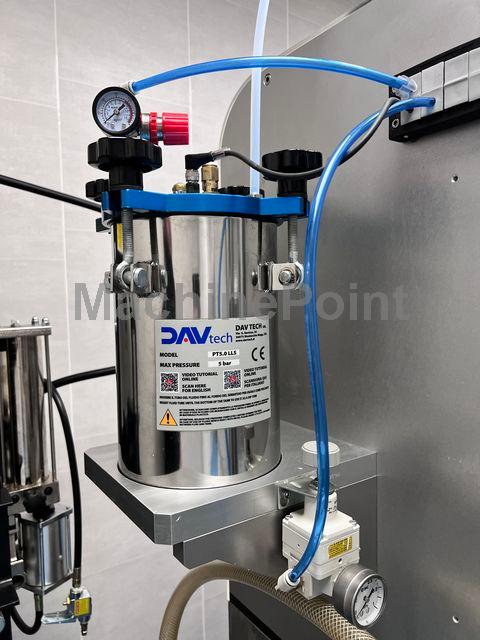

    *Pneumatic dosage system: volumetric to measure
    Dimensions of V-Shapes packets: Height from 50 to 100mm/1.969” to 3.937”; Width: from 40 to 100mm/1.575” to 3.937”

    Air Pressure: 7 bar
    Electric power: 20 Kwh
    Weight (maximum): 1000 kg / 6612lb
    Machine Footprint: 1500mm x 1000mm x 1000mm (H)

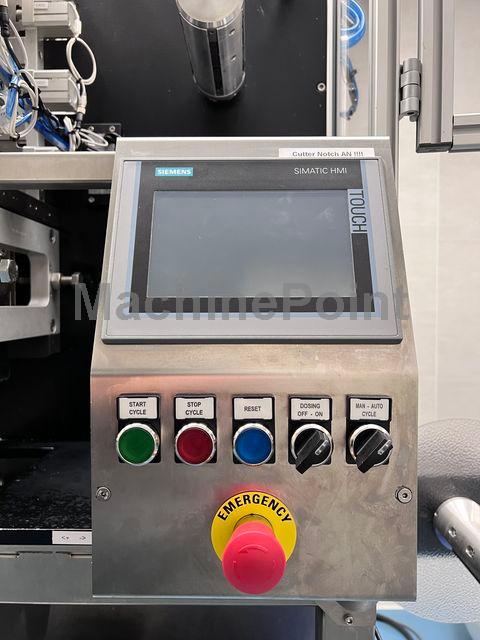

    Operator control panel: touchscreen 7 ” (HMI)
    Integrated management of production recipes
    PLC automation technology: Siemens S7 1500TF

    Adaptable for any sector: pharmaceuticals, cosmetics, foods, chemicals

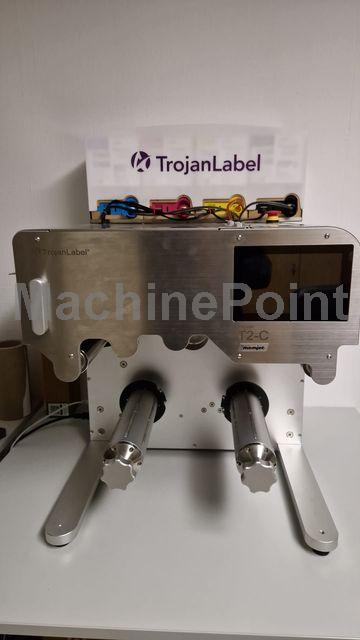

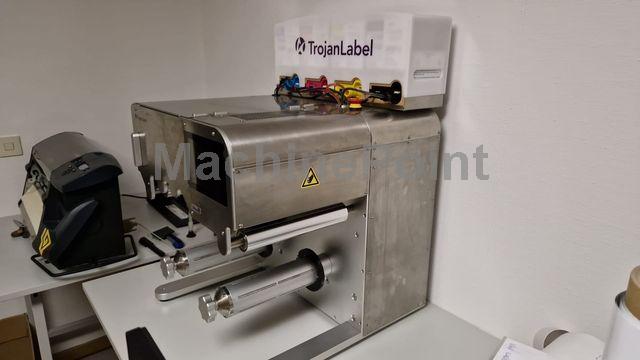

    1x TrojanLabel printer
    Model: T2-C

    Ink Type: high performance water-based dye ink Four 2-liter tanks CMYK

    Print resolution: 1500 x 1600 dpi or 1600 x 800 dpi

    Print Speed: 6 ips (152 mm/sec) or 12 ips (300 mm/sec)

    Print Area:
    Width: 8.8'' (223mm)
    Lenght without stitching: 0.6'' - 30'' (15mm-762mm)
    Lenght with stitching: unlimited

    Media Sensors: Adjustable Optical Tracking Edge Sensor supporting Gap, Reflective mark and Continuous media.

    Connectivity: Ethernet 10/100/1000

    Driver: Microsoft Windows 10, 8, 7; Windows Sercer 2012, 2008, 64/32-bit drivers

    Software: TrojanControl Software, Microsoft Windows 10, 8, 7; Windows Server 2012, 2008, 64/32-bit Drivers

    RIP Software: Trojan RIP or Wasatch SoftRIP software; option available

    Slitting Station:
    3x Slitter blades included by default, up to 7 slittler blades may be installed and used.
    Slitting not allowed for continuous material.
    Cardboard cores with measuring (label width + edge trim) should be ordered.

    Other Details:

    Guarantee: Without guarantee

    Current condition: In Production

    Availability: Immediate

    Voltage: 380 V Triphase
    Frequency: 380 V Triphase
    Voltage: 20 Kw
