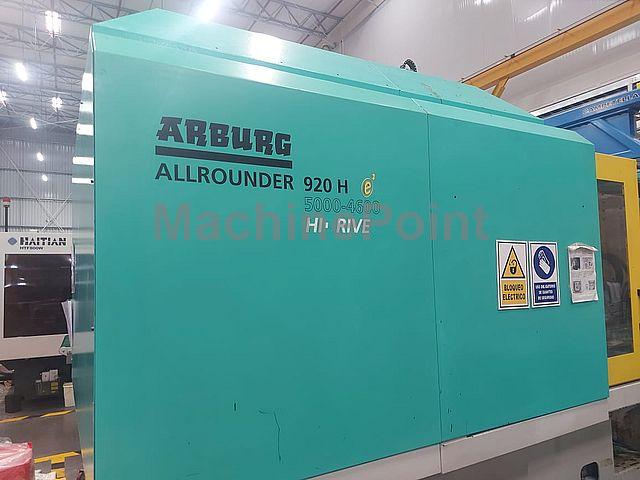

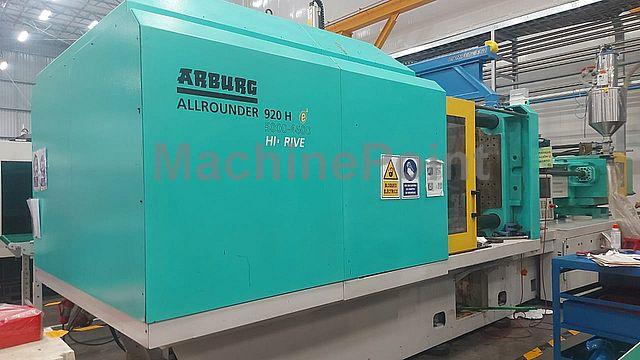

Used Injection molding machine from 500 T up to 1000 T: ARBURG Hi-Drive 920 H 5000-4600 of 2014

Data Sheet of Used ARBURG Hi-Drive 920 H 5000-4600

Ref.: 300045279

Brand: ARBURG

Year: 2014

---

• Clamping Force: 500 ton
• Shot Weight (Max): 2092 g
• Distance Between Tie-Bars (H): 920 mm
• Distance Between Tie-Bars (V): 920 mm
• Platen Size (H): 1280 mm
• Platen Size (V): 1280 mm
• Screw Diameter: 90 mm

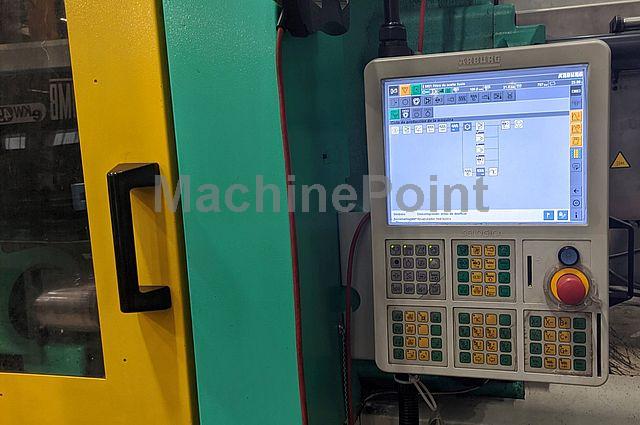

• Control Type: Electronic
• Mould Height (Max): 1050 mm
• Mould Height (Min): 400 mm
• Daylight Between Platens (Max): 1950 mm
• Opening Stroke (Max): 900 mm
• Ejector Stroke: 250 mm
• Core Pulls: Yes
• Dry Cycle (S): 2.5 s
• Screw L/D Ratio: 20
• Screw Torque: 4950 N·m
• Injection Volume: 2290 cm³
• Injection Pressure: 2000 bar
• Injection Rate: 1590 cm³/s
• Nozzle Force (Max): 11 ton
• Nozzle Stroke (Max): 600 mm
• Heating Zones: 9
• Heating Capacity: 51.4 kW
• Output Capacity: 290 kg/h
• Oil Tank Capacity: 570 l

Other Specifications:

Hybrid machine
