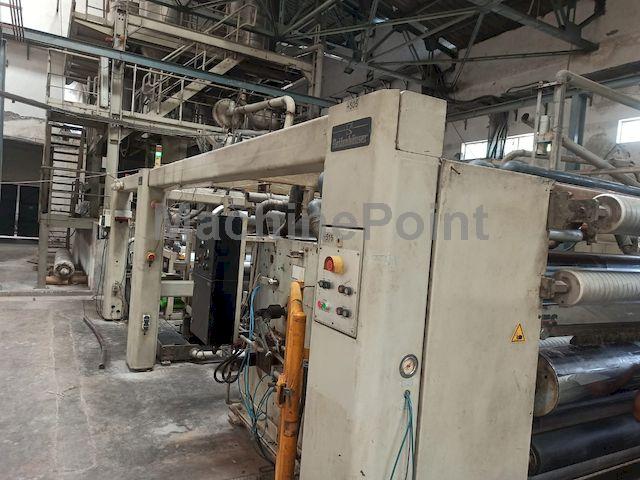

Used Cast coextrusion lines: REIFENHÄUSER REGLERSCHRANK of 1998
Similar Products:
WINDMÖLLER & HÖLSCHER CPP
Cast coextrusion lines
Ref: 300045976
WINDMÖLLER & HÖLSCHER
More information
WINDMÖLLER & HÖLSCHER Filmex
Cast coextrusion lines
Ref: 300038059
WINDMÖLLER & HÖLSCHER
More information
FONG KEE IRON WORKS TCF – 65/100/65-1800
Cast coextrusion lines
Ref: 300044577
FONG KEE IRON WORKS
More information
BRÜCKNER Mono oriented PET-G and PVC
Shrink extrusion line
Ref: 300044579
BRÜCKNER
More information
Data Sheet of Used REIFENHAUSER REGLERSCHRANK
Ref.: 300045445
Brand: REIFENHAUSER
Year: 1998
Other Specifications:
Number of layers: 3 but feedblock capable to do 5 layer
Film structure: Material: CPP, STRETCH, BARRIER FILM, PA ,PE, EVOH in different combination.

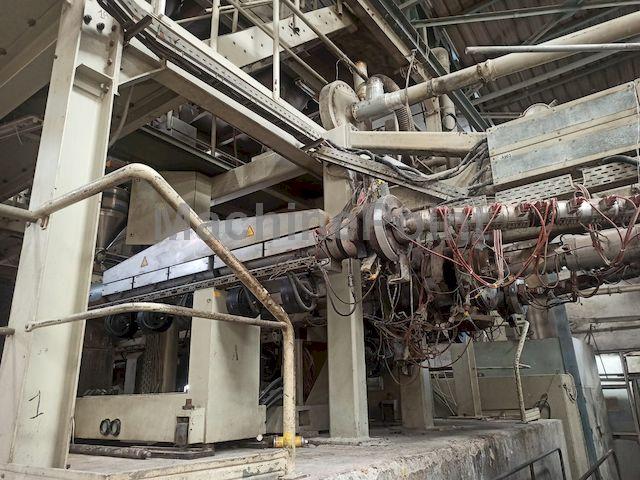

Extruder 1 Layer ref: Screw diam: 180mm
Extruder 2 Layer ref: Screw diam: 90mm
Extruder 3 Layer ref: Screw diam: 90mm
Automatic Die Head from Reifenhauser 3500mm width

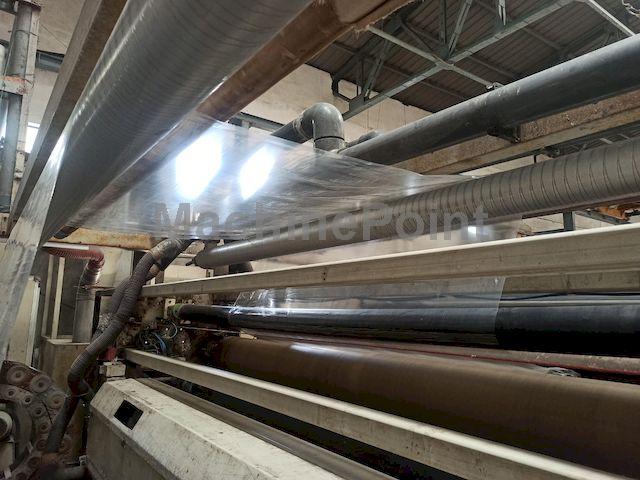

Chill roll unit
Cast Roll Diam. 1000mm, Spare Cast roll available

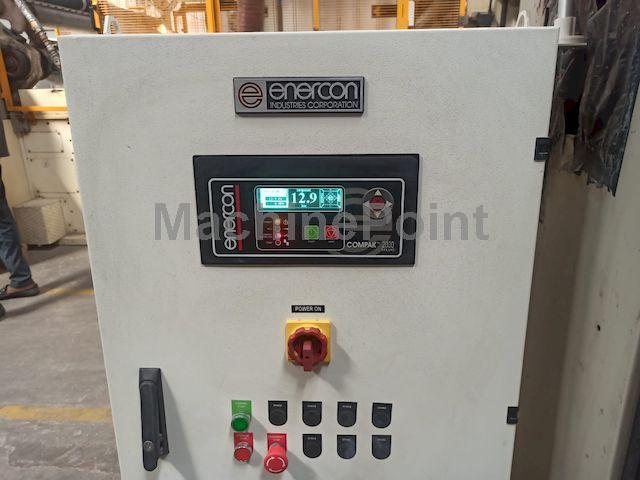

2 corona treatment units: 1 unit Enercon 12 KW, 2nd unit AFS 25KW 2 Panels (Panel needs repairing - new generator)
max reel diam. 800 mm

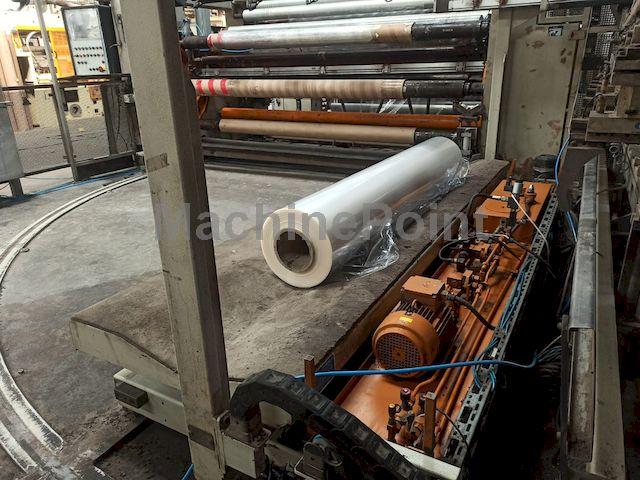

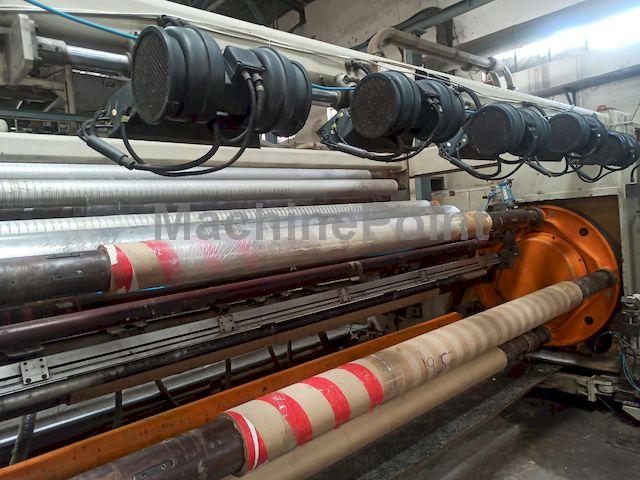

Automatic Turret type Rewinder up to 900mm Roll Diam.
REFURBISHED IN 2010 AND 2017 : New Auto thermal bolts installed from Reifenhauser, New Automatic thickness control unit installed.
Additional Information:
5 Silos for 5 tons capacity each, for Material Storage
Air knife and Vacuum Box
E+L Oscillation control system
2 Trim Grinding units
Online Trim Recycling system from Aertecnica Croci
Roll Removal System
Extruder Motors from Baumuller
extruder drive from Siemens
Line Motors and Drives from Baumuller, Siemens S7 PLC system, S5 on the winder

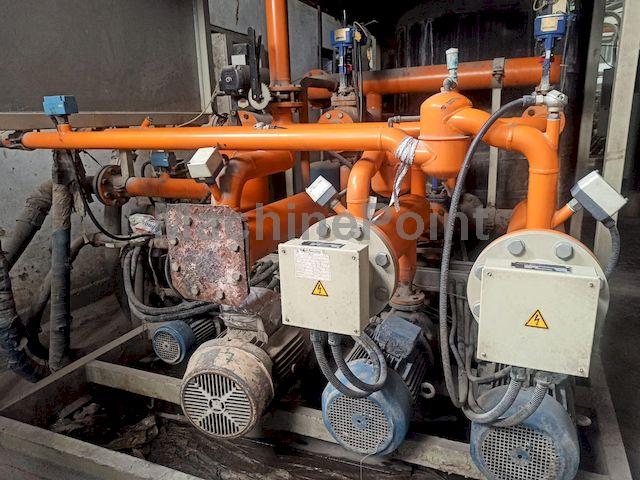

Automatic Water temperature Control Unit
