Used LEHNER P2-530 (PASSWERK 540) of 2013 for sale

2013 | Ref.: 300045495

Mounter proofer LEHNER, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.

Data Sheet of Used LEHNER P2-530 (PASSWERK 540)

Ref.: 300045495

Year: 2013


For sale

Delivery time: > 3 months

Ask for machine price Want to sell your machine?

Technical Specifications:

    Other Specifications:

    Pass-Werk automatic labels flexo plate-mounting device

    Earliest Pick up Oct/Nov 2023

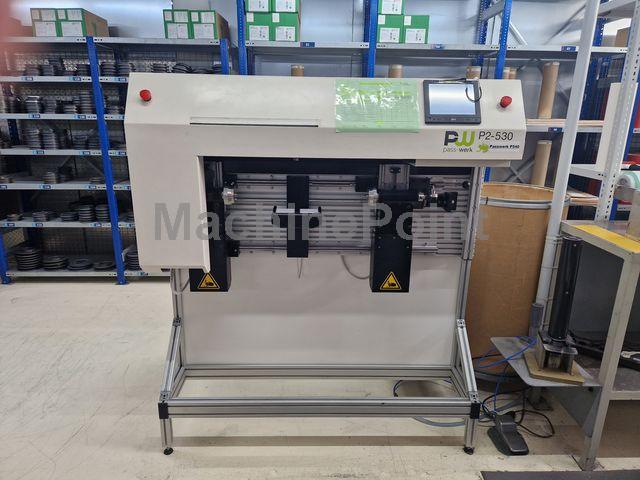

    PASS-WERK Automatic Mounting Machine for Flexo Plates P2530-2
    The mounting machine mounts flexo plates reproducible, print image related, print unit specific and operator independent in in less than 2 minutes with a tolerance range of less than +/- 0.03mm.
    The double-sided adhesive tape (tape) is applied in advance outside the machine. Adhesion sleeves can also be used.

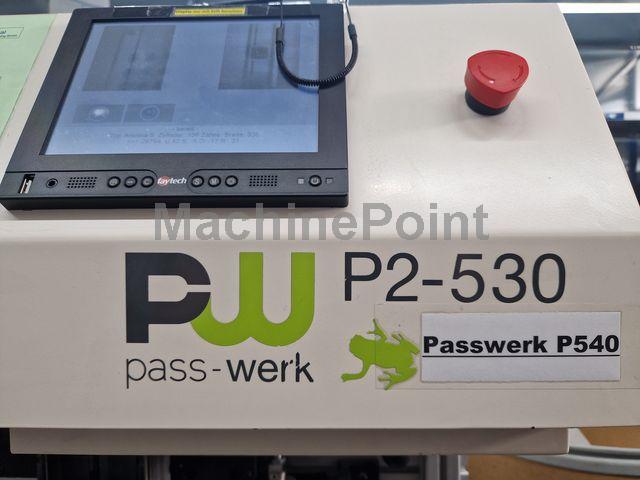

    Before applying the tape, you inform the automatic assembly machine of the basic data (print width, print length and cylinder width) via a touch screen on the front of the machine. Optionally, the information can be transmitted via an interface from the ERP system or an EAN scanner can be transmitted.
    Offset mounting allows you to mount the gap of the printing plate joint offset by one benefit to the tape joint to the tape joint.
    Using an optical measuring system, the automatic assembly machine determines the exact position of the printing forme on the positioning table and mounts the printing forme precisely and fully automatically onto the inserted impression cylinder. The mounting process is monitored and controlled by means of a control line.

    Printing width 130 to 520mm (up to 530mm cylinder width)
    Printing length 222,25mm to 635mm
    Cylinder circumference 70 teeth (8 3/4 ") to 200 teeth (25")
    plate material 1.14mm / 1.7mm
    Mounting time approx. 90 sec.

    Other Details:

    Guarantee: Without guarantee

    Current condition: In Production

    Availability: > 3 months
