Technical Specifications:
Maximum Diameter: 250 mm
Minimum Diameter: 40 mm
Material:PE
Double Wall:Yes

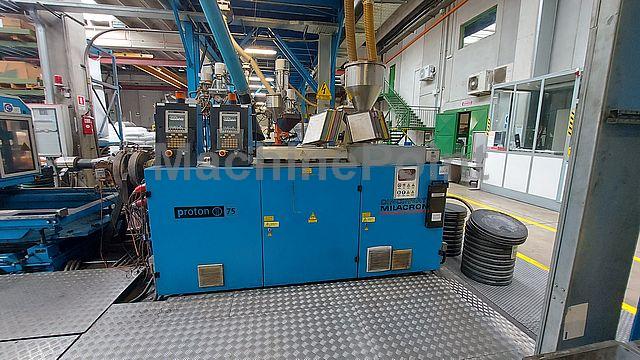

· EXTRUDER: Cincinatti Proton 75-30G
Screw Diameter: 75 mm
Number Of Screws:1
Screw L/D Ratio: 30
Output Capacity: 300 kg/h
Running Hours: 93000

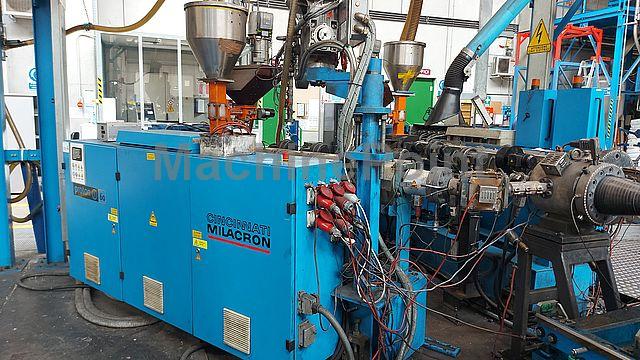

· EXTRUDER: Cincinatti Proton 60-28G
Screw Diameter: 60 mm
Screw L/D Ratio: 28
Output Capacity: 150 kg/h
Running Hours: 93000
· DIE HEAD: UNICOR NW-140 & NW-160
Year: 2000

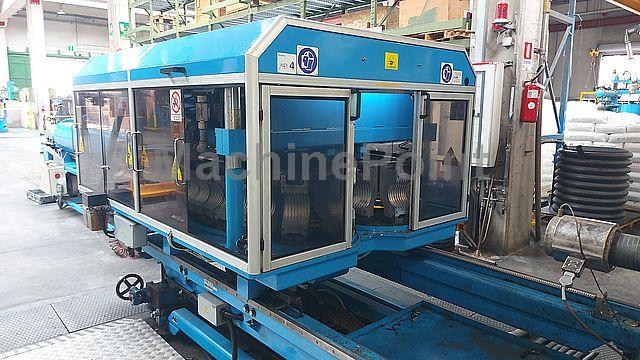

· CORRUGATOR: UNICOR UC-250/35 IV
Year: 1997
Pipe Range Diameter: 40-250
Mould Blocks Included: 90,110,125,160,200
Vacuum System:Yes
Main Drive Power:DC 6.97 kW

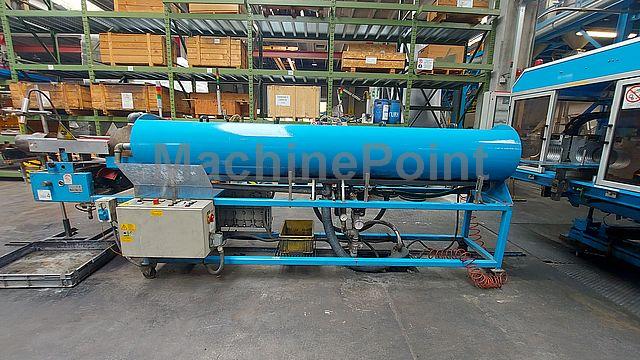

· COOLING TANK: UNICOR UCSB - 250
Pipe Range Diameter: 40-250
· CATERPILLAR HAUL OFF: UNICOR UCSB - 250
Year: 1997
Number Of Belts: 2
Other Specifications:
2x UNICOR die-heads included: NW-140 (1996) & NW-160 (2000)
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: > 3 months
Voltage: 400 V Triphase
Frequency: 50 Hz
