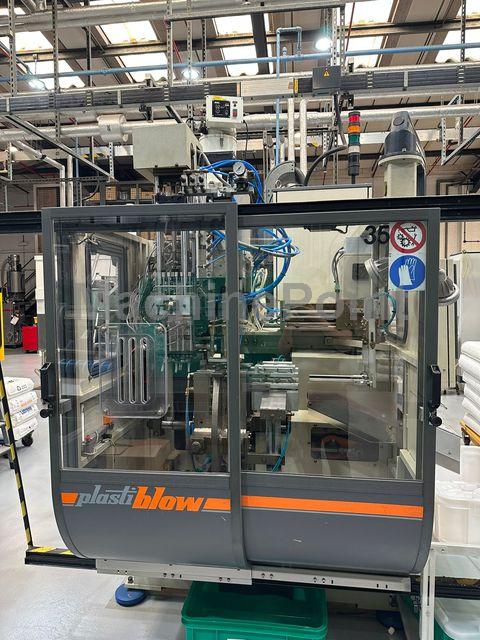

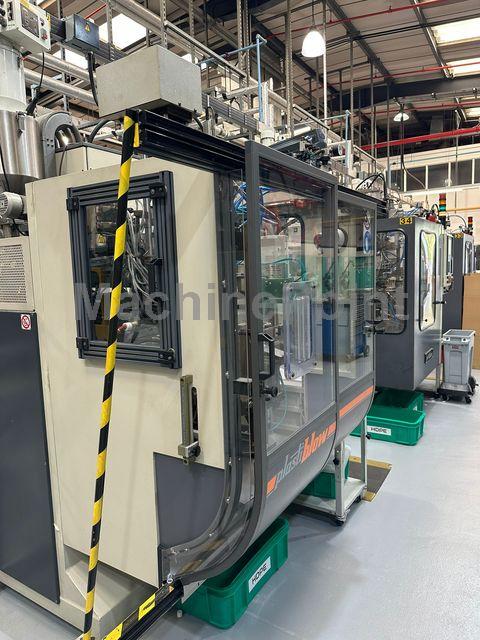

Used PLASTIBLOW PB500 E/S of 2005 for sale

Extrusion Blow Moulding machines up to 2 L PLASTIBLOW, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.

Data Sheet of Used PLASTIBLOW PB500 E/S

Ref. : 300045964

Technical Specifications:

Container Size With Actual Configuration: 0.1 l

Number Of Heads: 3

Material Type: PE/PETG/PP/PVC

Number Of Stations: 1

Output Capacity U/H Or Kg/H:Kg/h 21

Extruder Type:Continuous

Number Of Extruders: 1

Screw Diameter: 38 mm

L/D: 24

Wall Thickness Control: Yes

Center Distance: 60 mm

Other Specifications:

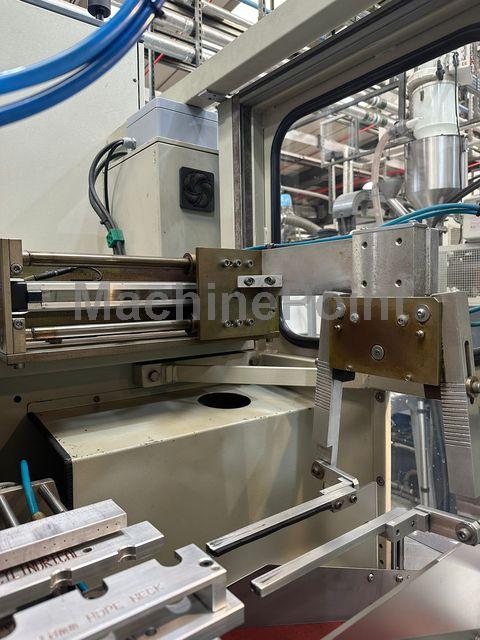

Automatic Deflashing

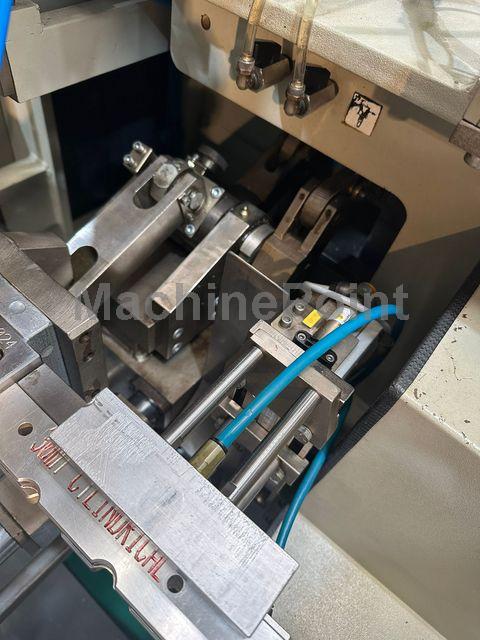

Clamping unit:
H280mm, W250mm, Mould thickness 55-85mm.
Mould gap 110mm

Average consumption 13 kW

Hopper + loader included

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 22 Kw
