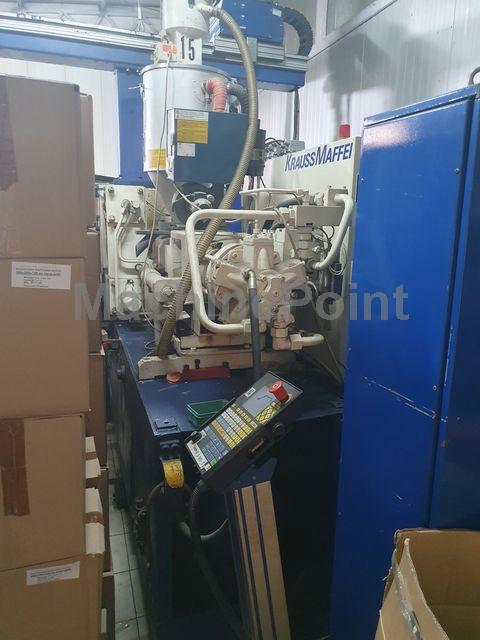

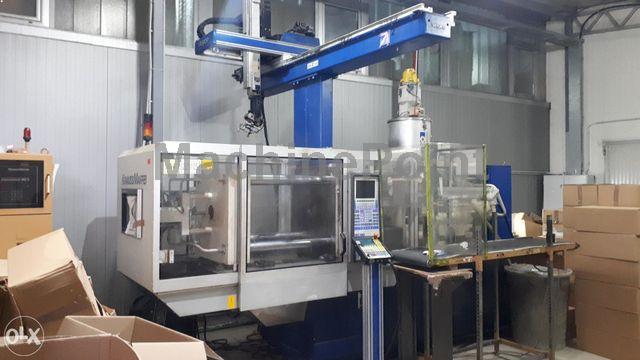

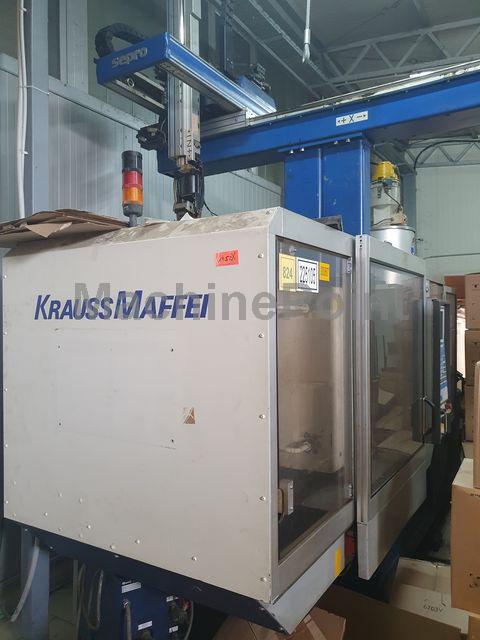

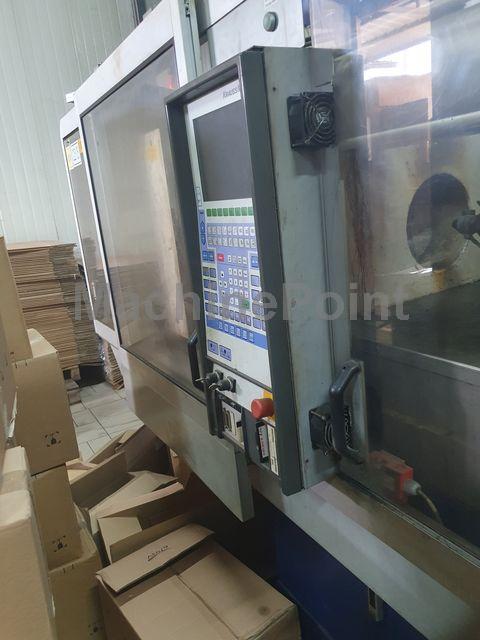

Used KRAUSS MAFFEI 110-390 C2 of 2003 for sale

2003 | Ref.: 300045996

Injection molding machine up to 250 T KRAUSS MAFFEI, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.


Data Sheet of Used KRAUSS MAFFEI 110-390 C2

Ref.: 300045996

Year: 2003

Brand: KRAUSS MAFFEI

Status:
For sale

Delivery time: Immediate


Ask for machine price Want to sell your machine?

Technical Specifications:


  • Clamping Force: 110 ton
  • Shot Weight (Max): 77 g
  • Distance Between Tie-Bars (H): 470 mm
  • Distance Between Tie-Bars (V): 470 mm
  • Platen Size (H): 740 mm
  • Platen Size (V): 770 mm
  • Screw Diameter: 30 mm
  • Mould Height (Min): 300 mm
  • Daylight Between Platens (Max): 900 mm
  • Opening Stroke (Max): 600 mm
  • Ejector Force: 2.24337566855144 ton
  • Ejector Stroke: 150 mm
  • Screw L/D Ratio: 23
  • Screw Speed: 391 rpm
  • Injection Volume: 85 cm³
  • Heating Zones: 5

Other Specifications:


Includes Robot Sepro

Other Details:


Guarantee: Without guarantee

Current condition: Not running. Can be shown with material

Availability: Immediate

Similar Products:


Machines sold in the past:


Working hours – 82 000 Motor – 18,5 kW
Used injection molding machine for caps and closures Brand: Krauss Maffei Model: KM 175-1900C Year: 2001 Includes ROBOT SYSTEM TYP W 633-PET X-300 Y-1200 20-270 Working hours: 16900 No auxliaries included Machine stopped and available immediately
Used Materials: PC/ABS Final product: television parts Working hours: 46722 clamping force: 2300 t core pulls: YES, 12 screw diameter: 150 /120 tie-bar diameter: 310mm injection pressure: 194 bar injection rate: 1117/2385 cm3/s nozzle force: 12t nozzle stroke: 24/16 t number of heating zones: 8/8 heating capacity: 109/82 weight clamping unit: 142000 kg Handling available and included in the offer Brand: Yudo Model: Francia-3520-STM Year: 2019
Hydraulic system requires repair, machine uses 85% oil flow for normal/small displacements. Defective hydraulic ejector Includes: robot Sepro S9000II-BB; year 2003 Available: july 2024
Includes: robot Sepro PIP 3061 BB Available july 2024 Max. mould weight: 62 T
