Used AMUT PET FOIL of 2019 for sale

2019 | Ref.: 300046385

Sheet coextrusion lines AMUT, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.


Data Sheet of Used AMUT PET FOIL

Ref.: 300046385

Year: 2019

Brand: AMUT

Status:
For sale

Delivery time: From date


Ask for machine price Want to sell your machine?
Please accept marketing-cookies to watch this video.

Technical Specifications:


  • Materials: APET, RPET, PP, PS
  • Film Width (Max): 1000 mm
  • Film Thickness (Min): 0.2 mm
  • Film Thickness (Max): 1 mm
  • Output Capacity: 500 kg/h
  • Layers: 2
  • Number Of Extruders: 2
  • Rewind Roll Diameter: 1200 mm

Other Specifications:


Produces APET, RPET film
Layer configuration: ABA

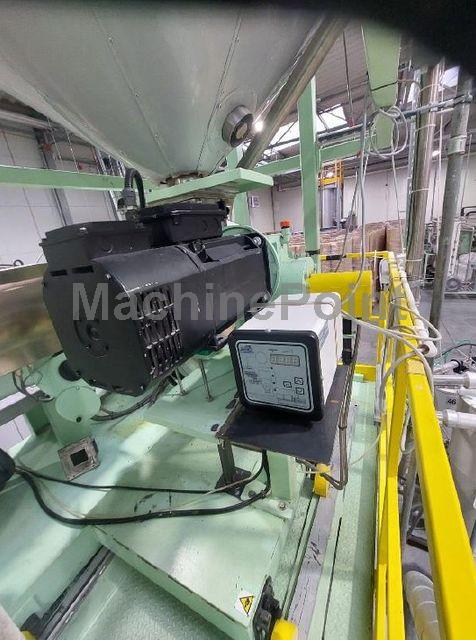

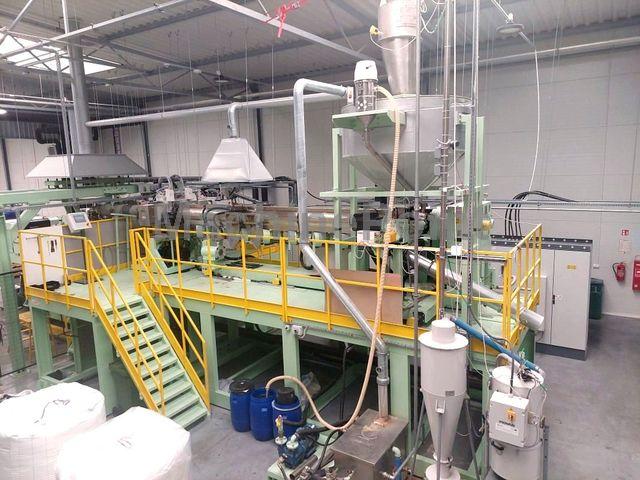

Gravimetric dosing system, 2 components per each extruder

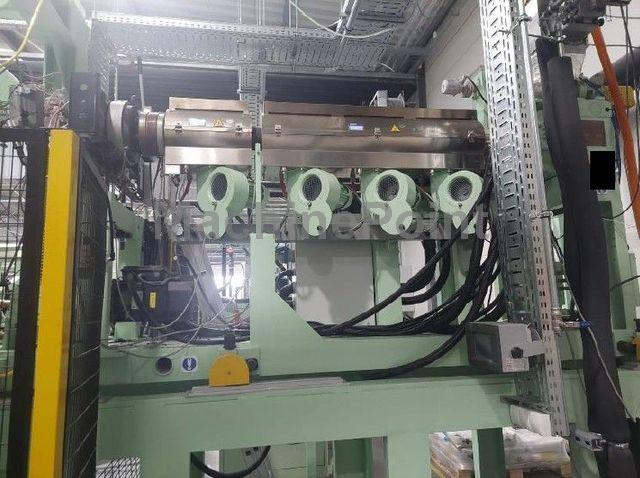

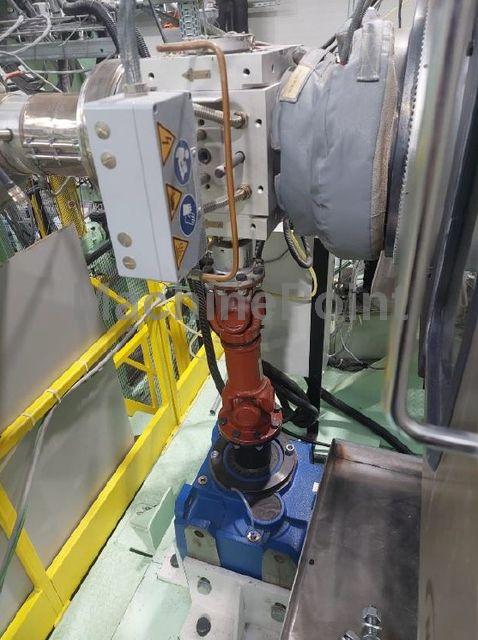

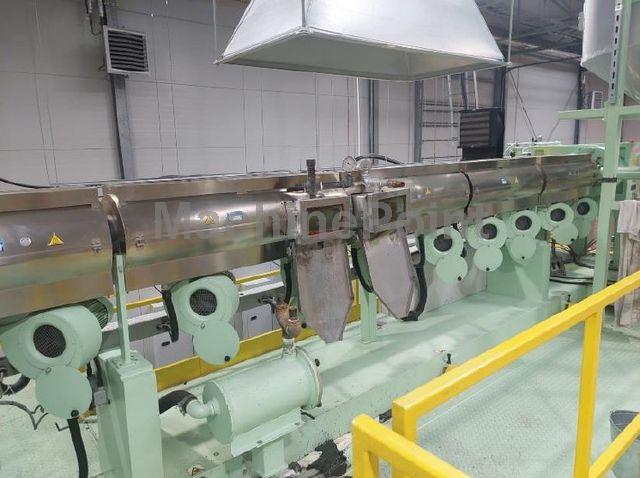

Main extruder Extruder EA100/52D with Gear pump and screen changer
Auxiliary extruder EA 48

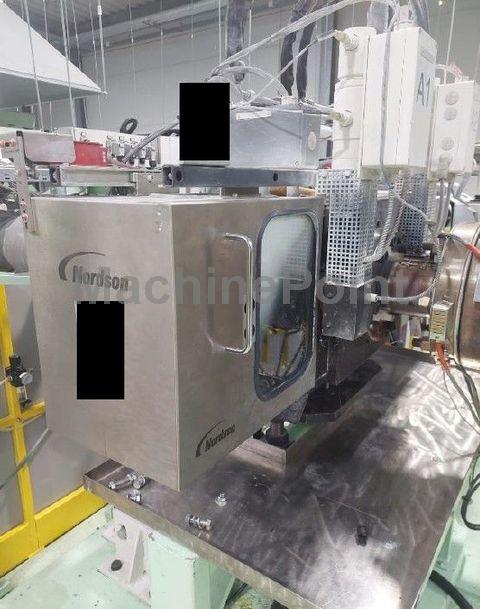

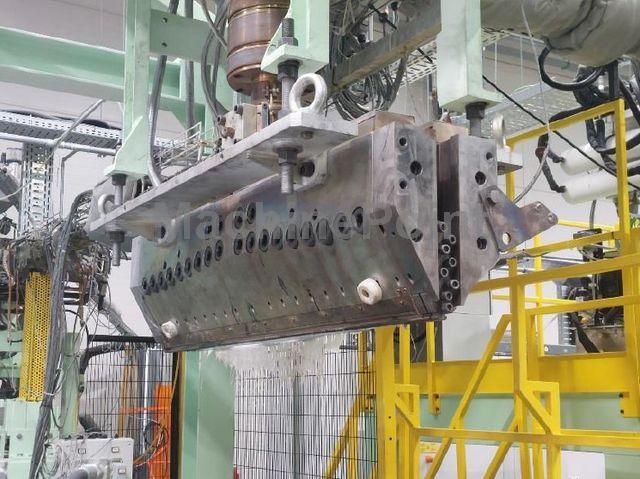

Extrusion die width 1390 mm, Total melt outlet width: 1250 mm

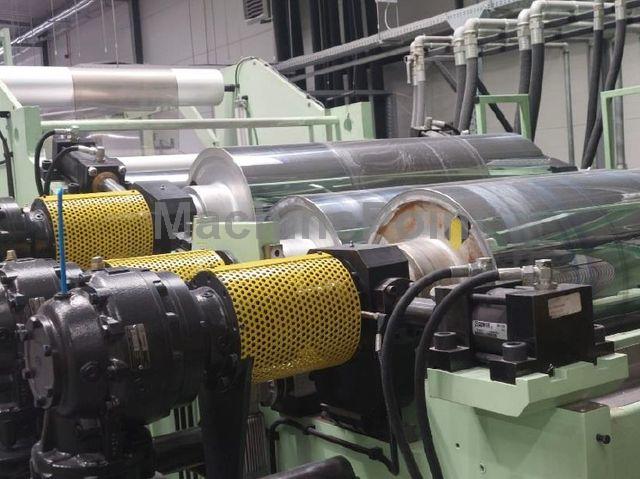

Horizontal calender
Entry, central and exit roll diameter: 440 mm
Cooling rolls diameter: 290 mm

Diathermic unit
Antistatic liquid spreading unit

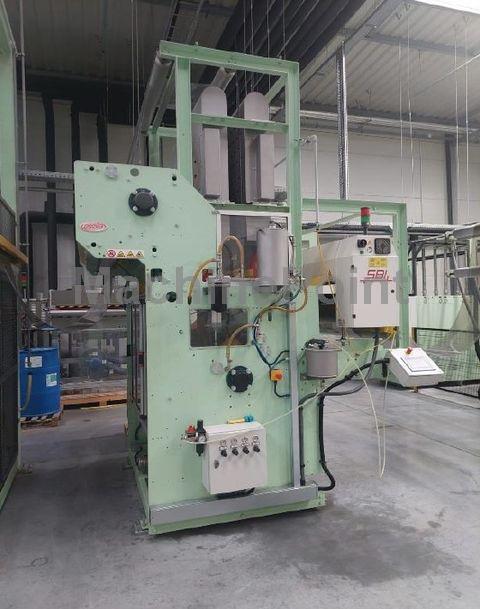

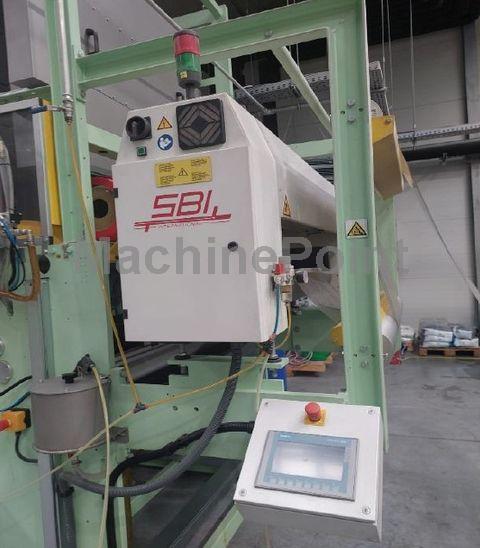

Thickness control system: SBI
Thickness measuring unit
Trimming unit

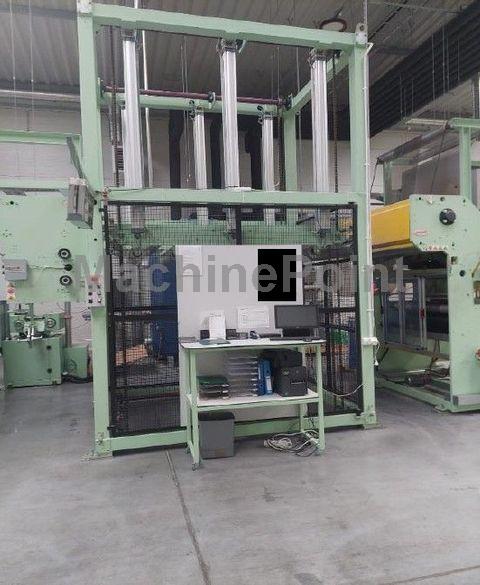

Accumulating unit

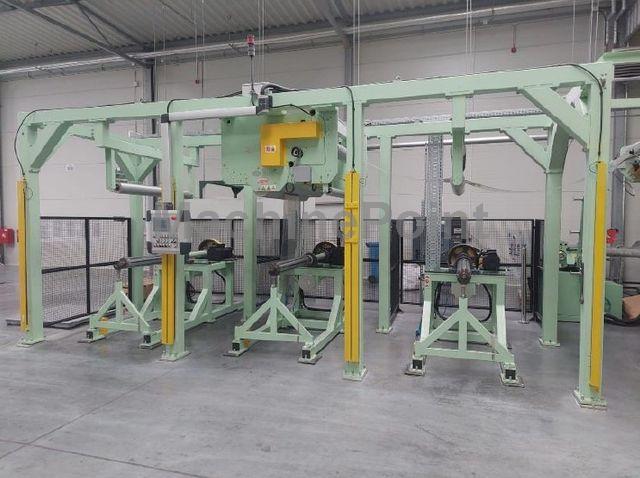

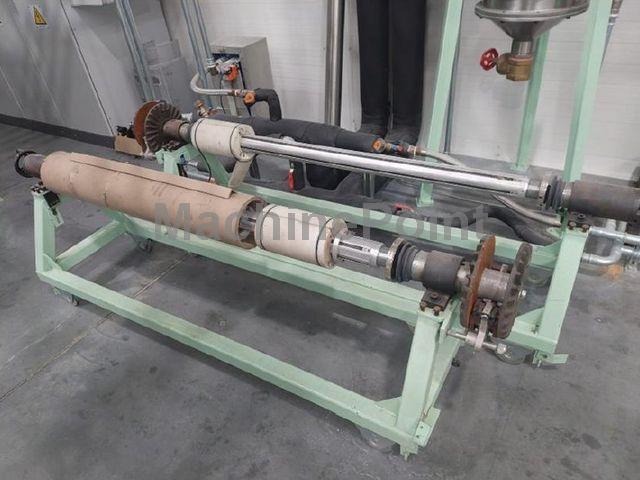

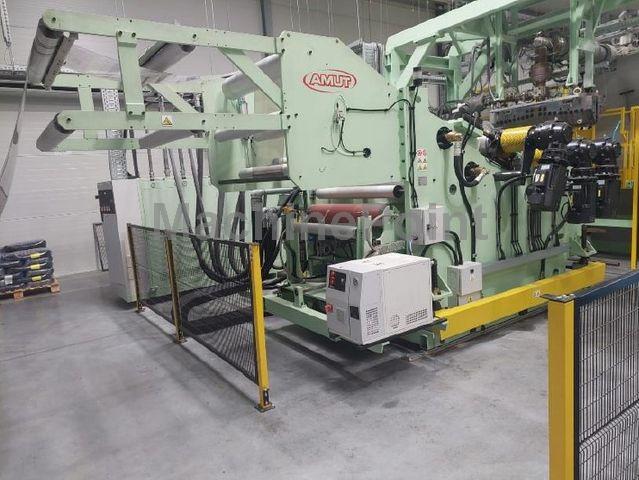

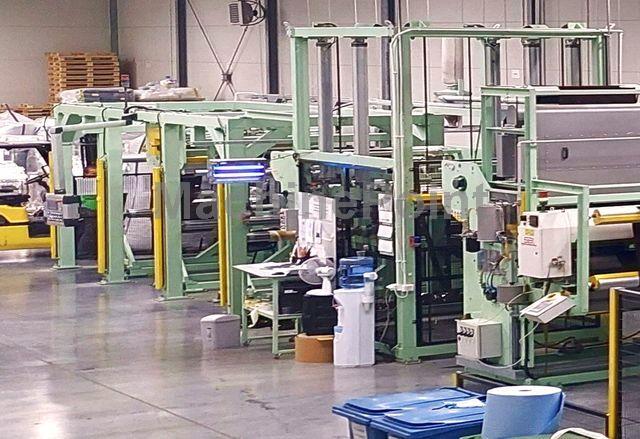

3x Winders
Paper core diameter: 152 mm and 76 mm

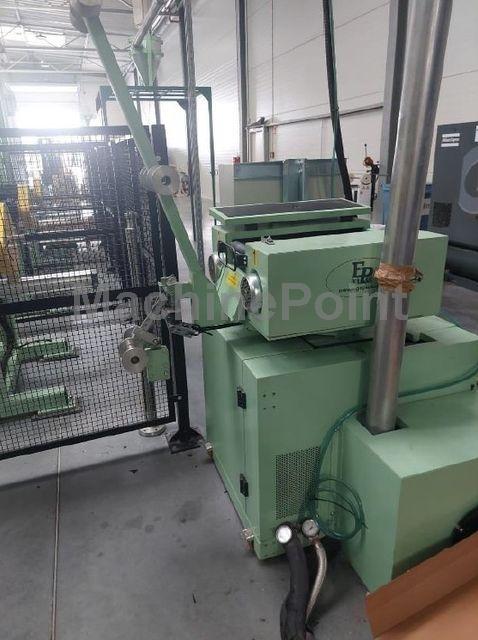

Grinder

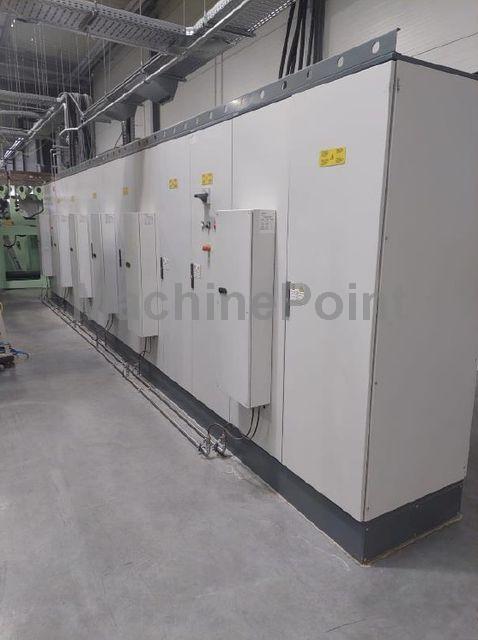

Temperature control cabinet

Does not include PET reactor (can be bought separately)

Other Details:


Guarantee: Without guarantee

Current condition: In Production

Availability: From date

Voltage: 380 V Triphase
Frequency: 50 Hz
Voltage: 633 Kw

Clasification:


Used Materials: PET
