Used OTTOGALLI EPS1 6st Monocolor of 2000 for sale
2000 | Ref.: 300046610
Injection molding machine up to 250 T OTTOGALLI, MachinePoint offers their clients all the services necessary to buy the machine: Transport, dismantling, and legal consultancy.
Data Sheet of Used OTTOGALLI EPS1 6st Monocolor
Ref.: 300046610
Year: 2000
Brand: OTTOGALLI
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 130 ton
- Shot Weight (Max): 1000 g
- Distance Between Tie-Bars (H): 396 mm
- Distance Between Tie-Bars (V): 396 mm
- Platen Size (H): 360 mm
- Platen Size (V): 360 mm
- Screw Diameter: 75 mm
- Control Type: Electronic
- Tie-Bar Diameter: 22 mm
- Mould Height (Max): 160 mm
- Mould Height (Min): 90 mm
- Daylight Between Platens (Max): 60 mm
- Clamping Speed: 80 mm/s
- Opening Stroke (Max): 100 mm
- Core Pulls: No
- Injection Pressure: 160 bar
- Heating Zones: 3
- Heating Capacity: 11.78 kW
- Oil Tank Capacity: 300 l
Other Specifications:

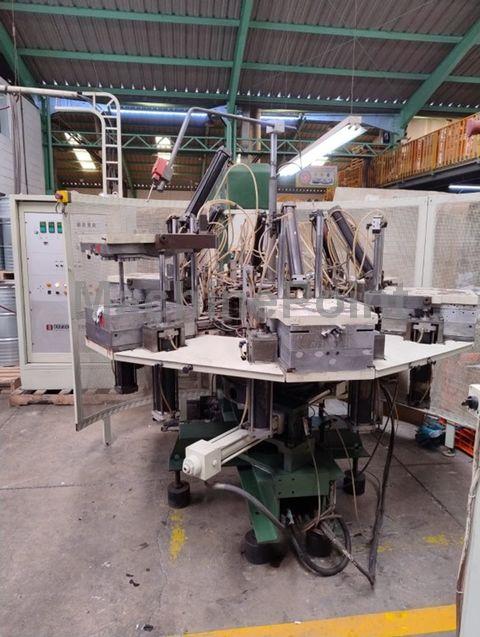

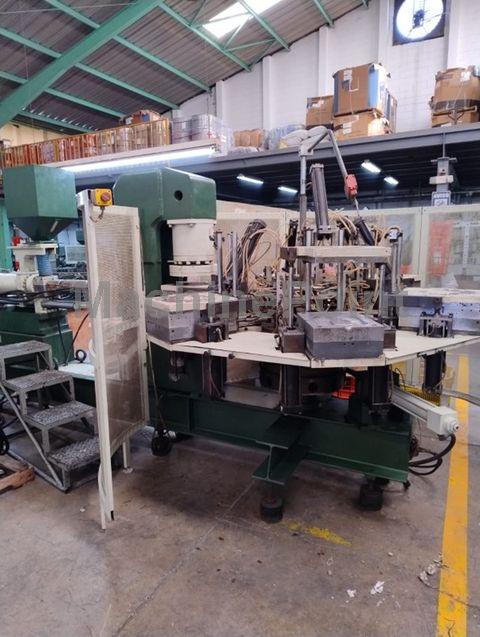

OTTOGALLI EPS1 6 stations monocolor for shoe soles
Materials: PVC, TR, Ronil
final product: monocolor shoe soles
CE certified: NO
Machine manuals available
Robot: YES
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
