VALTORTA 150/350 of 2000

ELMAG/VALTORTA SCREEN PRINTING LINE for profiles YEAR 1989 LENGTH OF MACHINE Length 29 meters X Width of 1.5 meters as follows: - PROFILE INFEED BELT - FIRST PROFILE BRUSHING STATION - ROLLER STATION FOR PRIMER APPLICATION - BOTTOM DRYING AREA WITH 2-METER HOT AIR JETS - FIRST ROLLER PRINTING STATION FOR WOOD EFFECT - SECOND ROLLER PRINTING STATION FOR WOOD EFFECT - THIRD PRINTING STATION FOR WOOD EFFECT - FINAL CURING ZONE FOR UV INKS (GLOSS AND MATTE) - EXIT BELT FOR PROFILE UNLOADING Included with the machine is the electrical cabinet. Maximum height of profiles : 80 mm Maximum printing width is 500 mm Available for sale number 43 rollers (Price on request)

PVC dry blend mixer Valtorta loading system CSV + dosing unit + PLC Includes two silos Capacity: 600 kg/h

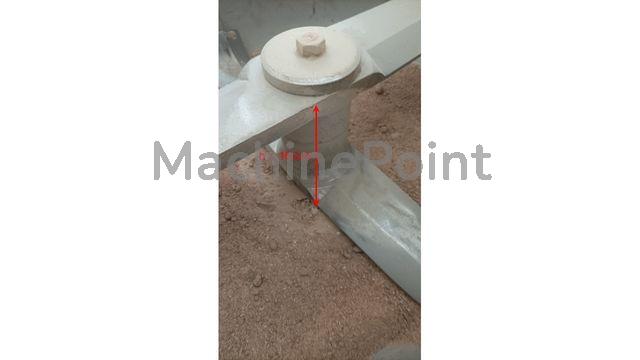

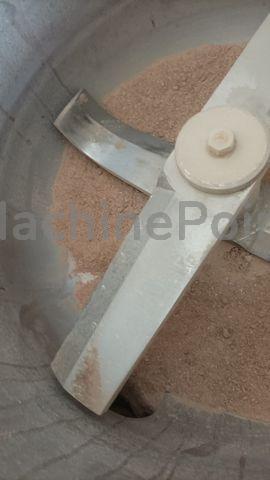

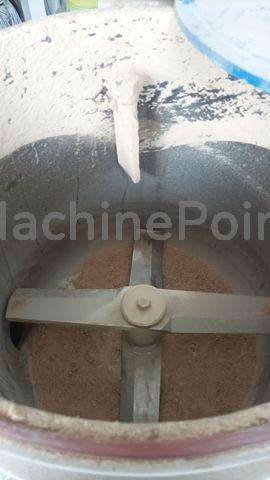

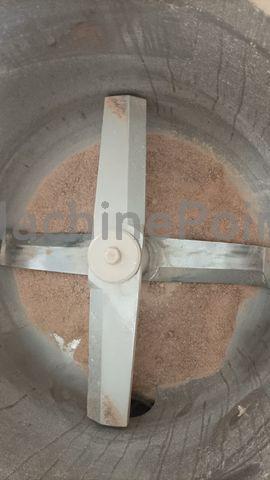

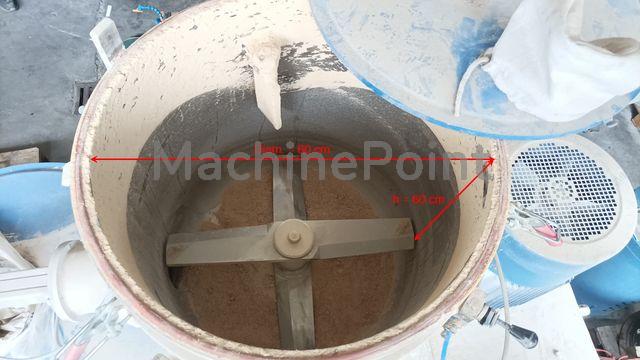

HIGH SPEED TURBO MIXER+HORIZONTAL COOLER PRODUCER VALTORTA ITALY YEAR OF PRODUCTION 2006 MIXER 50l+COOLER 150l Scope of delivery: High speed mixer typ V5 capacity 50 liters, with AC motor 15kW with inverter Horizontal cooler RO 150, capacity 150 liters, motor with reducer 2,2 kW Control cabinet with PLC system Included tank with pump for liquid injection (plastisizer, or liquid stabilizer)
