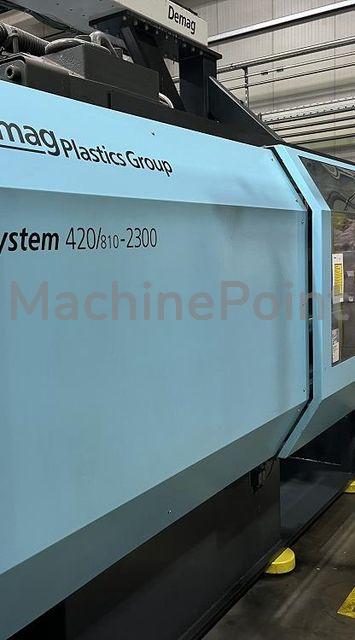

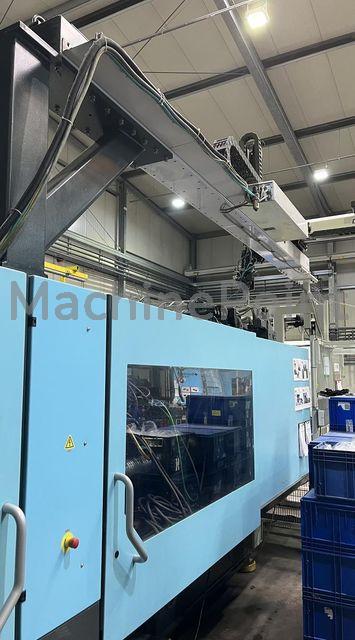

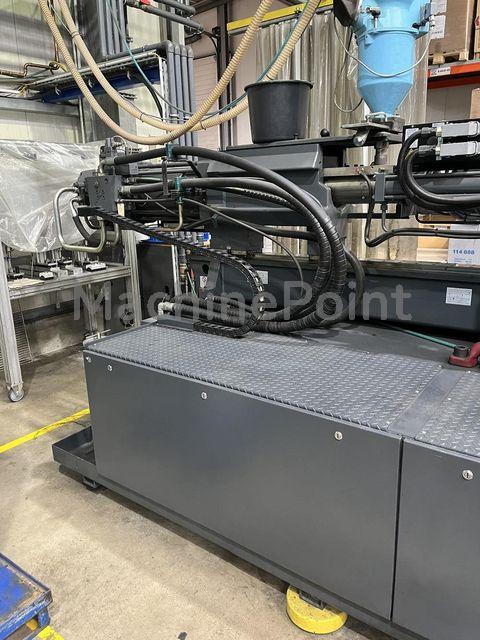

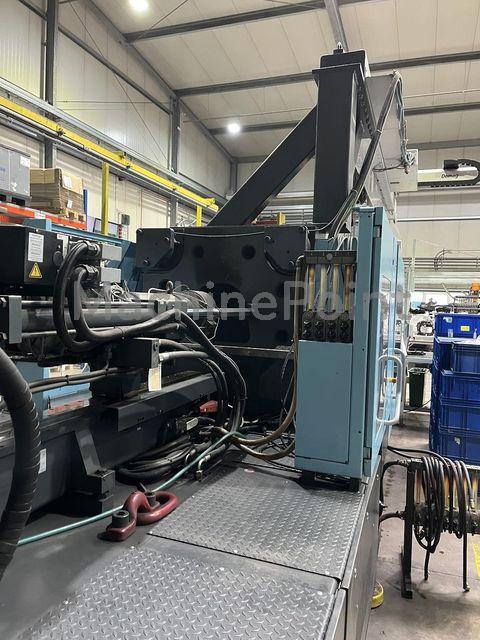

Used DEMAG System 420/ 810/2300 of 2008 for sale
2008 | Ref.: 300047378
Injection molding machine from 250 T up to 500 T DEMAG, The team at MachinePoint will accompany you through the whole process of buying the machine.
Data Sheet of Used DEMAG System 420/ 810/2300
Ref.: 300047378
Year: 2008
Brand: DEMAG
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 420 ton
- Shot Weight (Max): 1430 g

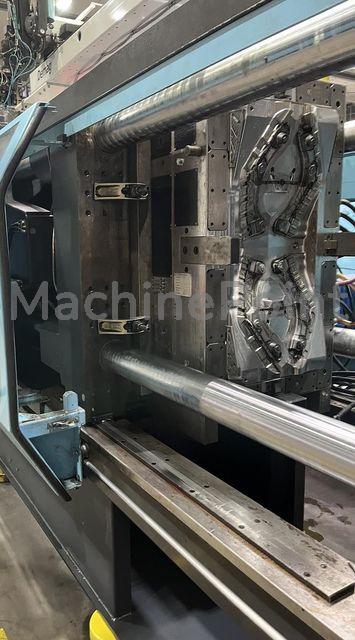

- Distance Between Tie-Bars (H): 810 mm
- Distance Between Tie-Bars (V): 710 mm
- Platen Size (H): 1200 mm
- Platen Size (V): 1100 mm

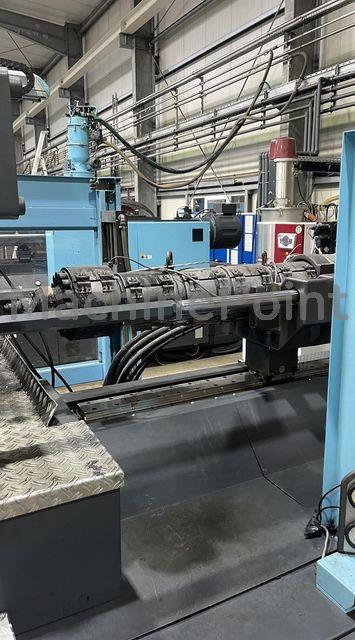

- Screw Diameter: 80 mm
- Tie-Bar Diameter: 120 mm
- Opening Stroke (Max): 710 mm
- Ejector Force: 96 ton
- Ejector Stroke: 230 mm

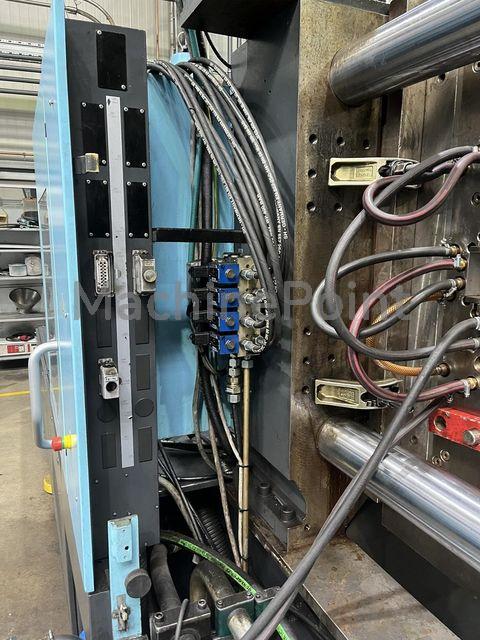

- Core Pulls: Yes
- Number Of Core Pulls: 4
- Screw L/D Ratio: 20
- Injection Volume: 1583 cm³
- Injection Pressure: 1437 bar
- Heating Zones: 12
- Oil Tank Capacity: 730 l
Other Specifications:
Working hours on 13/08/2024 : 53179 hrs
Included

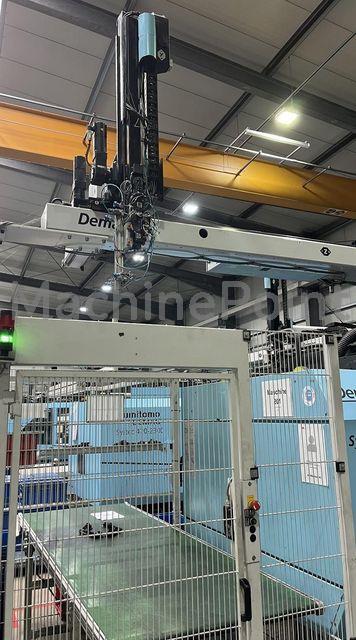

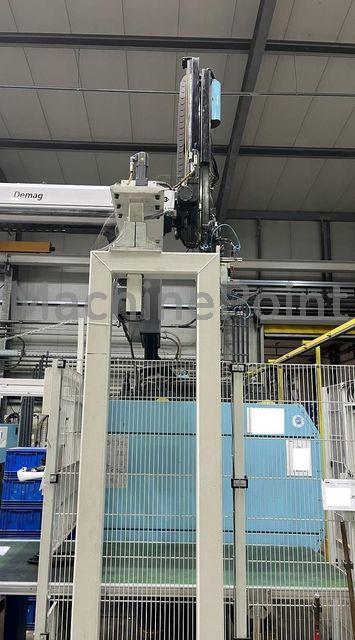

- Handling robot , Brand : Wittmann , Year 2008 ;
- Safety fence,
- conveyor belt
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 86 Kw
