Used HEMINGSTONE HM-900BR-S2+C2-AM of 2017 for sale
Bottom weld bags on the roll HEMINGSTONE, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.
Data Sheet of Used HEMINGSTONE HM-900BR-S2+C2-AM
Ref.: 300047513
Year: 2017
Brand: HEMINGSTONE
Ask for machine price Want to sell your machine?
Technical Specifications:
- Welding Width: 900 mm
- Film Speed: 120 m/min
- Drive: Servo
- Number Of Lanes: 2
Other Specifications:

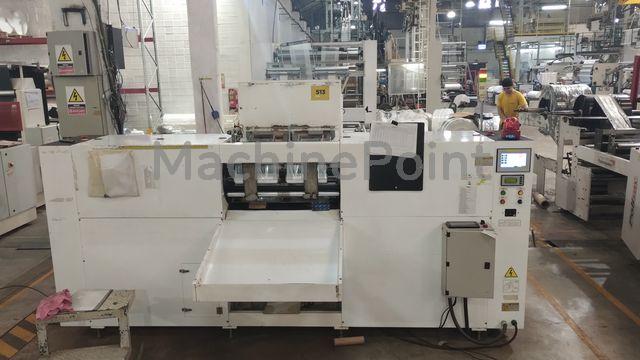

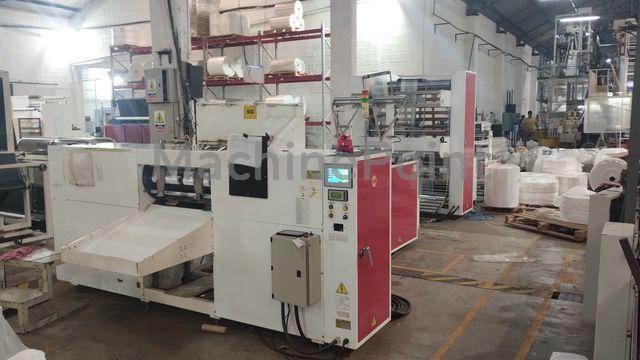

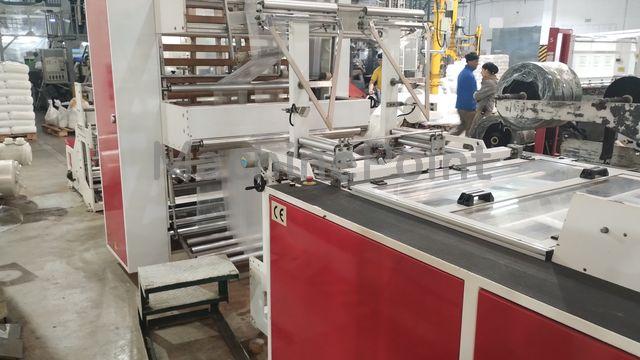

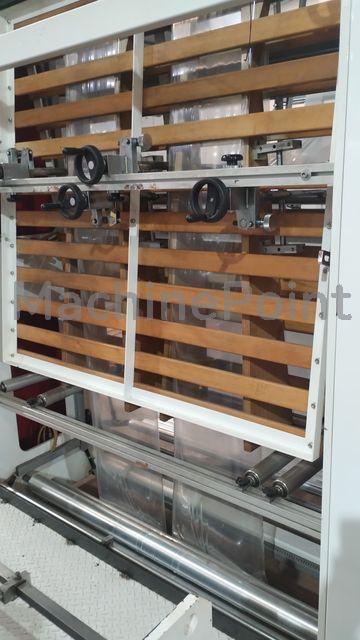

HIGH-SPEED FULLY AUTOMATIC BOTTOM SEALING MACHINE FOR BAG ON ROLLS WITHOUT CORE & WITH CORE
SPECIFICATION
Film size: 1200mm/max.
Film width: 100~850mm X 1 line. 100~420mm X 2 lines.
Film length: 285~455mm (with 4 sealing) 455-915mm (with 2 sealing) 910-1820 mm (with 1 sealing)
Sealing Thickness 0.26mm (Total) / Max.
Sealing Thickness 0.02mm (Total) / Min.
Bags Speed Max:
300pcs/Min. (with 4 sealing)
150pcs/Min. (with 2 sealing)
75pcs/Min. (with 1 sealing)
Speed for changing the rolls:
Max. 6 times/Per Min without core
Max.4 times/Per min with core
The size for finished production of rolls (without core):
Roll Width 650mm X 1 Line/Max. 280mm X 2 Lines/Max.
Roll Diameter 130mm/Max.
The size for finished production of rolls (with core):
Roll Width 650mm X 1 Line/Max. 300mm X 2 Lines/Max (HOT SLIT).
Roll Diameter 170mm/Max.
Core Diameter 33mm (AS PER CUSTOMER'S REQUEST). CUSTOMER SHOULD OFFER THE SAMPLE OF THE CORE)
Core length 125mm/min (The size 100mm could be purchased as optional)

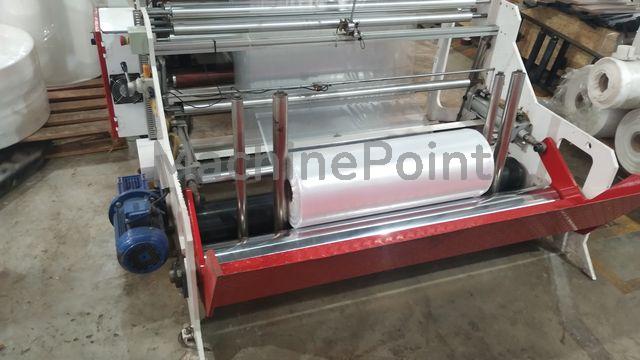

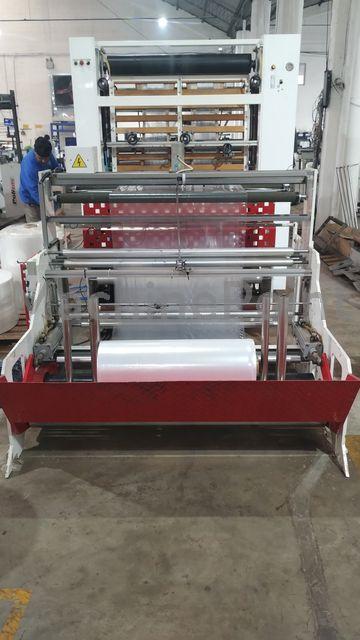

The thickness of the bag: 8 micron MODIFICATION OF MACHINE: 1SET SURFACE FRICTIONAL TYPE UNWIND UNIT INSTEAD OF STANDARD UNWIND
ACCESSORIES/PER SET:
2 Sets Folding unit with EPC. 4 Sets Sealing & perforation knife.
2 Sets Special rotating sealing unit.
1 Set C-fold unit.
1 Set Motor for main machine with inverter
1 Set Feeding motor with inverter.
1 Set Collecting motor with inverter
1 Set Auto rewind unit.
2 Sets Rewinding motor with inverter
1 Set Motor for rotating disc
1 Set Control panel .
1 Set Auto control system of temperature for sealing bar
1 Set Hot slitting unit
2 Sets Side Gusset Unit
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Voltage: 7 Kw
