Używana NEWLONG 1546TS+538HS 2016 na sprzedaż

Specyfikacja techniczna:

• Typ torebki: Flat handle

Inne specyfikacje:

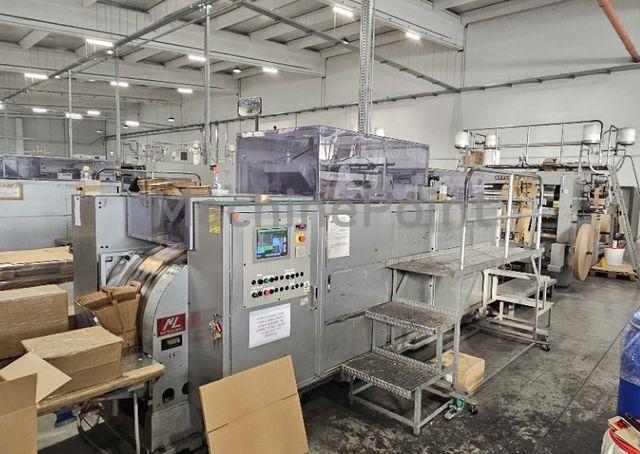

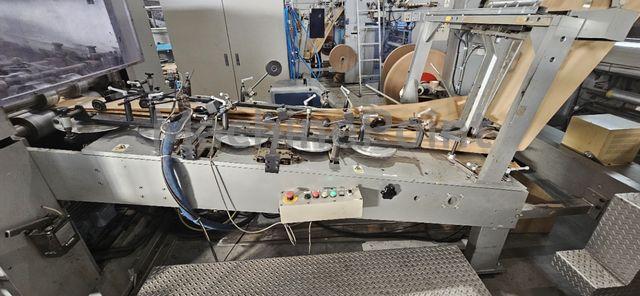

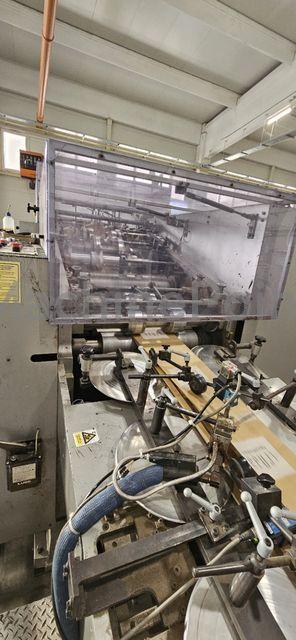

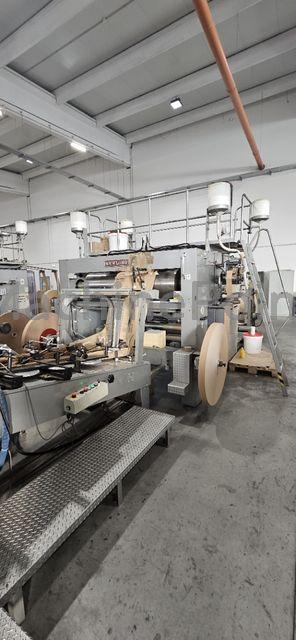

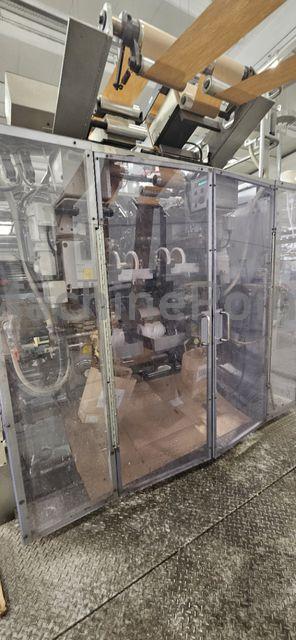

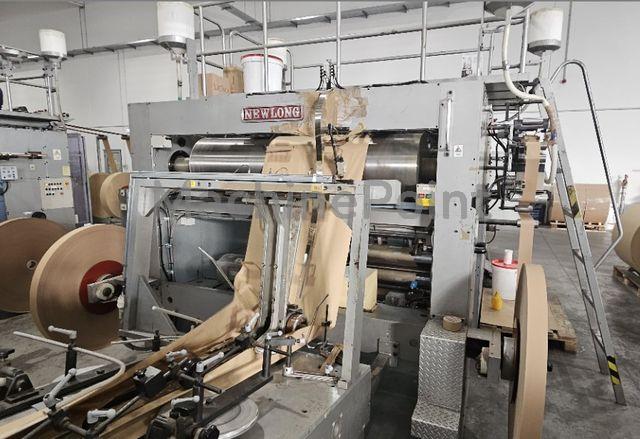

Servo controlled bag making machine with flat handle unit, designed to manufacture block bottom, self-opening square bag with photocell device for pre printed master paper

Bag width min-max: 180-460 mm
Bag width min-max: 150-460 mm (without handles)
Bottom width min-max: 80-220 mm
Bag length min-max: 265-590 mm (with concealed handles)
Bag length min-max: 265-590 mm (with unconcealed handles)
Cutting length min-max: 360-650 mm (with concealed handles)
Cutting length min-max: 360-580 mm (with unconcealed handles)

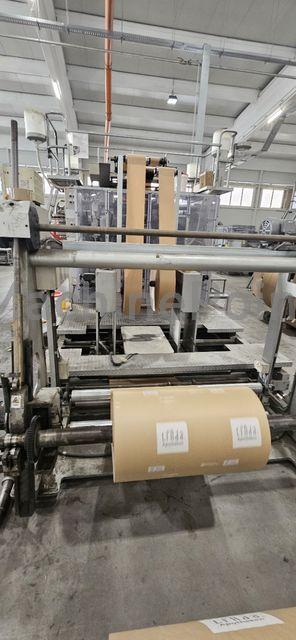

Paper roll width: 485 – 1390 mm
Paper roll dia: 350-1200 mm
Paper grammage: 70-125 gm2
Max.speed: 180 bags/min. Speed depends on paper quality, basis weight, print accuracy, etc.
Handle center distance min-max: 260-680 mm

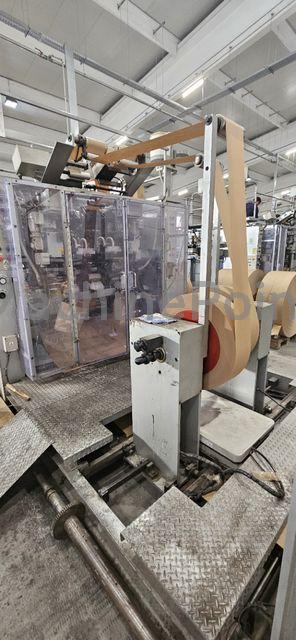

Handle patch roll size:
Patch paper width: 160 mm
Patch paper weight: 80-100 g/m2
Max patch paper roll dia: 1200 mm
Patch paper roll stand: 2 stands
Inner core diameter for patch paper roll: 76 mm
Handle paper size:
Handle paper width: 94 mm
Handle paper weight: 60-80 gm2
Handle type: 6-folded
Handle width: 18 mm
Handle length: 323 mm
Handle patch width: 160 mm
Handle patch length: 52 mm
EPC web guide
Servo controlled forming plate
Photocell device for pre-printed rolls (for gearless control)

Pozostałe dane:

Gwarancja: Bez gwarancji

Kondycja: Maszyna obecnie pracuje

Dostępność: Natychmiastowa
