Used SIDEL SBO 18/16 UNIVERSAL 2 ECO of 2013 for sale

2013 | Ref.: 300048223

Stretch blow moulding machines SIDEL, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.


Data Sheet of Used SIDEL SBO 18/16 UNIVERSAL 2 ECO

Ref.: 300048223

Year: 2013

Brand: SIDEL

Status:
For sale

Delivery time: Immediate


Ask for machine price Want to sell your machine?

Technical Specifications:


  • Neck: 29/25
  • Output: 36000 U/h
  • Preform Feed System: Yes
  • Container Size (Max.): 2 l
  • Number Of Cavities: 18
  • Materials: PET
  • Heating Zones: 16

Other Specifications:

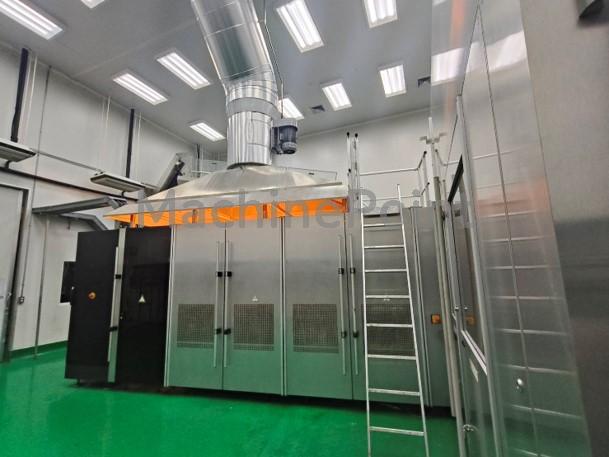

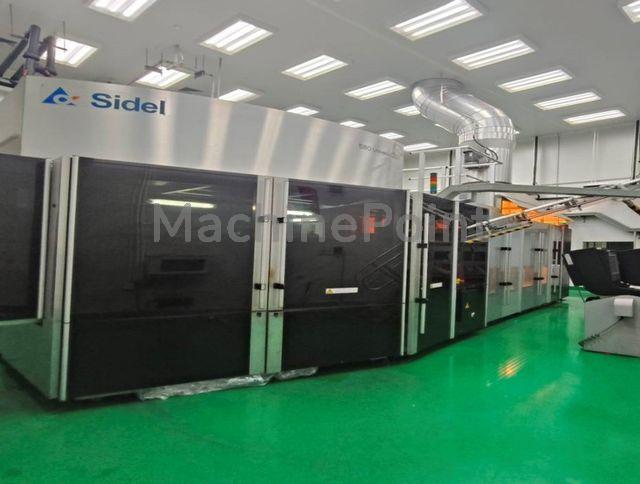

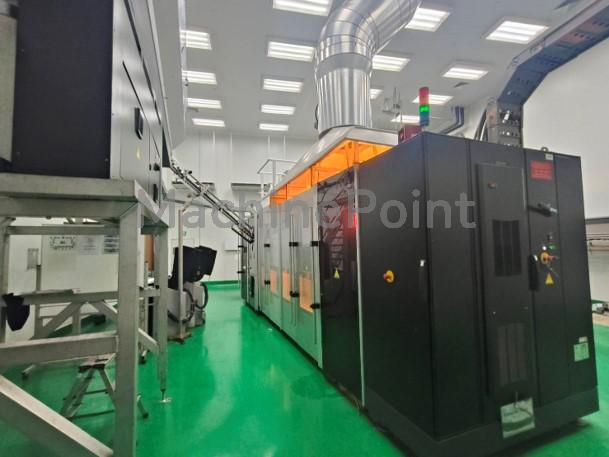

SIDEL Blow Molding Machine SBO 18/16 Universal

Manufacturing Year 2013

Capacity:

36,000 Bph and speed upgrade to 39,600 Bph for size 600 ml.

22,000 Bph for size 1,500 ml

PET bottle min 600 ml, max 1500 ml -
Neck finish 29/25 for water bottle

The offer includes:

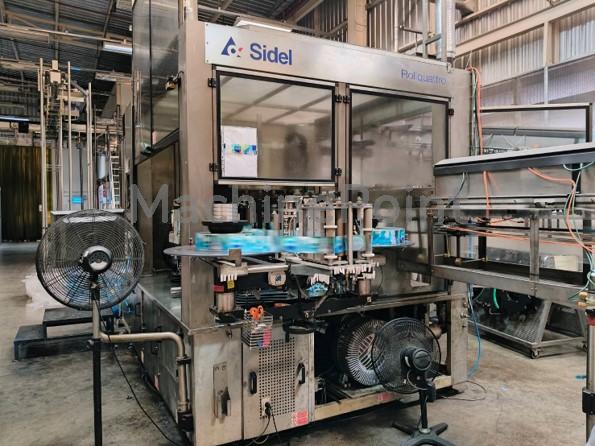

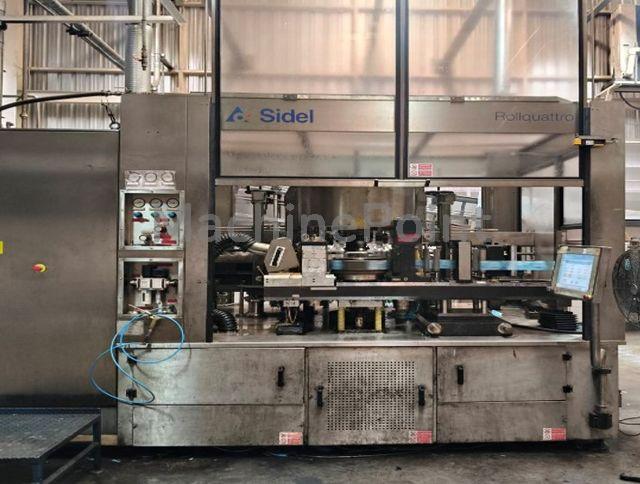

- Labeler SIDEL Roll QuattroF25E SEAD4413 Year 2013 (41,400 Bph for size 600 ml.,24,000 Bph for size 1,500 ml)
- Compressor AF 20AH0844 CE 68 B Year 2013 2,600 m3/h FAD
- Chiller CTA IPE-502 Year 2013 Power Max 401 kW, Min 13 kW
- Spares

Machine available immediately!

Other Details:


Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Frequency: 50 Hz

Similar Products:


Machines sold in the past:


Stretch blow moldinh machine Sidel - SBO 8 Universal HR the machine include an heat resistance set Includes infeed system. Spare parts included. The hours are currently at 65284 Machine is still running till September 2026
Sidel tray shrink packer- year 2018 Model: EvoFilmEVF-5M-F-SDR Only 6.300 hours Stored in a warehouse and available immediately Guarantee available upon request
Actis is a pioneering plasma coating technology that not only enhances the PET barrier to extend the shelf life of PET-packaged beverages by up to five times, but also produces lighter packaging. This solution is available in an integrated blowing, plasma coating and filling configuration with the generation of modular Sidel EvoBLOW Combi equipment. Sidel Actis (Amorphous Carbon Inner Surface Treatment) is a coating applied inside the PET bottle. It is used as a protective barrier in the packaging of soft drinks, beer and oxygen-sensitive beverages such as juices, teas or coffee. Parts of the machine: 1- Bottle infeed unit 2- Bottle infeed wheel 3- Drive system 4- Treatment stations 5 - Fluid table 6 - Vacuum pumps 7 - Bottle transfer wheel 8 - Inblower 9- Bottle outfeed wheel 10- Bottle outfeed unit 11 - Control panel (PCC) 12 - Cabinet
Complete TCP; SIDEL; Simik Hot Fill line from 2012 Includes: 1. Central Water Supplying System - TCP 2. Ingredient Disolving System - TCP 3. Continuous Sugar Dissolving System - TCP 4. Main Blending System - TCP 5. Tubular Type UHT Pasteurizer 8000-14000 Lph - TCP 5. Central CIP Solution Supplying System - TCP 6. SIDEL SBO Universal HR 16/20 Blowing Machine, with Hopper, Conveyor, and Gardner Denver High Pressure Compressor. Includes 2 sets of 16 blow moulds: 330ml PCO1880, 450ml 1881 7. SIMIK Filler + Rinser + Capper - Year 2020 (Only 3.000 Hours) 8. Cooling tunnel - TCP (240000 BPH) 9. Labeller - TCP (18000 BPH) 10. Shrink tunnel - TCP (18000 BPH) 11. Packer - TCP (22-26 cases/min) 12. Check Weigher - TCP (22-35 Cases/min) 13. Palletizer - TCP (20-23 cases/min) 14. Presco Inspection Machine - TCP The line has approximately 32,000 running hours. The SIMIK Filler + Rinser + Capper, from the year 2020, has only 3,000 hours The line is in great condition and available immediately!
SIDEL Blow Molding Machine SBO 16/16 Includes: 1. Preform feeding system, tilter & conveyor. 2. Spare Parts Molds not included Machine available immediately!
