Used ILLIG HSA -50D, FS-35 of 2006 for sale

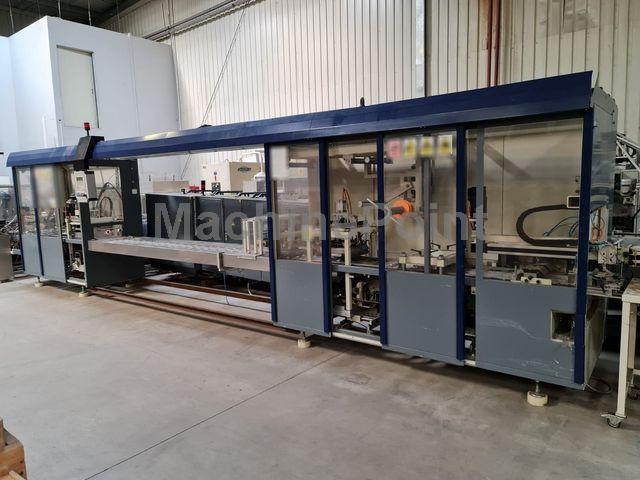

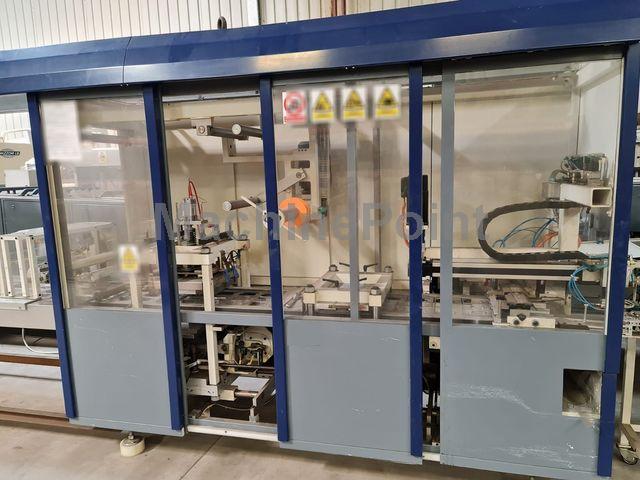

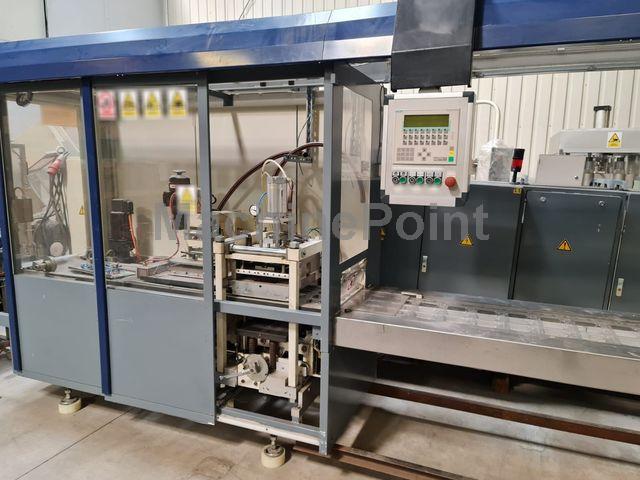

Machine for skin, blister and standard thermoforming. The machine has : 1 robot for automatic carton placement on the table 1 conveyor belt 1 thermoforming machine 1 trimming block with guillotine puller + punch-die punch holes, longitudinal separation by trimming knots, max 8 pcs. Cardboard format: 450X1200 mm Max reel diameter (blister) : 495 Film thickness : PE film 100 my, PS : 1.5mm & APET PVC 1.2mm Carton weight : 600g/m2 max Cone diameter : 70 mm Actuality : blistering set of shower curtain rods

Sheet Max dimensions : 1500x1000 mm Power Connected / upper heater : 38.40 kW Power Connected / lower heater: 24 kW total connected power (basic machine): 70.75 kW Power connected / upper preheating: 38.40 kW Power connected / lower preheating: 24 kW Elements of heating : ceramic radians

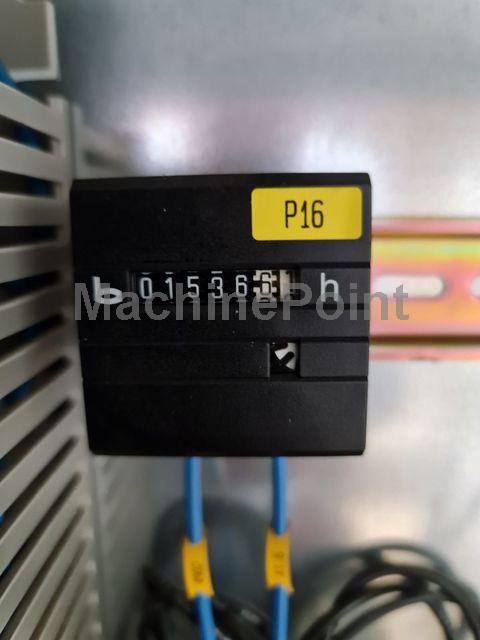

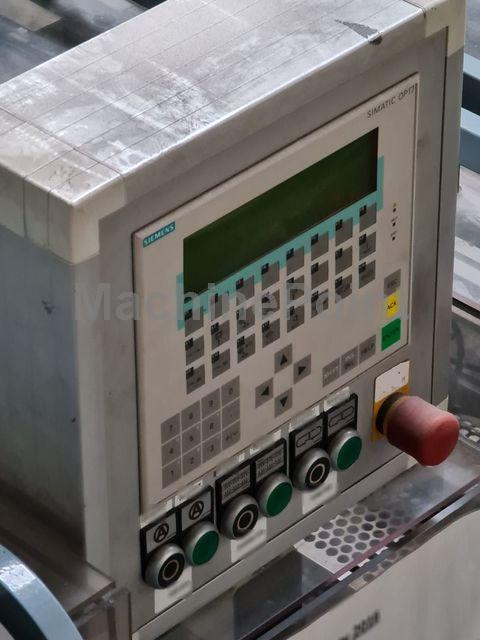

Working hours 47738 Max. sheet width 786mm Cycles/minute: 30 Stations: Forming cutting Stacking Servo PLC: Siemens Electrical power requirements: 200 A Electrical Usage:10 kA

Forming - cutting - stacking Forming machine: Min-max forming area : 400x250-700x500 Min-max film width: 440-750mm Height of parts above / below the film level: 120 / 40mm Diameter of Film Reel: 1200mm Connected electric power from upper-lower heater: 16.2kW Level of the film: 1300mm Max speed: 20 / min Weight: 2600kg Vacuum forming only Cutting unit : Cutting area at top and bottom table: 700x500mm Cutting height above / below film level: 120 / 40mm Cutting force: 50,000 daN Connected electric power of heating: 6.4kW Max temperature of the heating plate: 200 C Cooling capacity for heating: 15,000 kJ / h Tool mounting height to upper table max / min: 140 / 80mm Tool mounting height to bottom table: 60mm Power requirement: 3kW Weight of the machine: 4.000kg Complete features Forming machine + cutting unit : Max speed: 20 / min Total electric power with lower heater: 46kW Total electric power with the lower heating and heating of the cutting unit : 52.4kW Total air consumption with stroke lengths max: 35 NL Operating pressure min: 6bar Recommended compressor power (effective): 1200 NL / min Max. Diameter of waste reel (skeleton): 600mm Weight of the machine: 6600kg Working hours : 25603

Forming/Cutting/Stacking Min. forming area: 300x100mm Part height above / below material level: 100/30mm Max-min material width: 540-340mm Installed power upper heating: 9.8 kW Installed power lower heating: 5.6 kW Available in July 2024
