Used Extrusion lines for multifilaments: OMGM BCA-TAPE 100.080.080.128 of 2001

Data Sheet of Used OMGM BCA-TAPE 100.080.080.128

Ref.: 300042354

Brand: OMGM

Year: 2001

---

Other Specifications:

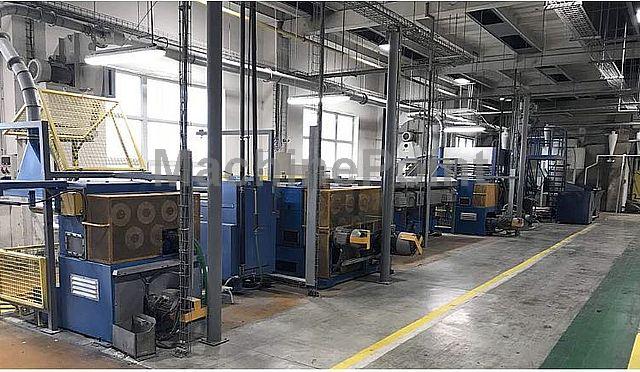

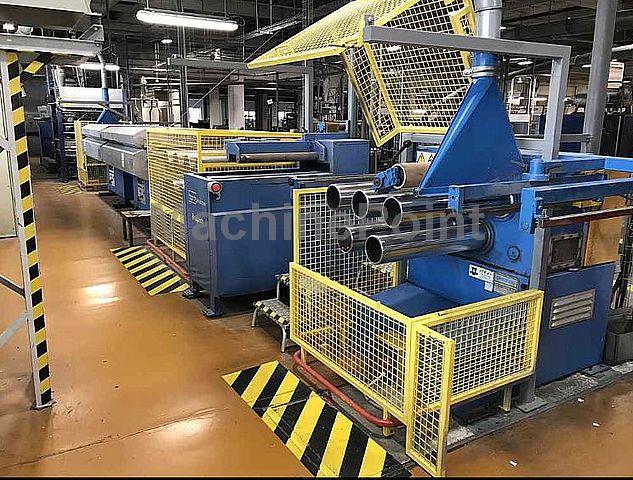

The line is supplied complete and tested with metering and feeding granules ; extrusion process controlled by the metering pump , flat head with vertical outlet and double lip scratched , water cooling tank , stretching oven air intake , and collection broken wires ;winding included.
All the mechanical components will be replaced and revised at new .
Production capacity up to 150 kg/h ; mechanical speed up to 150 mt/min .
This configuration is able to produce standard artificial grass in 2000 Den.

1) n. 1 - Dosing unit model: “ DU.300 “

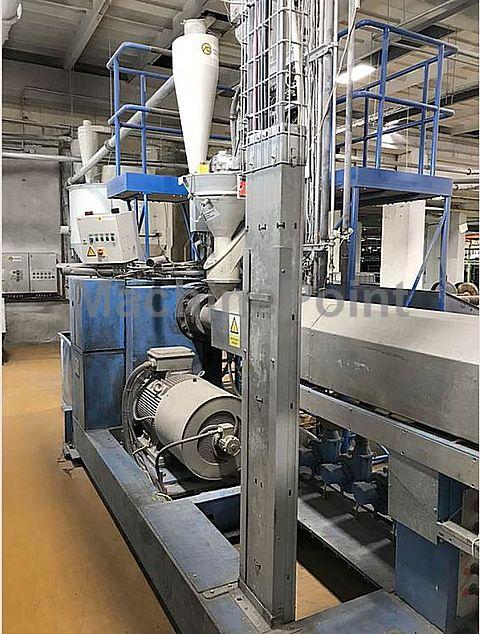

2) n. 1 - Extrusion model: “ EX.100.32 “
3) n. 1 - Continous filter model : “ CFU.100 “
4) n. 1 - Gear volumetric pump model: “ PU.120.40 “
5) n. 1 - Special head model : “ H.085 “

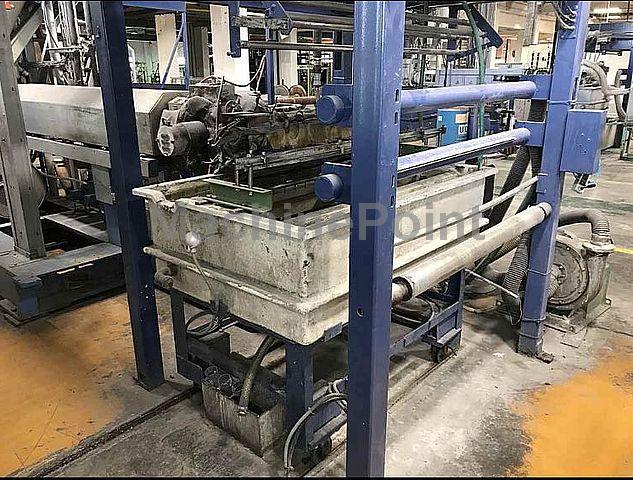

6) n. 1 - First cooling tank model: “ HVU.100.150 “
7) n. 1 - Dryer tank model : “ DU.50.035 “
8) n. 1 - Slow stretching unit model : “ SSRU.085.0175.05 “
9) n. 1 - Stretching oven model (New): “ H.400.080. “
10) n. 1 - Fast stretching roller model : “ FSRU.085.025.07 “
11) n. 1 - Annealing oven model(New): : “ H.400.080. “
12) n. 1 - Annealing stretching roller model : “ ASRU.080.0175.05 “

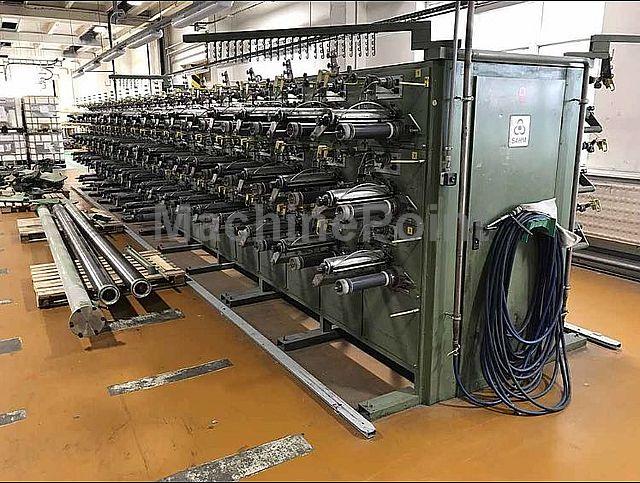

13) n. 1 - Winder machine model : “ SAHM 260.128 “
The electrical cabinet and all the driver , static components , CPU and HMI touch screen panel are news and leading manufacturers like .

Substrate pre-testing:
The pre-testing of customer's substrates is essential.
All test material will be supplied by customer 20 days before the pre-testing date at its cost.

Delivery Term:
90 working days from down payment, final layout and technical specifications acceptance.
