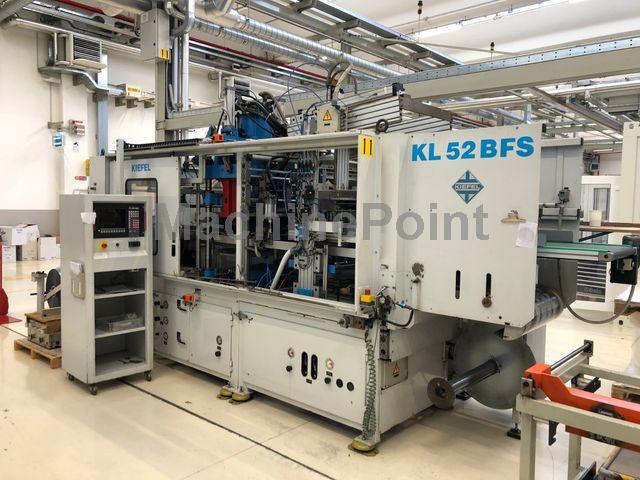

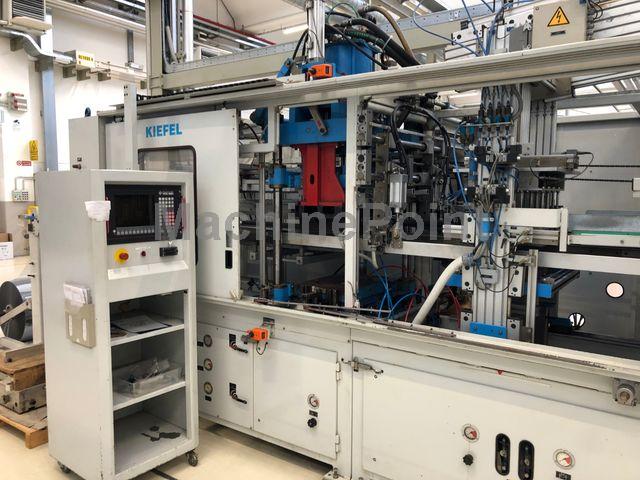

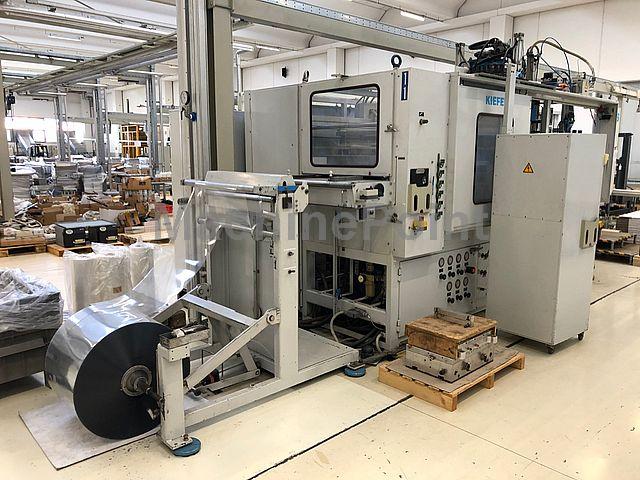

Used KIEFEL KL52 BFS of 1996 for sale

Firming area: min - 300 x 100 mm max - 500 x 350 mm Film width max: 545 mm Formed part height max. +ve/-ve: 120 mm / 50 mm Max output (dry run): 35 T/min Nominal current 81 A Premilinary fuse 100 A control voltage 24V DC Forming station upper/lower Punching station upper/lower Waste winder unit max diam. 700mm Available end of september 2024 materiales?? 50k?

KTR 6 Speed Automatic Pressure Forming Machine with very few working hours Unreeling: KA 83 KA83 Reel dimension maximum (w / Ø) 830 mm / 1200 mm Reel core dimension (Ø) 76 mm / 152 mm Unwinding shaft (Ø) / Reel weight max. 40 mm / 400 kg Unwinding shaft (Ø) / Reel weight max. 70 mm / 1000 kg Dimensions approx. (l x w x h) 2,2 x 1,5 x 1,5 m Heating/Forming: KTR 6 KTR-long: Pre-heating-Heating-Forming Main heating at bottom and top with single zone control (longitudinal) incl. cross heating at top (cavities staggered in reverse order) with single zone control (transverse), black ceramic heating elements Integrated pre-heating with black ceramic heating elements (Very important for processing PP material) Forming station for combined forming and in-mould punching; main drive with servo motor via cams Nominal forming area minimum 485 x 130 mm Height of formed part negative 150 mm (optional 180 mm) Punching force (clamping force) 600 kN Film width maximum (incl. spreading) 835 mm Film width minimum (incl. spreading) 510 mm Nominal heating capacity upper and lower main heater banks 110 kW Nominal power main drive forming station 46 kW Nominal power servo plug assist 46 kW Force servo driven plug assist dyn./stat. 45 / 90 kN Cooling power (provided by customer, cooling power depending on tool capacity, calculated with maximum water flow of 283 l/min.) 100 kW Air consumption, max. (without forming air) 35 NL/cycle Operated speed maximum (no load operation / 450 ms forming time) 40 cycles / min. Tool dimensions maximum 1090 x 600 mm Tool change in block 1040 x 560 mm Dimensions, approx. (l x w x h) incl. integrated pre-heating approx. 7500 x 3700 x 3800 mm Weight approx. 15.000 kg Stacking: KIST 78/56 Stacking area, max. 780 x 560 mm Height of formed part, max. 200 mm Operated speed maximum (no load operation): 45 cycles / min. Dimensions (l x w x h) approx. 4700 x 3600 x 3100 mm Weight : approx. 4000 kg Grinder: Granulator Tria TF 120-30 sl Soundproofed 15 kW motor screen Ø 6,5 mm – tungsten carbide blades Suitable for PS and PP film up to max. 2,5 mm thickness Suction group Tria HT 50 sl 5,5 kW soundproof blower piping Ø 150 mm for conveying distance 10 m horizontal cyclone with stand and filter bag

Working hours 55462 Control updated in 2022 Preassure air forming Min forming area 380 x 270 mm Max. Sheet width 900 mm Power of each heater: 38.25 Control of heaters: PT100 Cycles/ minute: 80 Preheater: No Plug Assist: Punch drive bottom Electrical use (KW): 147kVA Air consumption 6bar Heating power consumption: 191.25A Stacking station Earliest Pick up mid 2024

Working hours 83774h Preassure air forming New display Min Forming Area 260 x 220 mm Max. Sheet width 570 mm Power of each heater: 15kW Control of heaters: PT100 Cycles/ minute: 60 No Preheater Form closing force: 200kN Plug-Assist from bottom Electrical use (KW): 88kVA Heating power consumption: 75A Stacking station

Working hours 87361 Preassure air forming Min forming area 380 x 270 mm Max. Sheet width 800 mm Power of each heater: 31.5kW Control of heaters: PT100 Cycles/ minute: 80 Preheating incl: No Plug-Assist: Punch drive bottom and top Electrical use (KW): 148kVA Heating power consumption: 157.5A Stacking station Earliest pick up October 2023
