Used KIEFEL KL 1 SH 52 BFS of 1993 for sale

Thermoformer KIEFEL, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.

Data Sheet of Used KIEFEL KL 1 SH 52 BFS

Ref. : 300042866

Year: 1993


Status: For sale

Delivery time: Immediate

Technical Specifications:

Material : PET, PVC, PP, PS, HIPS

Forming Area (Vxh): 540x420

Depth Of Draw: 140 mm

Material Thickness (Min): 0.2 mm

Material Thickness (Max): 3 mm

Number Of Stations: 3

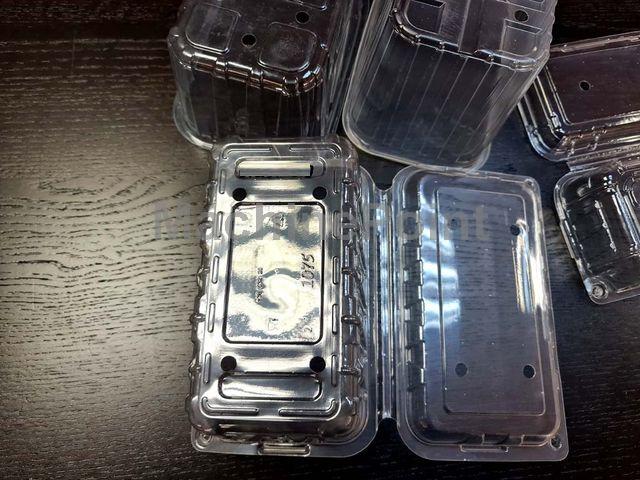

Products Type:Container

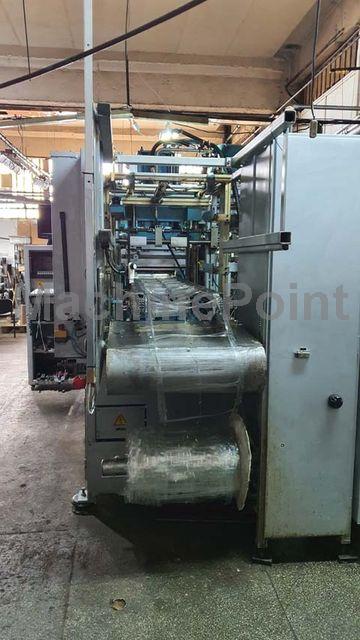

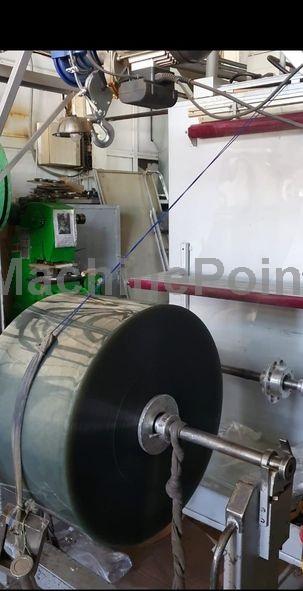

Feeding Systems:Roll fed

Other Specifications:

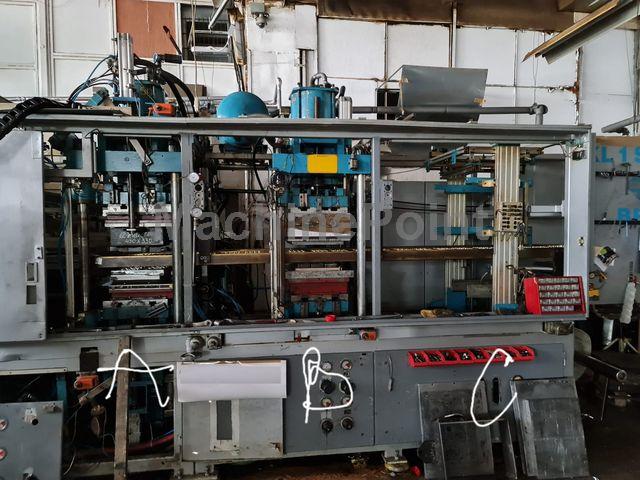

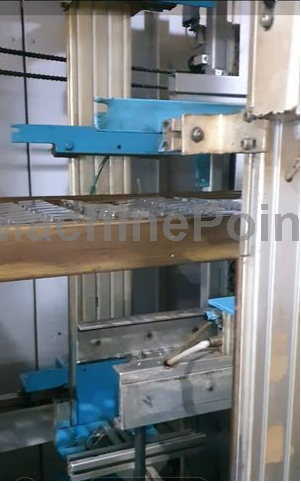

3 stations: forming/cutting - punching - stacking

Forming Area: 540x420mm
Film Width: 570mm
Foil thickness: min 0,2mm - max.3mm
Depth of draw pos/neg: 140mm
Materials: PET, PVC, PP, PS, HIPS
Cycle/min min-max : 5-40
Working hours : 41983

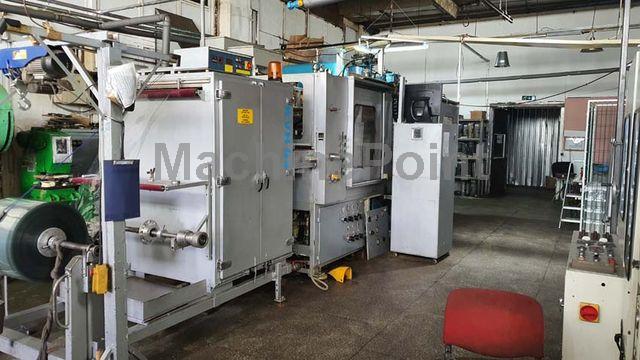

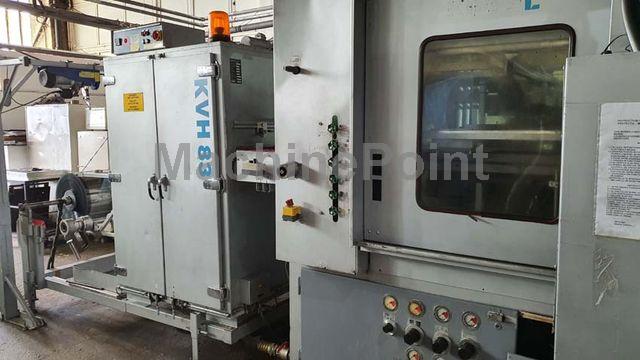

Preheater model KVH 83
Max width of sheet : 830mm
Heating output : 43000 kJ
Voltage : 3x400V + N + PE
Connected load : 15.3 KVA

Compressor Kaeser CSDX 140 included, year 2014, 17mc / min, 5-15bar, 7481 h

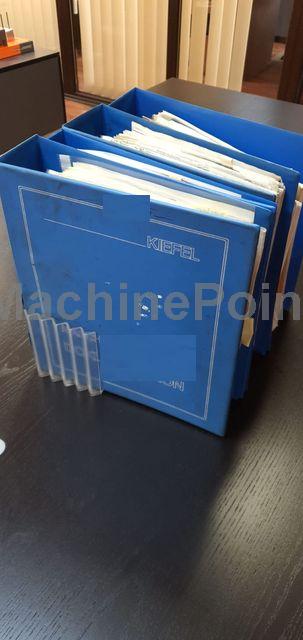

Manuals available (original + scaned .pdf)
Spare parts included
Software saved

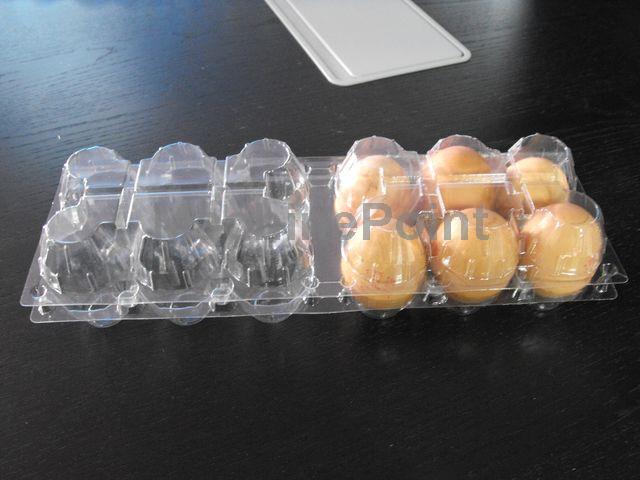

Available for sale too (ask for price) : Molds for chicken eggs and quails eggs
4 eggs
6 eggs L
6 eggs JUMBO
7 eggs JUMBO
9 eggs
10 eggs L
10 eggs XXL
12 eggs (3x4)
12 eggs (6x2) XL
12 eggs (6x2) XXL
15 eggs
18 eggs

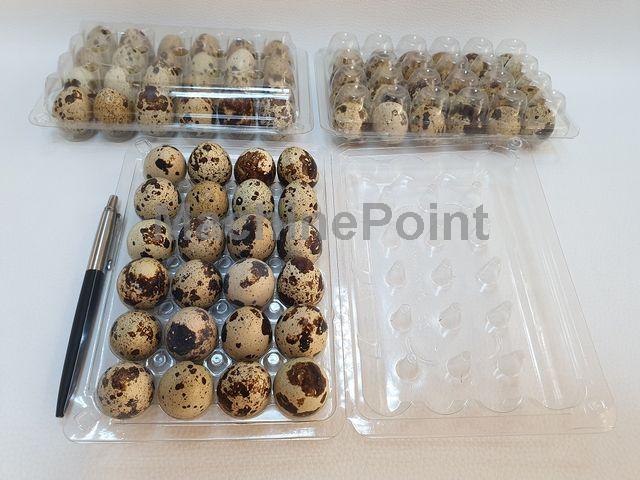

24 Quails Eggs
12 Quails Eggs

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Voltage: 400 V Triphase
Frequency: 50 Hz
