Used EUROMAC TB 3.06 T2 of 1995 for sale

1995 | Ref.: 300043172

Double-shaft film slitter-rewinders EUROMAC, We will be by your side all along the process of buying your machinery, from the initial assessment, accompanying you in the visits, legal and technical consultancy, and defined contracts that will protect you.


Data Sheet of Used EUROMAC TB 3.06 T2

Ref.: 300043172

Year: 1995

Brand: EUROMAC

Status:
For sale

Delivery time: Immediate


Ask for machine price Want to sell your machine?
Please accept marketing-cookies to watch this video.

Technical Specifications:


  • Working Width: 1350 mm
  • Parent Roll Diameter: 1000 mm
  • Final Roll Diameter: 600 mm
  • Speed: 500 m/min
  • Web Guides: Yes
  • Knife Type: Circular

Other Specifications:

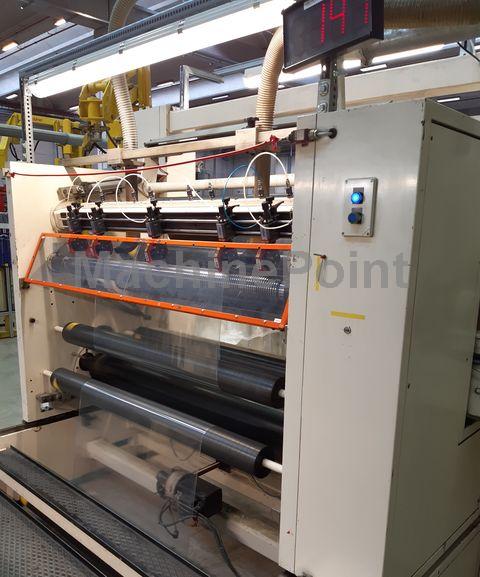

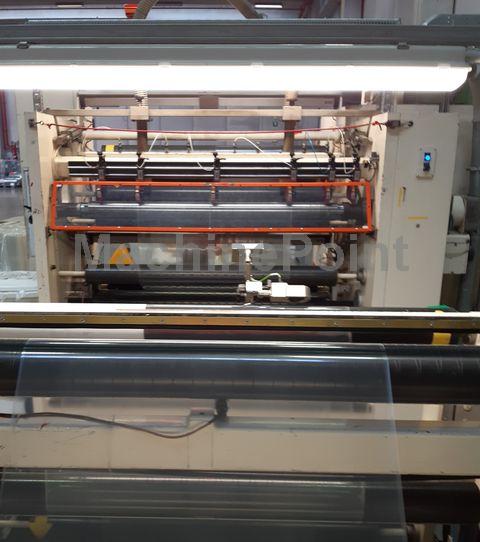

Slitter rewinder with automatic reels change

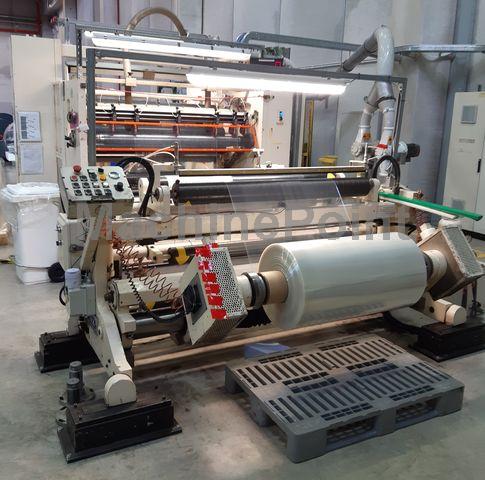

Unwinder SV 2.10 F with costant tension, hidraulic lift of the reels, Pneumatic brakes

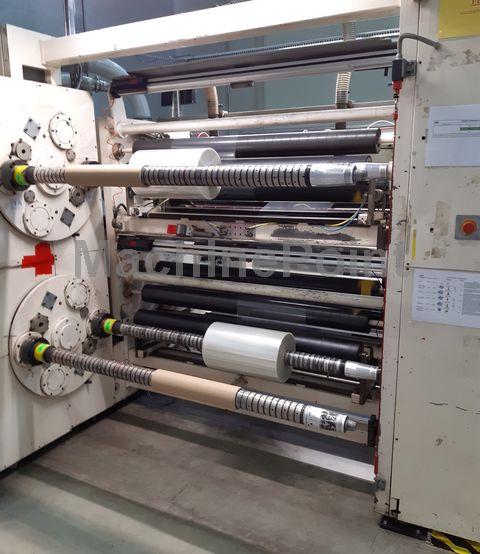

Double automatic rewinder with automatic change of the reels

Diam shafts 76 and 152 mm
Web Guide AEG-BST

Other Details:


Guarantee: Without guarantee

Current condition: Not running. Can be shown with material

Availability: Immediate

Voltage: 380 V Triphase
Frequency: 50 Hz
Voltage: 52 Kw
