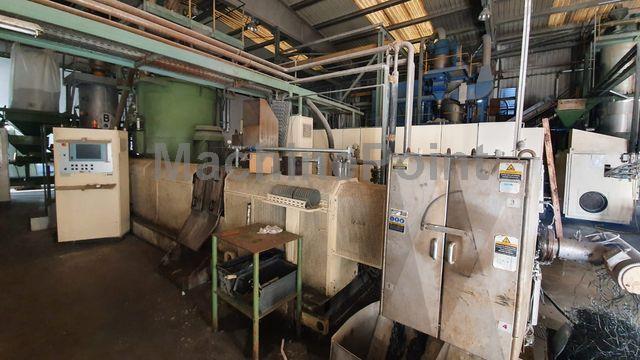

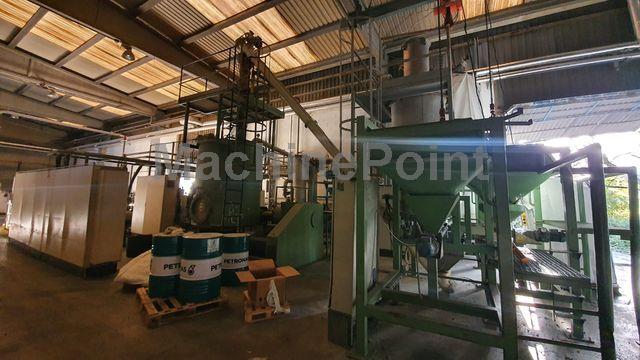

Used EREMA RGA 160 TE- VSV of 2001 for sale

Single screw repelletizing line EREMA, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.

Data Sheet of Used EREMA RGA 160 TE- VSV

Ref. : 300043433

Technical Specifications:

Screw Diameter: 160 mm

Output Capacity: 800 kg/h

Degassing System:Yes

Type Of Die Head:Spaghetti

Other Specifications:

Material : pet flakes, sheet and PET preform shredding

Complete line with:

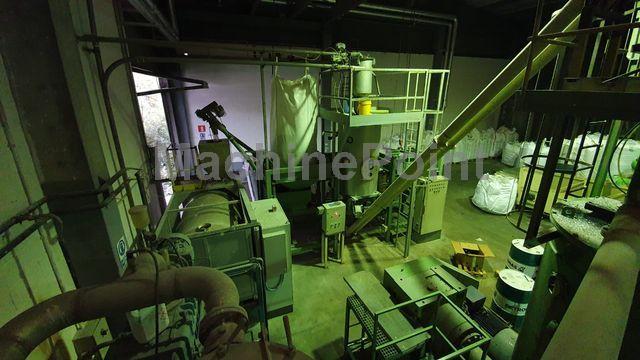

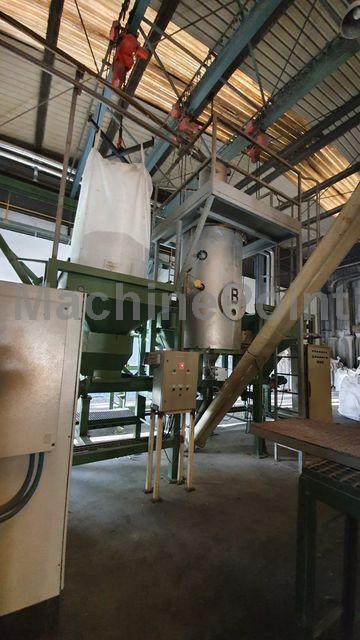

Big bag discharge system through hoppers to feed directly to the extruder or go through a previous drying process

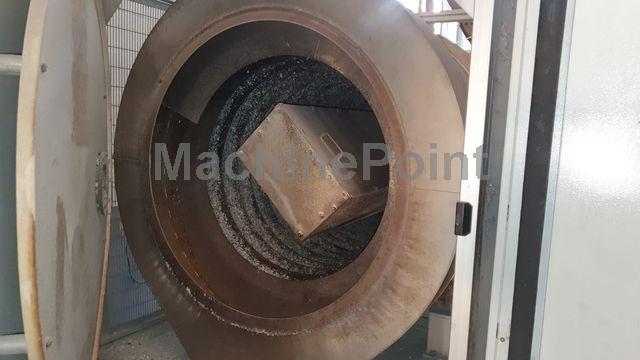

IRD Material drying system. Continuous heating, crystallization and drying of a wide variety of plastics and other bulk materials.

Double gate pneumatic slider with vacuum slice in vacuum tight execution and vacuum slice including feeding hopper with automatic feeding control.

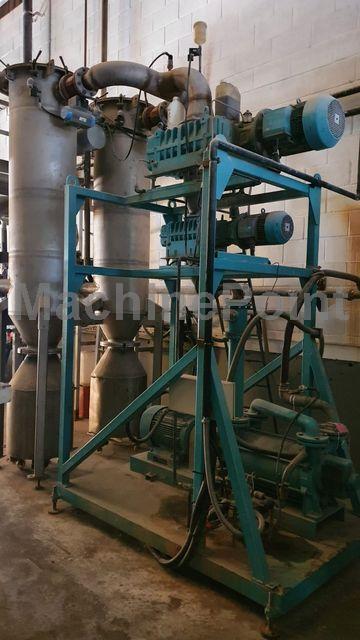

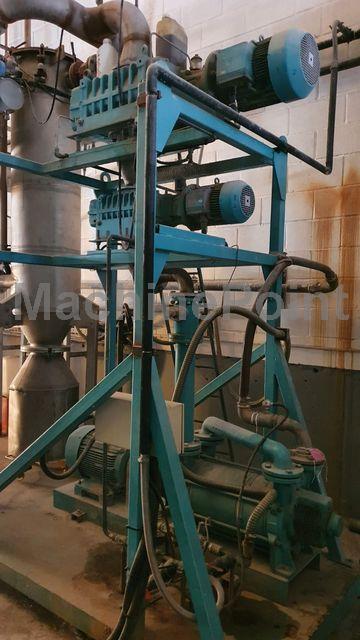

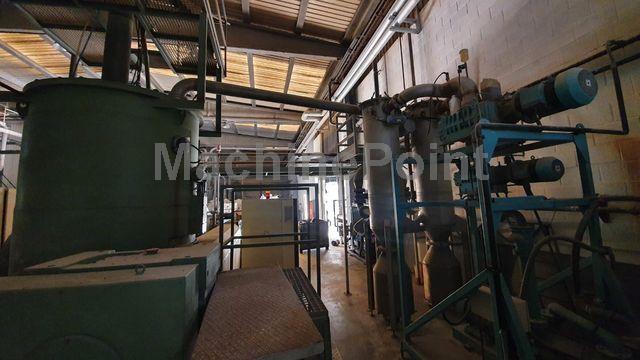

High-performance vacuum system for cutter compactor for special cleaning effect consisting of:
Vacuum pump system including all necessary piping as well as digital vacuum display on the control cabinet for vacuum of 1 O mb approx.

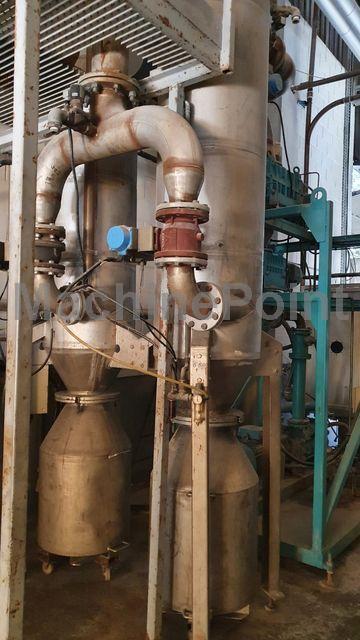

2 liquid cooled condensate tanks in parallel arrangement

The pumps included are 3 pumps of the following characteristics:

- 1 VH 600 - 18,5 kW water rings
- 1 VH 4000 m3/h- 11 kW Root pump
- 1VH1200 m3/h- 4 kW Root pump

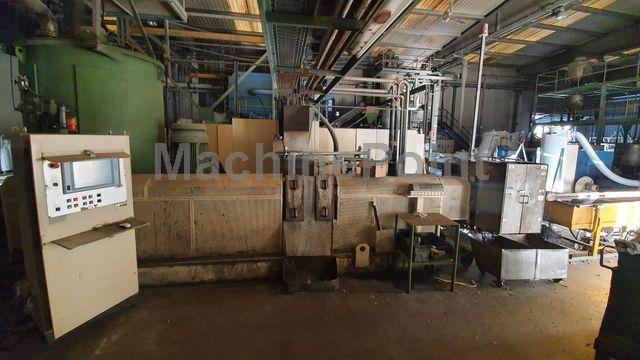

RM Combination RM 160 TE VSV

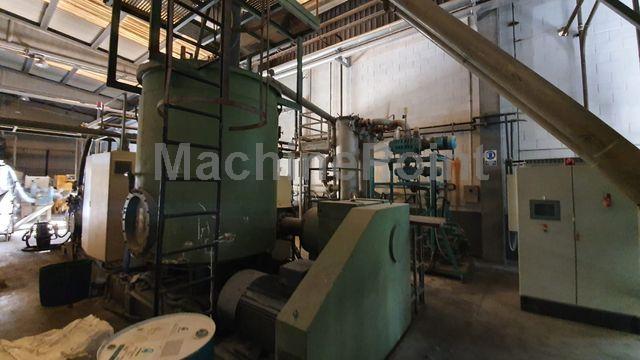

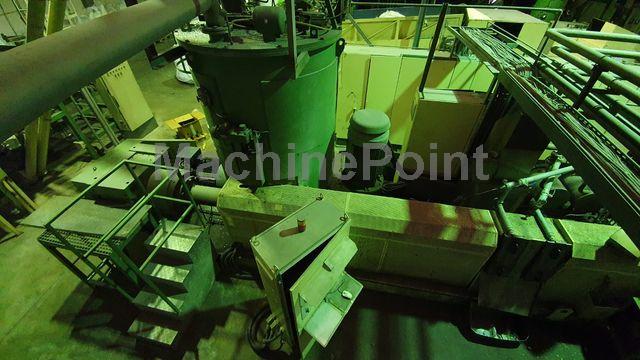

Vacuum cutter compactor/pre-drier combination with vacuum operated cutter densifier and with double vented extruder cylinder Patented design in its execution.
Extruder power - frequency controlled: 200 KW AC
Screw diameter : 160 mm
Effective screw length: 5483 mm
Screw speed, variable: up to 90 rpm
Heating capacity cylinder:68,2 KW
Heating zones cylinder: 6 zones
Heating capacity adapter: 5 KW
Heating zone adapter :1

Bimetal-extruder-cylinder in resistant execution
Extruder screw land cladded and nitrided
Double-vented cylinder,
Supported by high performance vacuum pump
Vacuum sealed screw bearing system
Extruder-cylinder liquid cooled

Shock sensor - vibration meter
Automatic 'Stop' of complete plant in case solid foreign matter exceeding a certain size is entrained into the cutter compactor.
Sensitivity adjustable.

Temperature control valve for liquid cooled extruder-cylinder
Melt pressure indicator

High-performance vacuum system for extruder consisting of:
Vacuum pump system including digital vacuum display on the control cabinet for vacuum of2 mb approx.
2 water-cooled condensate tanks in parallel arrangement, each with separate stop cocks for maintenance ( cleaning) during continuous operation.

The vacuum pumps included are two with the following characteristics:
- 1 VH 400 - 15 kW - water ring
- 1VH1200 m3/h-4 kW - root pump

Touch screen control system with PLC Siemens and PC

Screen changer SW 8/170 RTF with partial backflush system
Screen diameter: 8 x 170 mm
Screen surface total :1816 cm2
Heating capacity :47,6 KW
Heating zones :10
Admissible melt pressure: max. 400 bar
Power - hydraulic unit : 3 KW

Extruder die 48/5 -T-form
No. of holes (48)
Made of tempering steel, nitrided
Heating capacity (6,5 KW)

Previero pelletizer and vibrating screen.

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Voltage: 400 V Triphase
Frequency: 50 Hz
