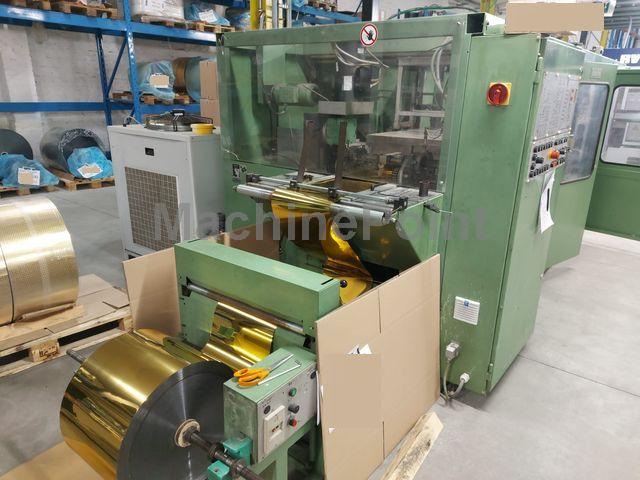

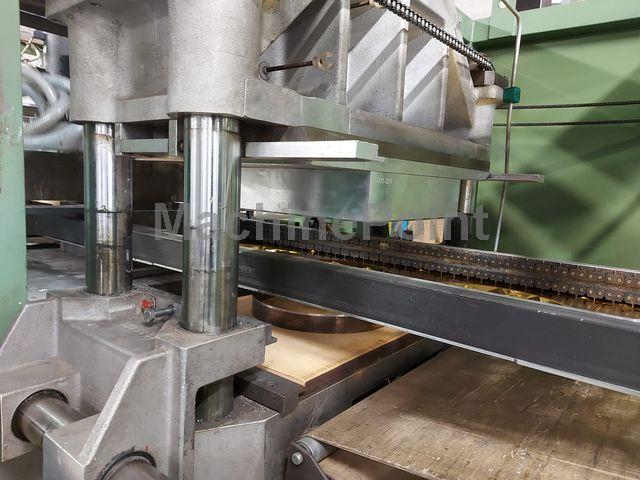

Used ILLIG RV53 of 1991 for sale

Thermoformer ILLIG, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.

Data Sheet of Used ILLIG RV53

Ref. : 300043856

Year: 1991

Brand: ILLIG

Status: For sale

Delivery time: > 3 months

Technical Specifications:

Forming Area (Vxh): 500x350

Depth Of Draw: 100 mm

Material Thickness (Max): 1,30 mm

Number Of Stations: 3

Products Type:Container

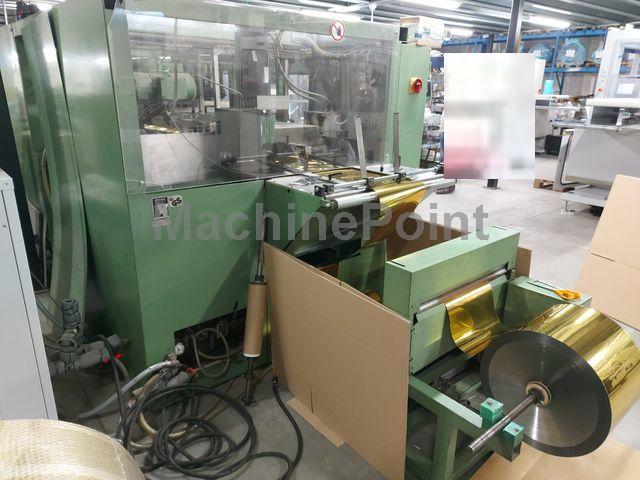

Feeding Systems:Roll fed

Other Specifications:

Forming machine
Forming area: min. 300 x 100mm
Part height above/below material level: 100/30mm
Material width: max./min. 540/340mm

Feed accuracy (marked on the skeleton bridges): +/- 0.3mm
Installed power upper heating: 9.8kW
Installed power lower heating: 5.6kW
Lower heater length: 500mm
Vacuum pump power: 40m3/h
Stroke of the lower clamping frame: 45mm
Table movement power: 3kN
Reel diameter (standard model): 600mm
Thermal energy to be dissipated when using the upper and lower heaters: max. 15,000kJ/h
Water consumption for cooling with tap water: approx. 0.7 m3/h

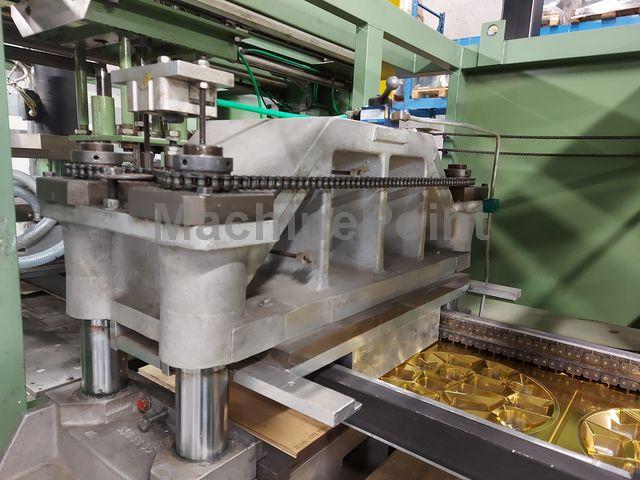

Cutting station
Cutting area on upper table: max. 500 x 350mm
Cutting area on lower table: max. 500 x 350mm
Cutting power: 200kN
Permissible workpiece height above material level: max. 100mm
Permissible workpiece height below material level with movable lower table: max. 30mm
Thread height on upper table: max. 100mm
Thread height on upper table: max. 80mm
Net height on lower table: max. 50mm
Installed power of the cutting net heater on the upper table: 4kW
Temperature of the heating plates: max. 150ºC

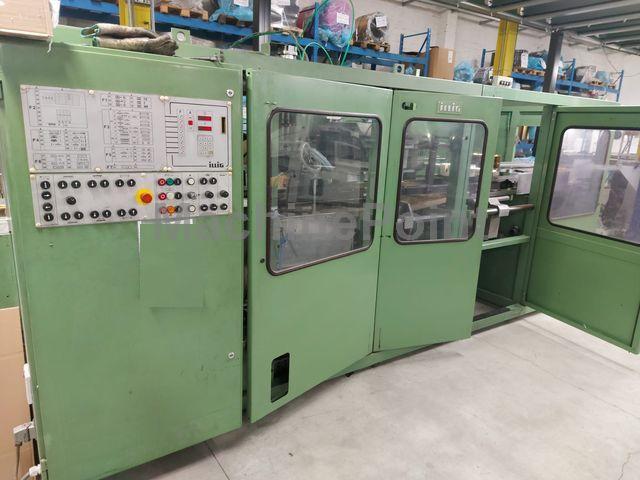

Complete machine
Output/minute: max. 20
Installed power with top heater: 13.7kW
Installed power with upper and lower heaters: 19.3kW
Installed power with upper, lower and cutting net heaters: 23.3kW
Air consumption/cycle, with max. strokes 45NL
Operating pressure: min. 6 bar
Recommended compressor power: 1200 NL/min.

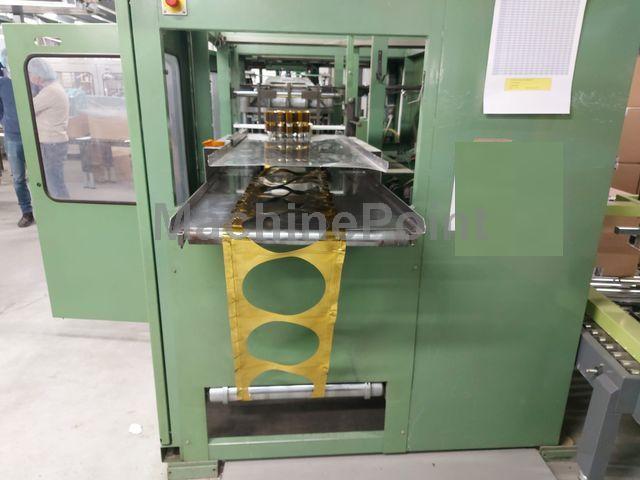

Waste skeleton reel diameter: max. 600mm
Material level to floor: 1100mm
Total width of the machine, including control cabinet: 1930mm
Total length including reel stand: 6330mm
Total height: 2050mm

New motor installed 1 year ago
New chains installed 2 years ago

Machine must go out October 2022
They prefer to run on this machine until June/July, but negotiable

Other Details:

Guarantee: Without guarantee

Current condition: Dismantled. Can't be seen in running condition

Availability: > 3 months

Voltage: 380 V Triphase
Frequency: 50 Hz
