Used MAMATA Vegaplus 1020 of 2015 Welding Width: 1000 mm for sale

2015 | Ref.: 300044252

Pouch making machine MAMATA , We will be by your side all along the process of buying your machinery, from the initial assessment, accompanying you in the visits, legal and technical consultancy, and defined contracts that will protect you.

Data Sheet of Used MAMATA Vegaplus 1020

Ref.: 300044252

Year: 2015


For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?
Please accept marketing-cookies to watch this video.

Technical Specifications:

  • Welding Width: 1000 mm
  • Bag Length (Max): 820 mm
  • Bag Length (Min): 50 mm
  • Cycles Per Minute: 210 U/min
  • Film Speed: 50 m/min

Other Specifications:

Electrical Power 220/240/380/415/480 VAC +/- 6% 50/60HZ
Total connected load 35KVA
Air consumption : 1200L/min
Water requirements : 20LPM

Bag length min/max : Minimum Bag size Possible: 50mm (W) x 50mm (L) and Maximum Bag size as 1000 mm (W) x 820 mm (L)
Welding width : Sealing tools are of 16 mm ( So, on Pouch each side can be of 8 mm width )

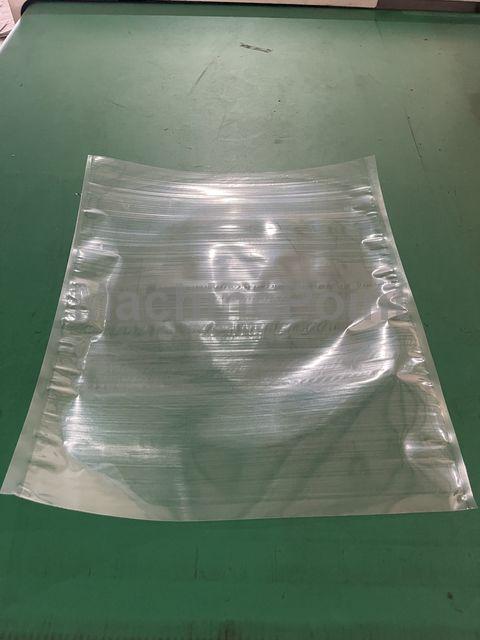

Bag Types: Three Side seal Vacuum Pouches from PA/PE, PE/PA/PE
Lanes : up to 4 lanes
Roll width: 1000 mm wide maximum roll width
Roll diameter: mm: 600 mm
Web Guide: Yes
Photoelectric cell: Yes - Datalogic
Control Panel: Mamata Make Microprocessor
Punching unit : V knotch and Euro holes

Basic machine with 1220mm wide double roll unwinder with edge guide
Airshaft and film reel exhaust sensor, 2x

Independent servo nip and dancer
sealing zone - 2 with 2900mm long platform
sealing zone - 1 with 2950mm long platform
Servo driven secondary index, CE safety, film Jam detection system
4 x servo driven transverse sealing/cooling module with tools
3 x servo driven long sealing/cooling module with tools
2 x euro hole punching unit (30x10x7mm) with slug collector
2 x V Knotch punch unit on one trolley, conveyor with stacking tray

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Voltage: 460 V Triphase
Frequency: 50 Hz
