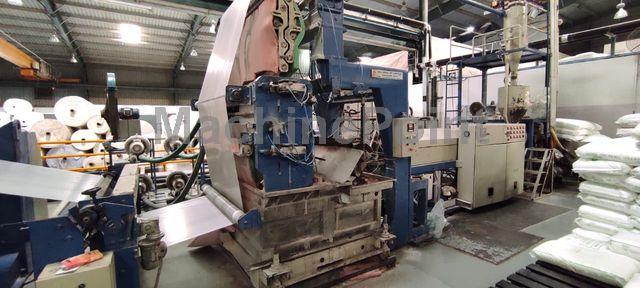

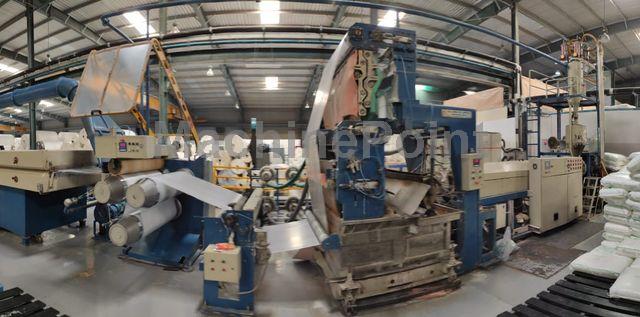

Used Extrusion lines for nonwovens: GCL - SIMA EXTRUSION LINES GS 130B-1400 of 2009

Data Sheet of Used GCL - SIMA EXTRUSION LINES GS 130B-1400

Ref.: 300044254

Brand: GCL - SIMA EXTRUSION LINES

Year: 2009

---

Other Specifications:

Extruder screw : 130mm
Line speed max. : 400mpm
Output : 550kg/hr

MODEL
Screw speed max. : 72rpm
Main drive power : 132kW
Barrel heating capacity (IR Heaters) : 72kW

SCREEN CHANGER CANDLE TYPE
Heating load : 9.6kW

IN-LINE GEAR PUMP SYSTEM
Motor rating : 7.5kW
Max. Speed : 77 rpm
Heating Load : 5 kW

INTEGRATED MELT PRESSURE GAUGE CUM MELT
TEMPERATURE SENSOR
Measuring Range : 0-400 Bar
Temperature Max : 0-400 ºC
With melt temperature indicator for max.: 0-400ºC

TEMPERATURE CONTROLLED LOCK-OUT DEVICE
Protection of Extruder against cold start-up.

CONNECTING PARTS BETWEEN EXTRUDER AND SHEET DIE
T-DIE
SPECIFICATION
Slit width : 1500mm
Type of lip-Flexible non-exchangeable plain lip
Control zones : 5
Heating load : 24.6kW

GRAVIMETRIC DOSINGNUNIT 4 STATION AERO DRY

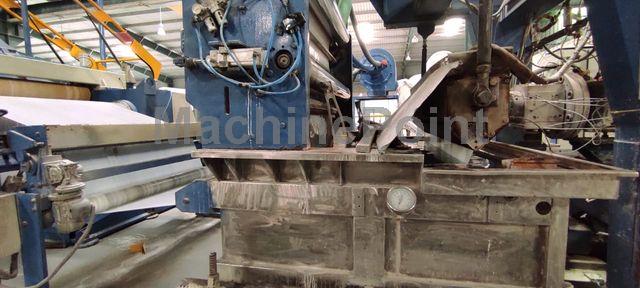

WATER QUENCH TANK
Aspiration Blower Motor : 5.5kW
Take up roller : 5.5kW
Air knife : 4
Air Knife motors : 4kW

SINGLE STATION SLITTER : 3

EDGE TRIM RECYCLING UNIT WITH MIXER
Shredding Mill Motor : 3.7kW
Blower Motor : 2.2kW

HOLDING UNIT
Diameter : 350mm
Holding Unit motor rating : 5.5kW

Holding Unit max speed : 67 mpm

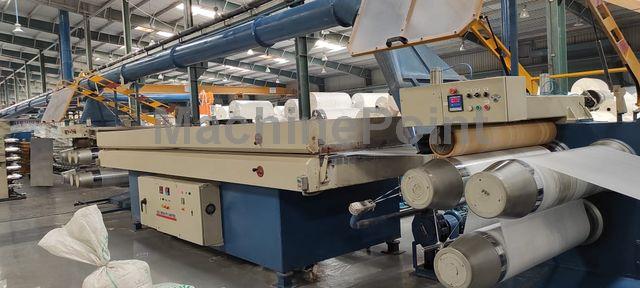

HOT AIR OVEN
Length of Heating Channel : 6mtrs
Fan Motor - 2 Nos. : 5.5kW
Heating Load : 48kW
Air Velocity Adjustable

MODULAR STRETCHING AND ANNEALING UNIT
Diameter : 350mm
Four Standard Godets
Two Watered cooled rollers.

Stretching Unit motor rating : 30kW
Annealing Unit motor rating : 22kW
Stretching Unit max speed : 425mpm
Annealing Unit max speed : 430mpm

SYNCHRONIZATION OF GODET SPEEDS WITH MELT PUMP
TAPE EXTRACTION DEVICES
Blower Motor : 15kW

2 x AIR CONDITIONED FOR DISTRIBUTING PANEL : 2 TON

ORIENTATION OF TAPELINE: RIGHT HAND
TAPE WINDER
MODEL GCW-200-HX/LX
Tape width range : 1.7 to 4 mm
Denier range : 740-2500
Length of Traverse : 200mm
Bobbin core ID : 31mm
Bobbin core length : 220mm
Maximum bobbin diameter : 160mm
Winding speed : 500 mpm
Number of bobbin winders : 264
Connected load : 32kW
