Technical Specifications:
Machine Type:Blister
Material : PVC, PET, PS, PSA
Forming Area (Vxh): 500 x 300 mm
Other Specifications:

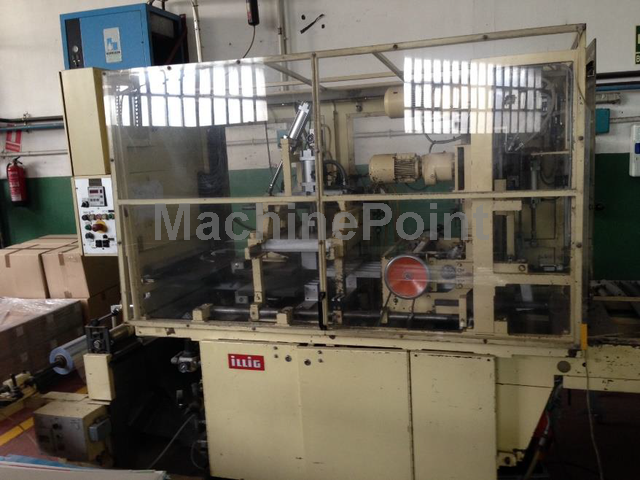

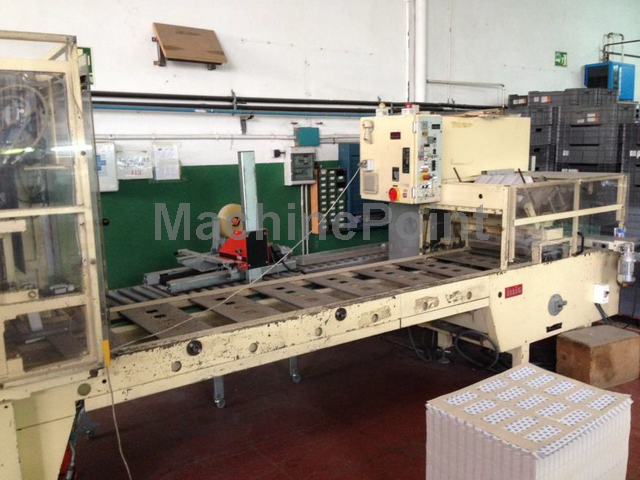

Illig HSA 50b :
Max sealing area : 500 x 300 mm
Max blister depth : 80mm
Max carton size :
1-fold : 500 x 300 mm
2-fold : 248 x 300 mm
3-fold : 164 x 300 mm
4-fold : 122 x 300 mm
5-fold : 97 x 300 mm
6-fold : 80 x 300 mm
7-fold : 68 x 300 mm
8-fold : 56 x 300 mm
Min carton width : 50mm
RD50 :
Max sealing area : 500x300mm
Max drawing depth : 80mm
Min Cutting width of the single blister : 45mm
Max film width : 500mm
Max foil feed : 300mm
Min foil feed : 50mm
Max Form Closing Force : 45kN
Max forming force : 35 kN
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 380 V Triphase
Frequency: 50 Hz
