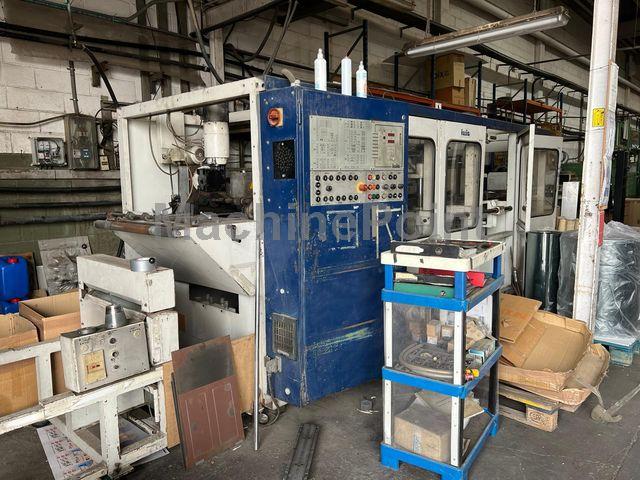

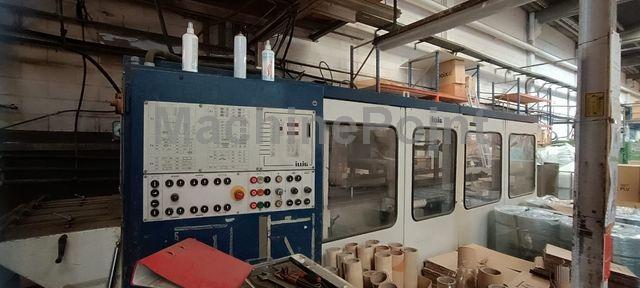

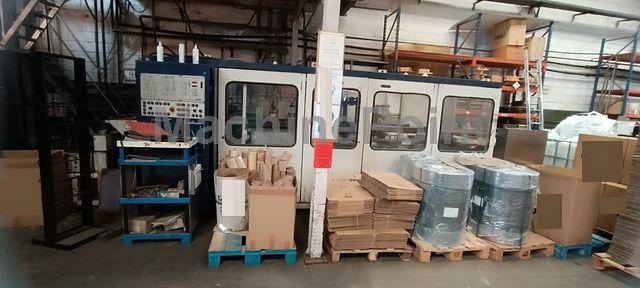

Used ILLIG RV53 of 1989 for sale

ROK 550 reel holder, for reels up to 1200mm diameter Max. sheet width: 550mm Max. reel weight: 870kg Unwind speed with servomotor: 1-40m/min Unwind speed in manual mode up to 60m/min Max. sheet feed required by machine: 800mm Length: 1630mm Width: 1230mm Height: 980mm Weight : 360 Kg Forming machine : Forming area min-max: 300x100/500x350mm Tool width between transport chains min/max: 320/520mm Tool length in feed direction min/max: 124/374mm Max. thermoformed part height: 100mm Sheet width min-max: 340-550mm Chain spacing per side max: 15mm Upper heater: 12.6 kW Lower heater: 9.8 kW Upper/lower heater length: 1125-875mm Max. vacuum pump capacity: 40m3/h Max. clamping force: 70 kN Max. forming pressure: 3 bar Compressed air tank: 45 liters Total forming station electrical power: 29.1 kW Max. output: 45 cycles/min Auxiliary cutting : Max. output: 40 cycles/min Max. cutting area: 500x350mm Tool width between conveyor chains max: 520mm Tool length in feed direction max: 374mm Total electrical power of auxiliary cutter: 3.5 kW Max. cutting force: 120 kN Cutting press : Max. asynchronous motor (servomotor) speed: 23 (35) strokes/min. Total electrical power for thread heating: 3.9kW Max. cutting force: 400 kN Total electrical power of cutting press (servomotor): 6.4 (7.1) kW Stacker : Asynchronous motor speed (servomotor) max: 23 (45) strokes/min Max. stacking height: 270mm Stacking station total electrical power (servomotor): 1.2 (1.0) kW 12/12/2023 : 25926 working hours

Forming surface min/max 300x100 mm/ 500x350 mm Sheet width min/max 300/550 mm 22 cycles/min in dry cycle Shaped piece height above/below sheet surface 100/40 mm Cutting force 300 kN Working hours 34178 Overhauled by ILLIG technicians in 2016, including cutting press toggle Cutting press motor replaced 2021 Forming press motors replaced 2016 and 2020 HMI replaced 2022

Illig HSA 50b : Max sealing area : 500 x 300 mm Max blister depth : 80mm Max carton size : 1-fold : 500 x 300 mm 2-fold : 248 x 300 mm 3-fold : 164 x 300 mm 4-fold : 122 x 300 mm 5-fold : 97 x 300 mm 6-fold : 80 x 300 mm 7-fold : 68 x 300 mm 8-fold : 56 x 300 mm Min carton width : 50mm RD50 : Max sealing area : 500x300mm Max drawing depth : 80mm Min Cutting width of the single blister : 45mm Max film width : 500mm Max foil feed : 300mm Min foil feed : 50mm Max Form Closing Force : 45kN Max forming force : 35 kN

Unwinder RO540 Thermoforming unit Positive vacuum forming Negative forming by compressed air Forming area max. : 500 x 300mm Forming area min.: 100 x 35mm Depth of draw positive max.: 80mm Material width max.: 500mm Material roll diameter max. : 900mm Width of cut, single blister, multi - format, layout min.: 47mm Feed length max. 300 mm Feed length min. 35 mm Mold closing force max.: 45 kN Sealing unit Sealing area max.: 500 x 300mm Blister depth when sealed from above max.: 80mm Blister depth with bottom sealing max.: 40mm Card size (card with EURO hole, 1-up format layout) : 500 x 340 mm Card size (8-up format layout): 58 x 340mm Card width min.: 40mm Sealing force max.: 45 kN Conveyor belt Punching unit to cut double packs or to make euro holes

ROK 550 reel holder, for reels up to 1200mm diameter Max. sheet width: 550mm Forming machine: Tool width between max. conveyor chains: 524mm Tool length in feed direction: 390mm Forming height above/below sheet: 100/40mm Thermoformed part height: 100mm Servo-driven cutting station Stacker with counting and unloading device Working hours : 22650
