Technical Specifications:
Material : PVC,PET,PS
Forming Area (Vxh): 500x350
Depth Of Draw: 100 mm
Material Thickness (Max): 1.3 mm
Number Of Stations: 3
Products Type:Container

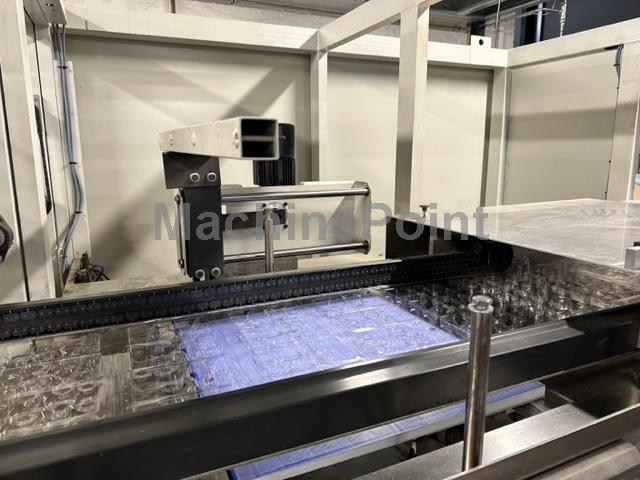

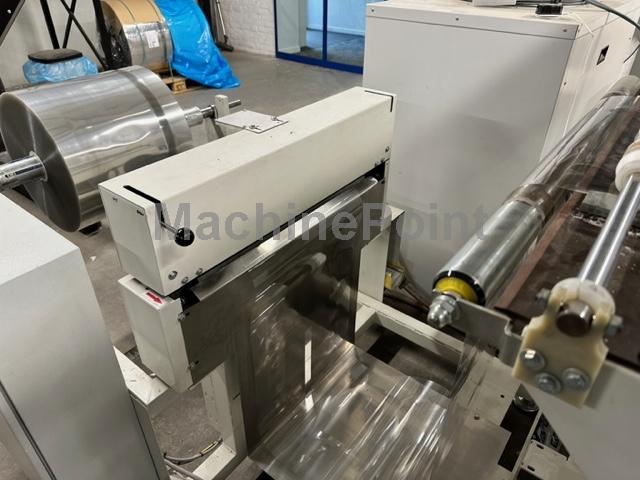

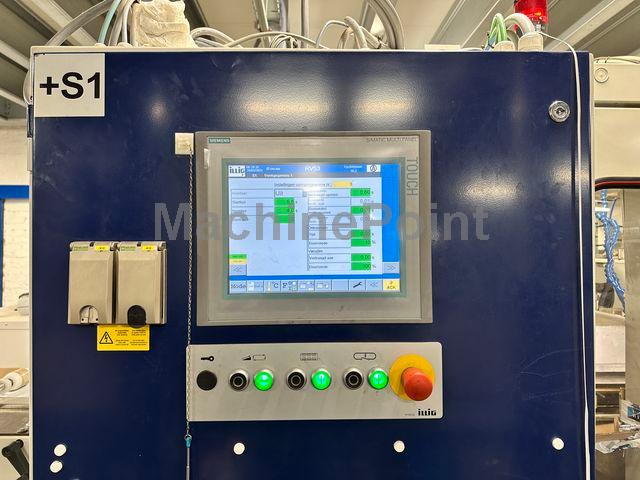

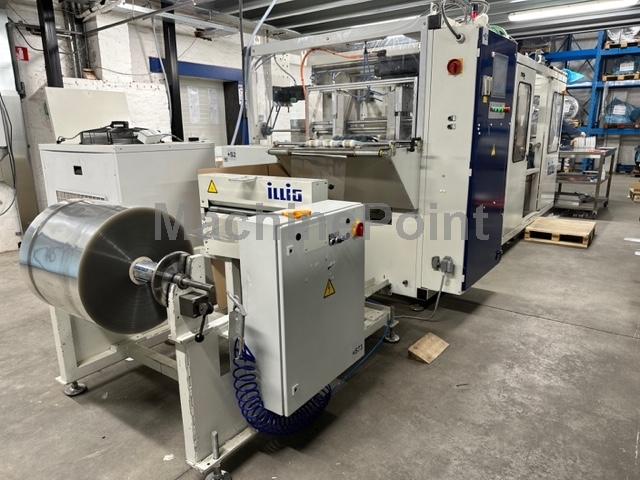

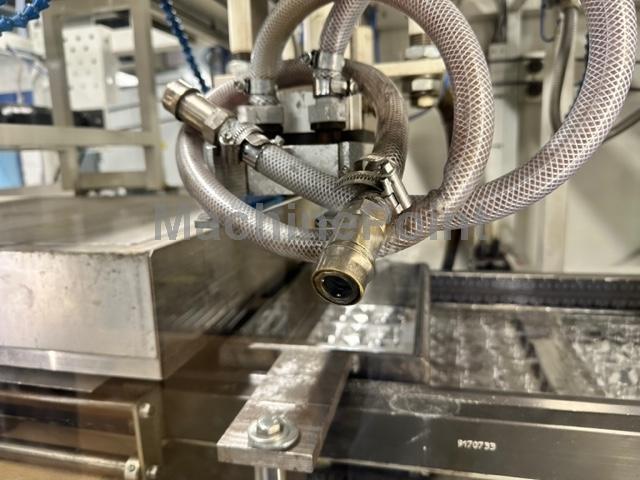

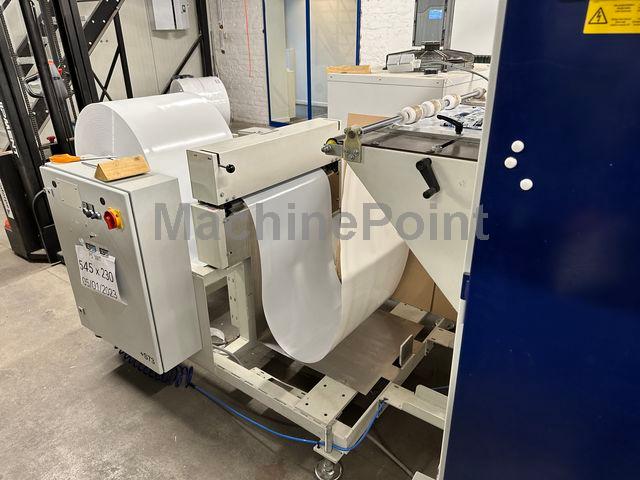

Feeding Systems:Roll fed
Other Specifications:
Forming machine ;
Forming area min. : 300 x 100 mm
Material width max./min. : 540/340 mm
Part height above/below working height : 100/30 mm

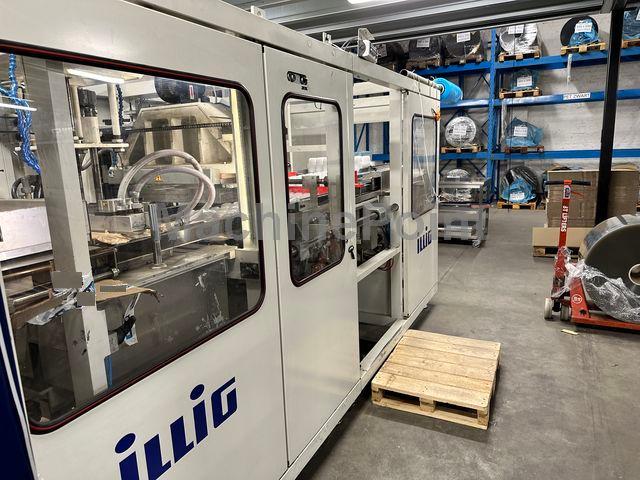

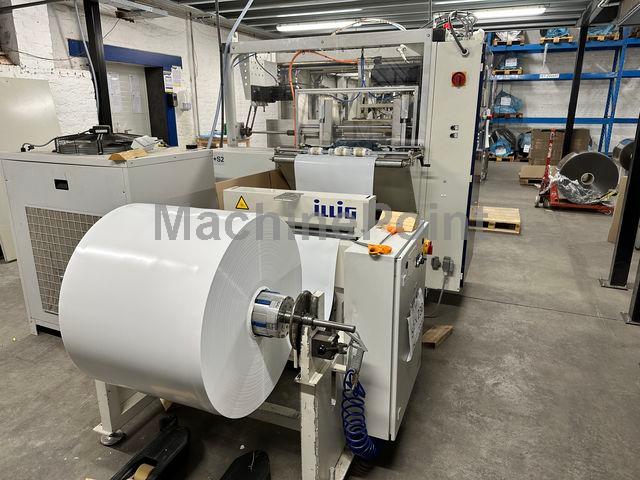

Material roll diameter : 1200 mm
Suction capacity of vacuum pump : 40 m3/h
Installed electrical load of top heater : 9,8 kW
Length of top heater : 845 mm
Installed electrical load of bottom heater : 5,6 kW
Length of bottom heater : 500 mm
Material plane : 1100 mm
Max. cycle rate.15/min

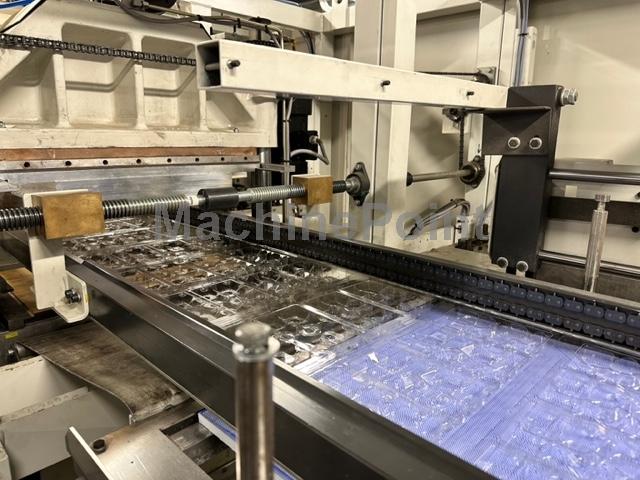

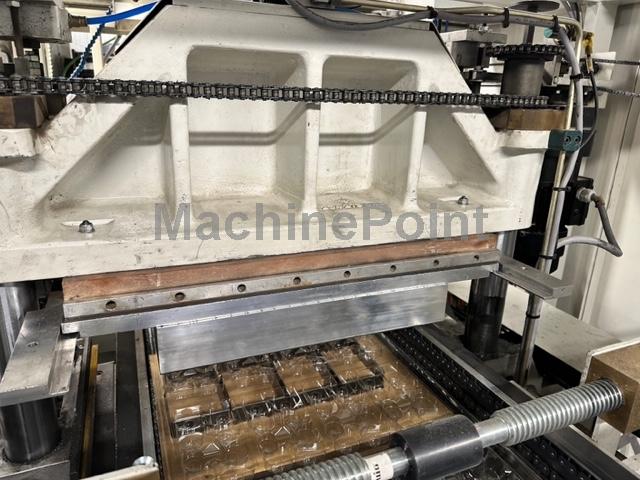

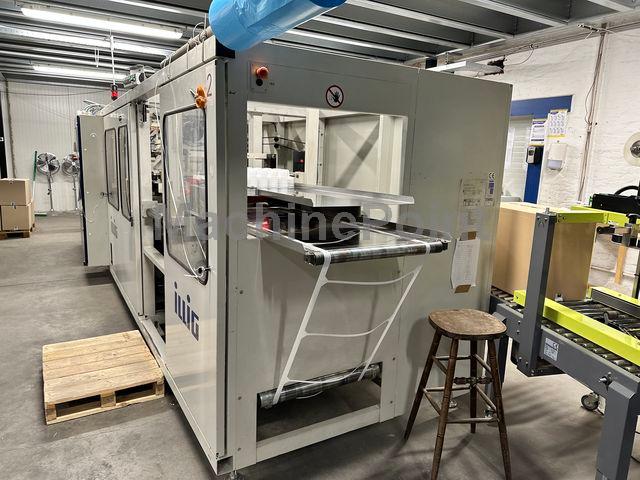

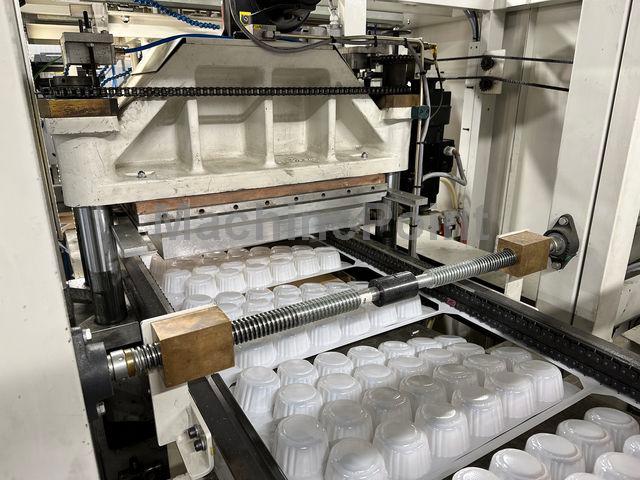

Steel rule die punch ;
Punching area on top table : 500 x 350 mm
Punching area on bottom table : 500 x 335 mm
Punch part height above/below material plane : 100/30 mm
Punching force : 20000 daN
Installed electrical load of steel rule die heater : 4,0 kW
Heater plate temperature : max.150° C
Tool installation height on top table max./min : 100/80 mm
Tool installation height on bottom table : 50 mm
Drive power.1,5 kW
Overall data for forming machine + steel rule die punch
Max. cycle rate.15/min
Total connected electrical load with bottom heater : 19,3 kW
Total connected electrical load with bottom heater and steel rule die heater : 23,3 kW
Total air consumption for max. stroke length : 45 NL
Operating pressure : min.6 bar / max 10 bar
Recommended compressor power (effective) : 1200 NL/min
Max. punched grid roll diameter : 600 mm
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Voltage: 400 V Triphase
Frequency: 50 Hz
