Technical Specifications:
Material : PS – PS/PE – PE/PS/PE– PVC – PET – ABS
Forming Area (Vxh): 700x500
Depth Of Draw: 120 mm
Material Thickness (Min): 0.15 mm
Material Thickness (Max): 2 mm
Number Of Stations: 3
Other Specifications:
Forming - cutting - stacking

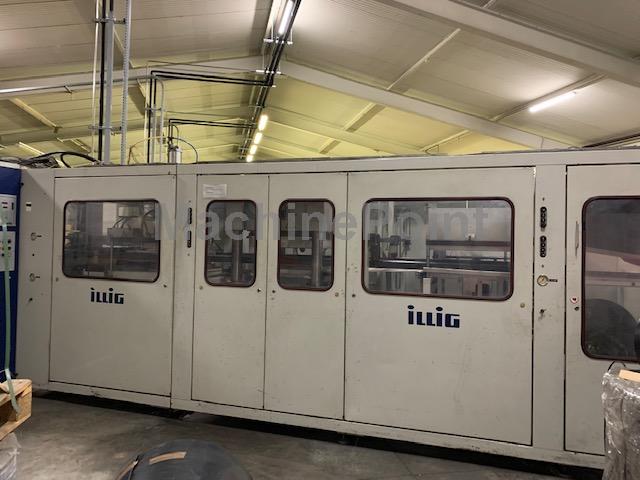

Forming machine:
Min-max forming area : 400x250-700x500
Min-max film width: 440-750mm
Height of parts above / below the film level: 120 / 40mm
Diameter of Film Reel: 1200mm
Connected electric power from upper-lower heater: 16.2kW
Level of the film: 1300mm
Max speed: 20 / min
Weight: 2600kg
Vacuum forming only

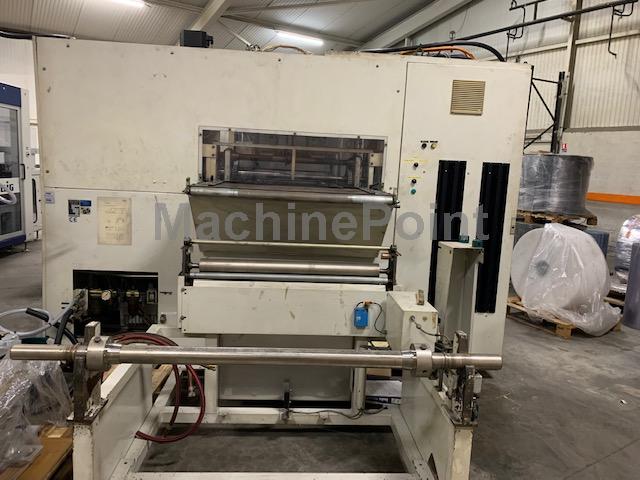

Cutting unit :
Cutting area at top and bottom table: 700x500mm
Cutting height above / below film level: 120 / 40mm
Cutting force: 50,000 daN
Connected electric power of heating: 6.4kW
Max temperature of the heating plate: 200 C
Cooling capacity for heating: 15,000 kJ / h
Tool mounting height to upper table max / min: 140 / 80mm
Tool mounting height to bottom table: 60mm
Power requirement: 3kW
Weight of the machine: 4.000kg

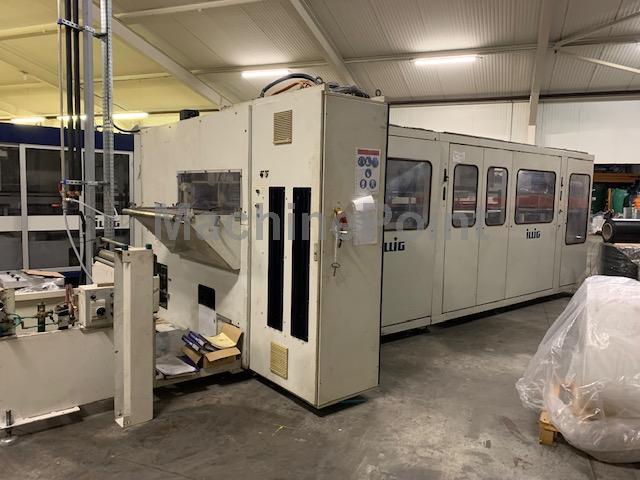

Complete features Forming machine + cutting unit :
Max speed: 20 / min
Total electric power with lower heater: 46kW
Total electric power with the lower heating and heating of the cutting unit : 52.4kW
Total air consumption with stroke lengths max: 35 NL
Operating pressure min: 6bar
Recommended compressor power (effective): 1200 NL / min
Max. Diameter of waste reel (skeleton): 600mm
Weight of the machine: 6600kg

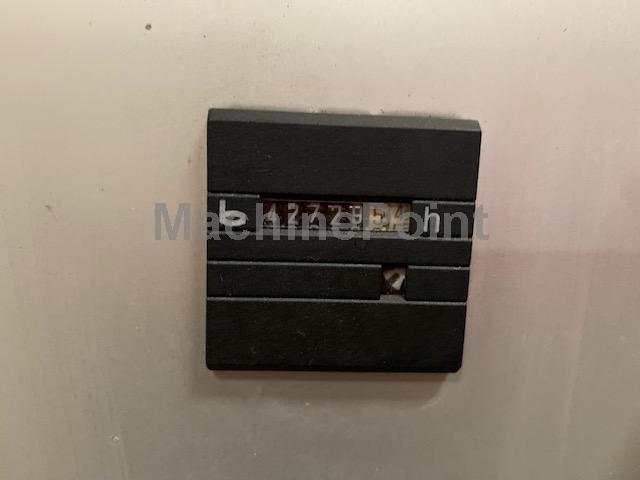

Working hours : 42729
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown with material
Availability: Immediate
