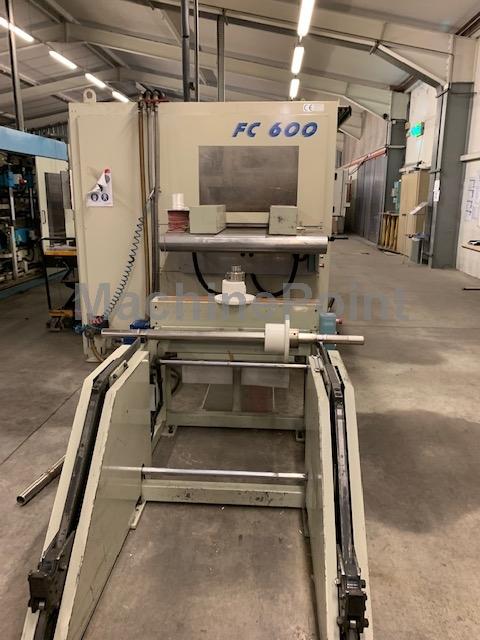

Used W.M. WRAPPING MACHINERY SA FC 600E of 2010 for sale

Complete thermoforming line: Extruder EDV 120, Thermoforming machine WM INTEC 1000, Grinder CMG T35140 R, Automatic packing machine STS MP 200E Actual product: Plates PS Single screw extruder EDV 120: Screw: 120 mm L/D: 35 Sheet width: 1060 mm Sheet thickness: 0.2-0.5mm Output capacity: 800 Kg/h Continuos hydraulic screen changer MAAG Hydraulic power pack with oil tank, motor and pump Gear pump Static Mixer Flat die head - adjustable sheet thickness from 0.18 up to 1 mm Calender Thermal condition station Optical Sheet temperature reader Thermoforming machine TFT 1000 Forming area (max.): 1000 x 1000 mm Sheet width: 670-1050 mm Sheet thickness (max.): 0,5 mm (HIPS) Lower platen's run: 70 mm Grinder CMG T35140 R (Year:2009) Suction unit Water chiller Automatic packaging machine STS MP 200E (Year: 2009) Sealing of HDPE and BOPP foil. Capacity to stack piles of 12-20-20-50 and 100 plates. For extra priceare are avaliable: Mould for plate Termostampi S.r.l.: 205 mm, 16 cavities (moulding + cutting) Mould for plate Termostampi S.r.l.: 167 mm, 25 cavities (moulding + cutting).

Forming/Cutting/Stacking Vacuum and air pressure thermoforming (Possibility to form and cut in the same station) Max. external forming mould dimensions: 750x570mm Max. mould dimensions with pneumatic side clamping frames: 750x570mm Max part height up/down: 130mm Forming unit platen closing force: 750 kN Stamping press closing force: 600 kN Servomotor adjusts film translation pitch Dual upper and lower heating panels with 18 independent longitudinal row control zones (9 upper and 9 lower) with safety control for material overheating Exclusion of the first 3 transverse rows, upper and lower heaters Water blocking solenoid valve with device for draining mold cooling water Forming unit with 2 independent, servomotor-driven, electrically-driven toggle plates (clamping force 750 kN) Device for electric height adjustment of lower forming platen Device for electrically adjusting the cutting dimension of the upper forming platen Electric servomotor-driven die-cutting press with motorized vertical die-cutting adjustment (upper die). Stacker with vacuum and air expulsion (downwards) Available mid-July Working hours to 05/03/2024 = 48 733 Included : 2 reels unwinding support bars (Origins) 4 cores 110 x 85 (Origins) 3 Plastic skeleton support bars (Origins) Venturi suction system (Own Manufacturing) - Activated Electric vacuum pump suction system (Original) - Not activated 1 Plate 600 plugs on threaded holes supporting suction cup rod (Origin) Visual operator counter (Own manufacture)

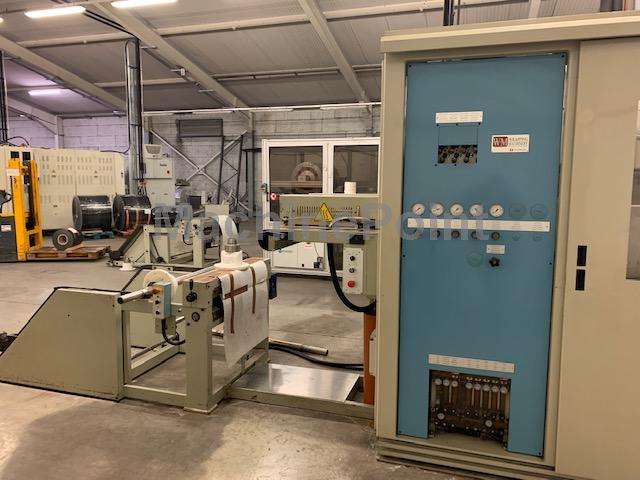

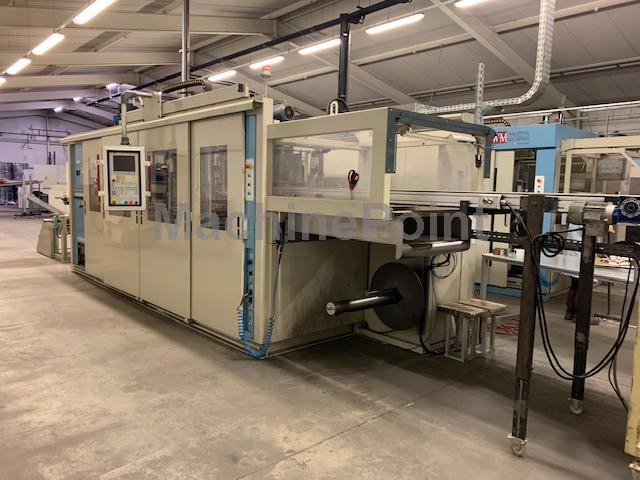

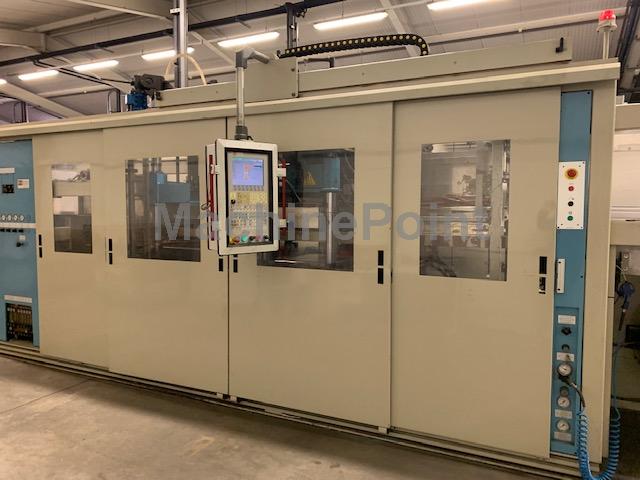

MAIN PLANT UNITS: unwinder auto-centering sheet feeding sheet feeding bedplate conveying sheet heating forming cutting stacker winder AUTOMATIC UNWINDER Max. reel diameter : 1200mm Max. sheet width : 900mm Reel holder Nr. : 1 Unwinding : Automatic Power : 1.1kW THERMOFORMING MACHINE Maximum size of mould : 750 x 530mm Maximurm size of mould with clamping frame : 720 x 530mm Upper forming depth. : 120mm Lower forming depth. : 120mm Sheet width : 250 - 780mm Max. pitch of the sheet traverse : 530mm HIPS sheet max. thickness : 1.8mm. Polystyrene foam sheet thickness : 3mm Platens stroke (lower- upper ) : 150mm Length of heaters : 1570mm Upper heating power : 31.2kW Lower heating power : 31.2kW Max. vacuum cycles : 50/min Vacuum pump power : 2.2kW CUTTING UNIT Max. cut dimension : 730 x500mm Upper height : 120mm Lower height : 120mm Platen gripping power : 50.000daN a 1mm Lower platen stroke : 150mm Upper platen stroke : 150mm Power installed : 7.8kW VERTICAL STACKER Stacking dimensions : 730 x 500mm Lower height : 120mm Upper height : 120mm SCRAP WINDER Max. diameter of the reel winding : 600mm

MAIN PLANT UNITS: unwinder auto-centering sheet feeding sheet feeding bedplate conveying sheet heating forming cutting stacker winder AUTOMATIC UNWINDER Max. reel diameter : 1200mm Max. sheet width : 900mm Reel holder Nr. : 1 Unwinding : Automatic Power : 1.1kW THERMOFORMING MACHINE Maximum size of mould : 780 x 570mm Maximurm size of mould with clamping frame : 750 x 570mm Upper forming depth. : 130mm Lower forming depth. : 130mm Sheet width : 250 - 810mm Max. pitch of the sheet traverse : 570mm HIPS sheet max. thickness : 1.8mm. Polystyrene foam sheet thickness : 3mm Platens stroke (lower- upper ) : 150mm Length of heaters : 1775mm Upper heating power : 41kW Lower heating power : 41kW Max. vacuum cycles : 45 Vacuum pump power : 2.2kW CUTTING UNIT Max. cut dimension : 760 x550mm Upper height : 130mm Lower height : 130mm Platen gripping power : 60.000 daN Lower platen stroke : 150mm Upper platen stroke : 150mm Power installed : 7.8kW VERTICAL STACKER Stacking dimensions : 760 x 550mm Lower height : 130mm Upper height : 130mm SCRAP WINDER Max. diameter of the reel winding : 600mm

3 stations : Forming / Cutting / Stacking Max. reel diameter: 1200 mm Sheet width: 900mm Heater length: 1570mm Closing force: 50,000daN Speed (dry cycle) : 40 cycles/min
