Used MAINTOOLS Multi Layer Pipe (PE-AL-PE) of 2010 for sale

2010 | Ref.: 300045734

Extrusion line for pipes and tubes (unclassified) MAINTOOLS, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.

Data Sheet of Used MAINTOOLS Multi Layer Pipe (PE-AL-PE)

Ref.: 300045734

Year: 2010

Brand: MAINTOOLS

Status:
For sale

Delivery time: < 1 month

Ask for machine price Want to sell your machine?
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine
MAINTOOLS - Multi Layer Pipe (PE-AL-PE) - Used machine

Technical Specifications:

  • Maximum Diameter: 32 mm
  • Minimum Diameter: 10 mm
  • Screw L/D Ratio: 30

Other Specifications:


Complete used multi-layer pipe (PE-AL-PE) extrusion line from year 2010
suitable for pipes from 10 - 32 mm
Including tools for diameter 16mm

Technical Data:
Water connection 2“ / consumption approx. 10m³/h
Air consumtion approx. 20m³/h
Connected load 3 x 400V 50Hz +N +PE
Fuse 3x 250A / 5x 120mm² CU
Operating hours: approx. 15.000

Line speed/size:
Size: 16x2mm - 25m/min speed
Size 20 x 2,25 mm - 16m/min speed
Size: 25 x 2,25 mm - 13m/min speed
Size: 32 x 3 mm - 10m/min speed

Parts of the line:

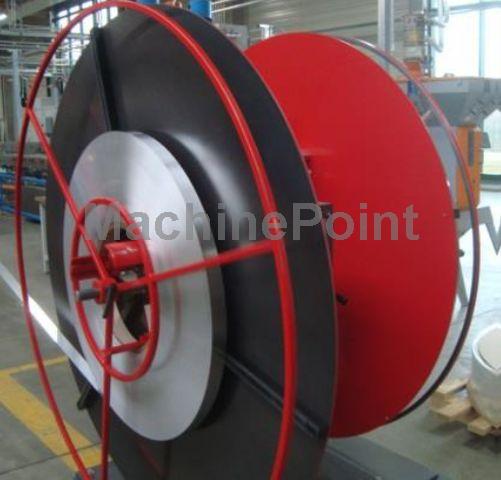

Item 1) 1 piece Band unwinder
Item 2) 1 piece Band buffer

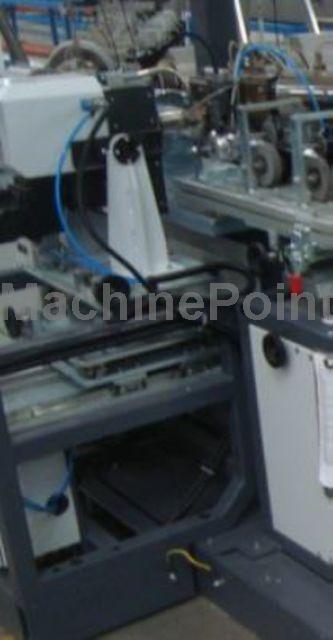

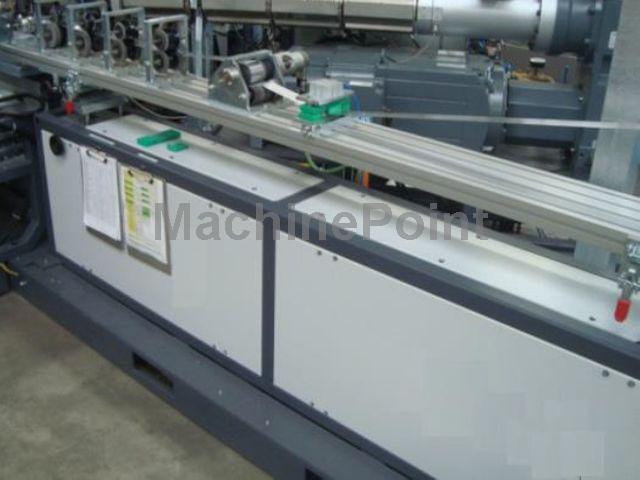

Item 3) Pipe forming station
Item 4) Welding machine

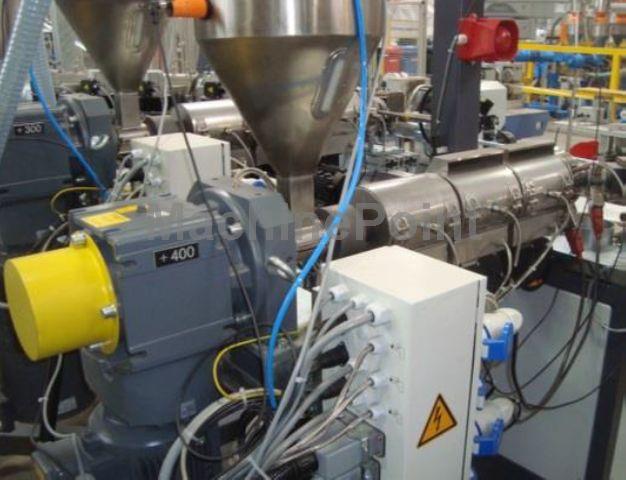

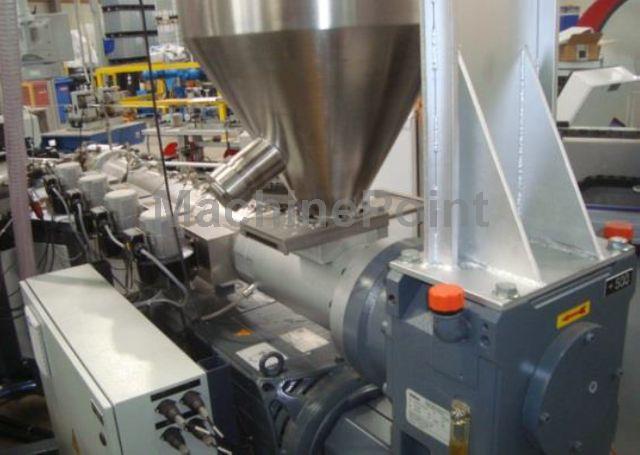

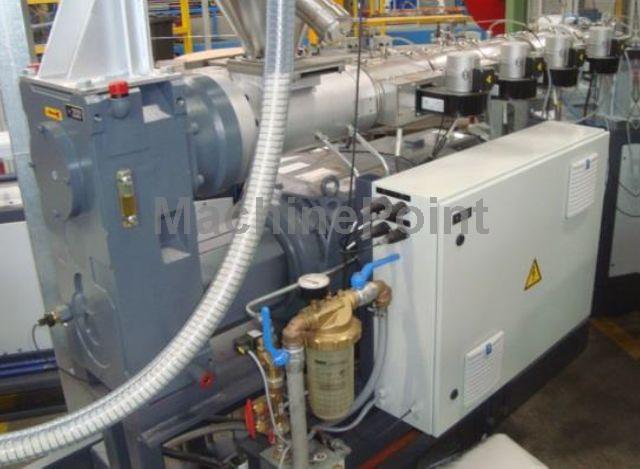

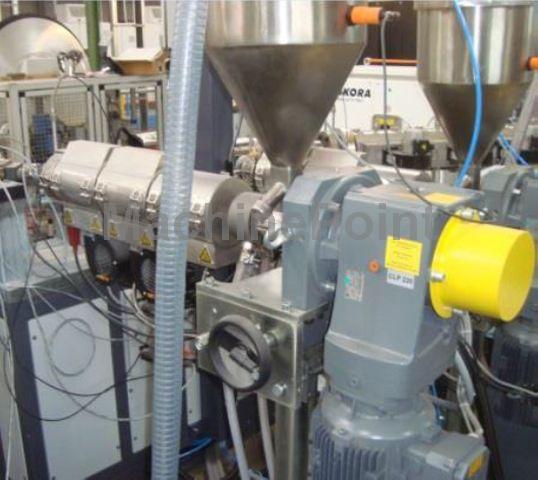

Item 5) Extruder A (inner layer PE)
Manufacturer: battenfeld-cincinnati 45-30 D
Item 6) Extruder B (glue for inner layer)
Manufacturer: battenfeld-cincinnati 30-25 D
Item 7) Extruder C (glue for outer layer)
Manufacturer: battenfeld-cincinnati 30-25 D
Item 8) Extruder D (outer layer PE)
Manufacturer: battenfeld-cincinnati 45-30 D

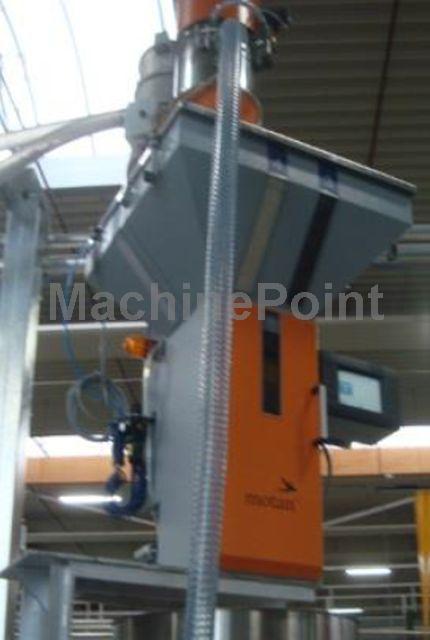

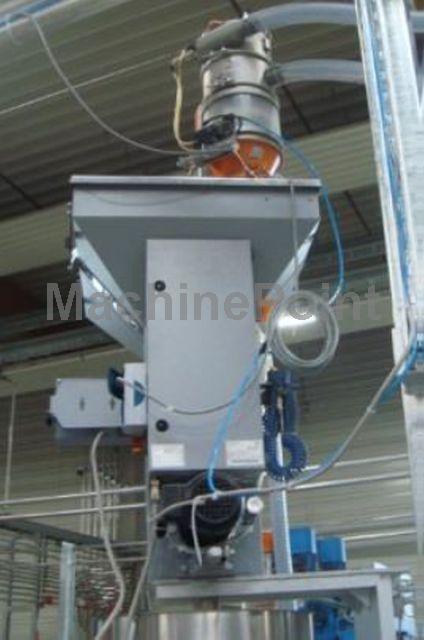

Item 9) Gravimetric dosing unit for extruder A & D
Manufacturer: Montan

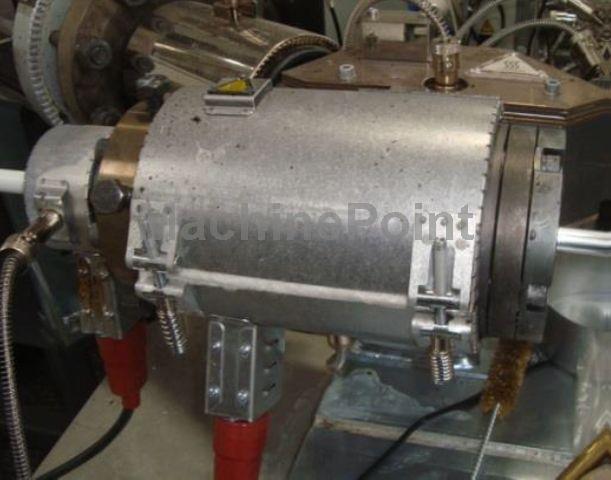

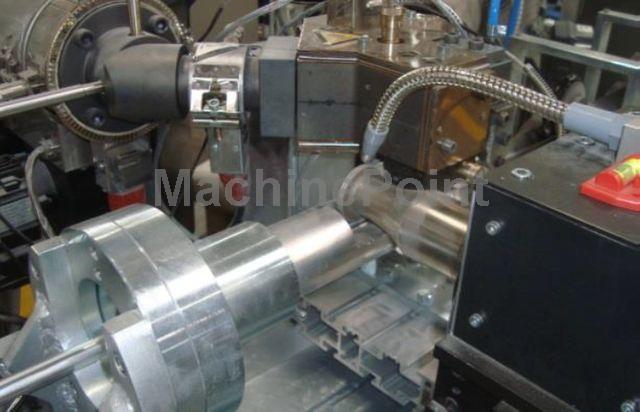

Item 10) Extrusion table incl. inner and outer heads

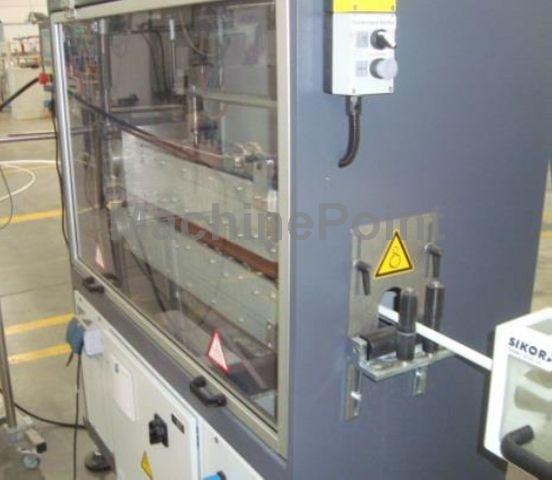

Item 11) X-Ray measuring device X-Ray 6070
-Measurement of diameter, wall thickness, ovality and eccentricity

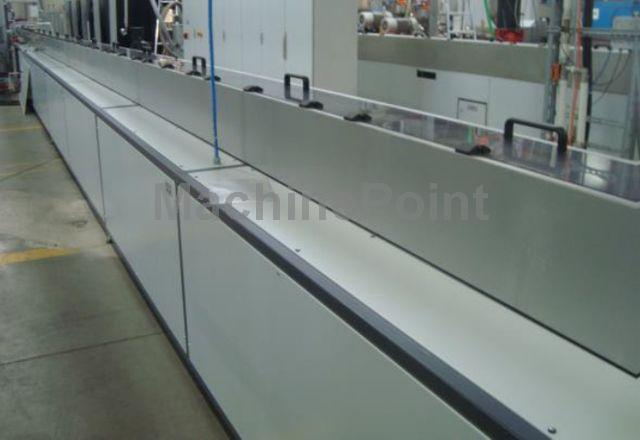

Item 12) Cooling section
(reprogramming in other languages could offered separately)
Item 13) Haul-off AKB 800

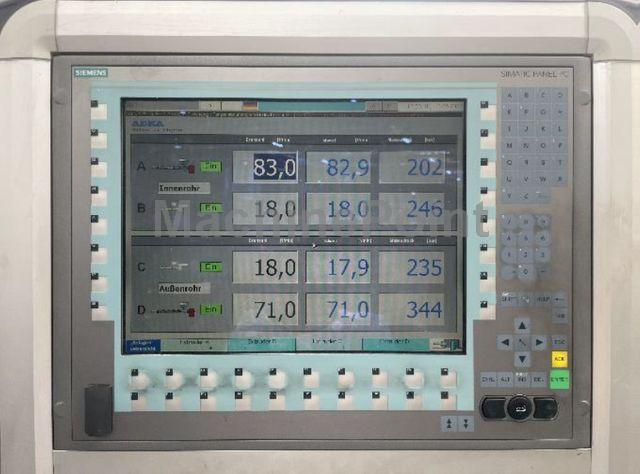

Item 17) Central control cabinet
Item 18) 1 Conversion set size 16 complete consisting of:
- Roller block with bracket unit
- Roller forming complete
- outer die complete
- inner die complete
- heating belt
- blowing-off die
- accessories
Item 20) Documentation available

Can be shown in production

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: < 1 month

Voltage: 400 V Triphase
Frequency: 50 Hz

MachinePoint's services:

Loading and lashing

Packaging

Dismantling

Refurbishing & Overhauling services

Used Machinery Appraisals

Transport of industrial machinery
