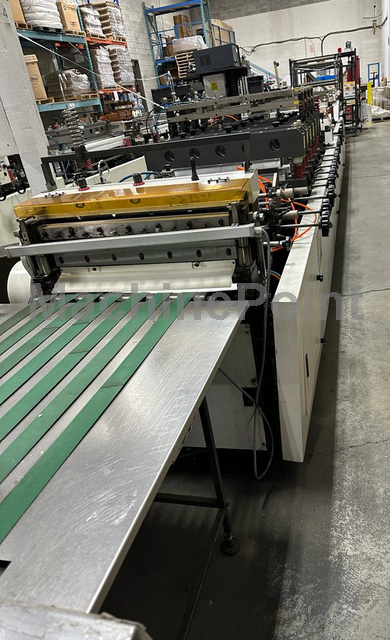

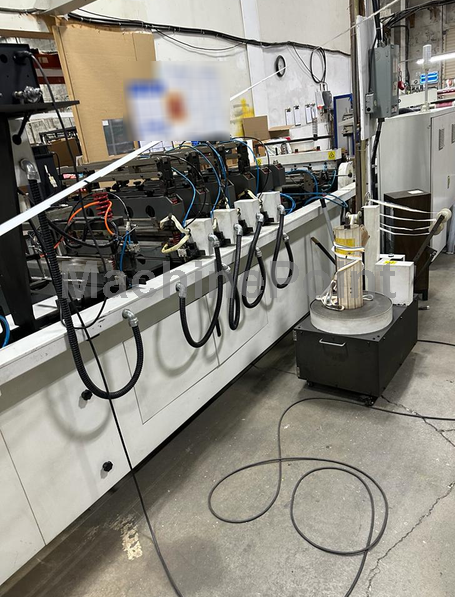

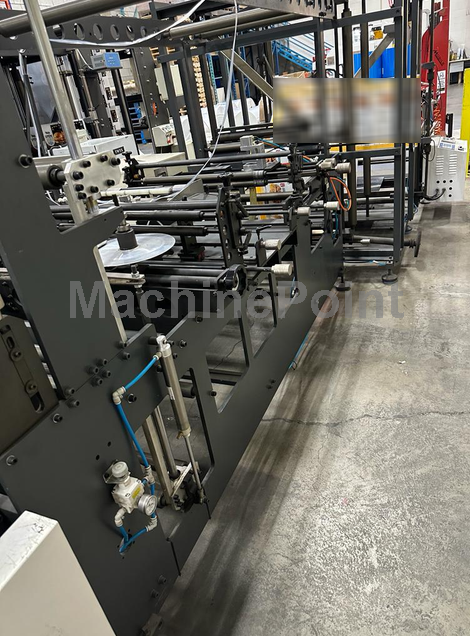

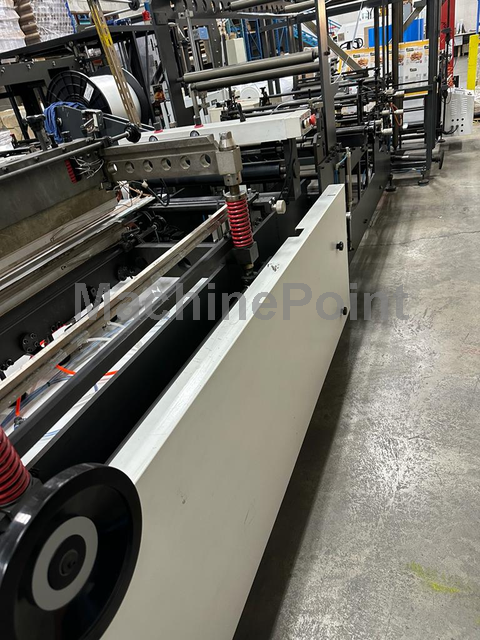

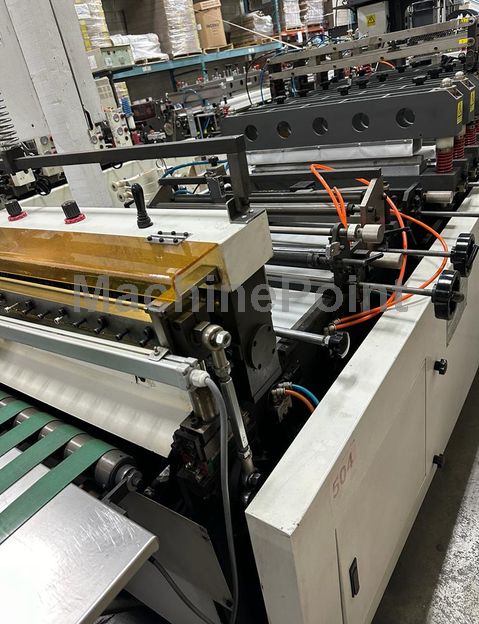

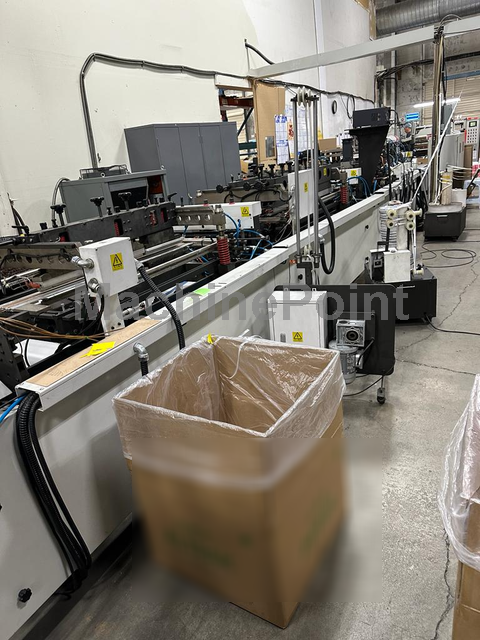

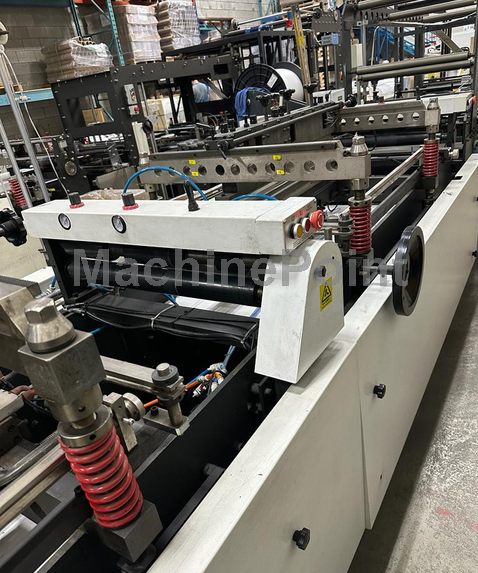

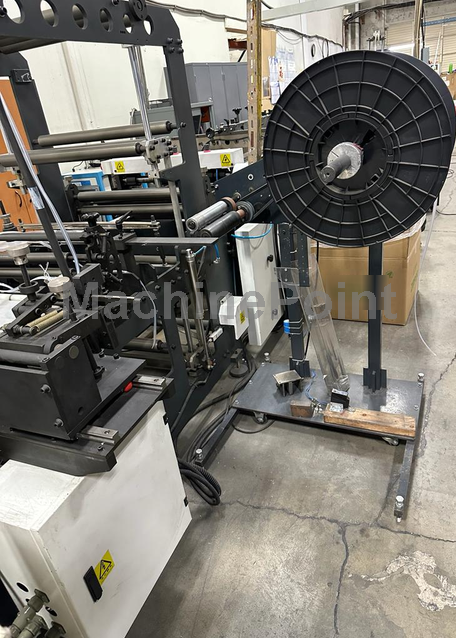

Pouch making machine KING-MO MACHINERY, MachinePoint offers their clients all the services necessary to buy the machine: Transport, dismantling, and legal consultancy.
Ref.: 300046350
Year: 2018
Brand: KING-MO MACHINERY
Delivery time: Immediate
3-side-seal, stand up, zipper, automatic bag making machine

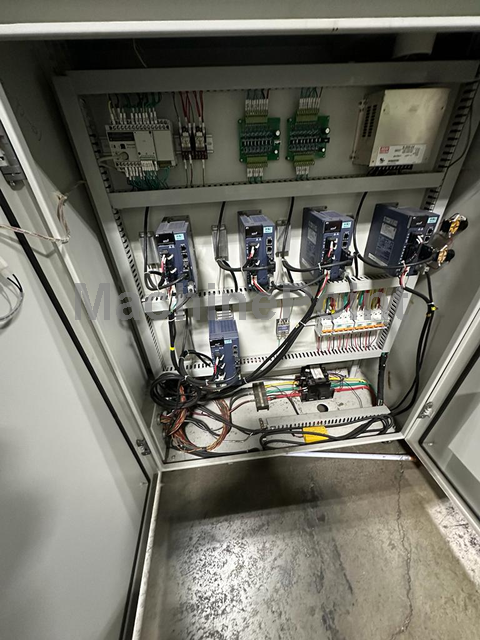

4 servo for film feeding, 1 servo for sealing bar vertical drive
Thickness 40-180 microns
Maximum parent-web diameter: Ф800mm
Unwinding core inner diameter: Ф3″
3 side seal bag
Bag width range: 75-600mm
Bag length range: 50-400mm (Seal two times)
*Use of skip unit (6 times) enables to up max.2400mm bag length
Max. number of shots:160shots/min
Max. film speed:36m/min
Single web stand up bag
Bag width range : 60-400mm (Seal two times)
Bag length range: 75-450mm
Gusset depth: 25-65mm
Gusset punching hole: Ø16mm
Max. number of shots:120shots/min
Max. film speed:30m/min
3 side seal zipper bag
Bag width range: 60-300mm (Seal two times)
*Use of skip unit (6 times) enables to up max.1800mm bag width
Bag length range: 75-600mm
Max. number of shots:100shots/min
Max. film speed:24m/min
Single web stand up zipper bag
Bag width range : 60-300mm (Seal two times)
Bag length range: 75-450mm
Gusset depth: 25-65mm
Gusset punching hole: Ø16mm
Max. number of shots:100shots/min
Max. film speed:24m/min
The working speed depends on the material condition and bag size.
3 side seal bags can be made by three lanes operation within the max. parent-web width.
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 220 V
Frequency: 220 V
