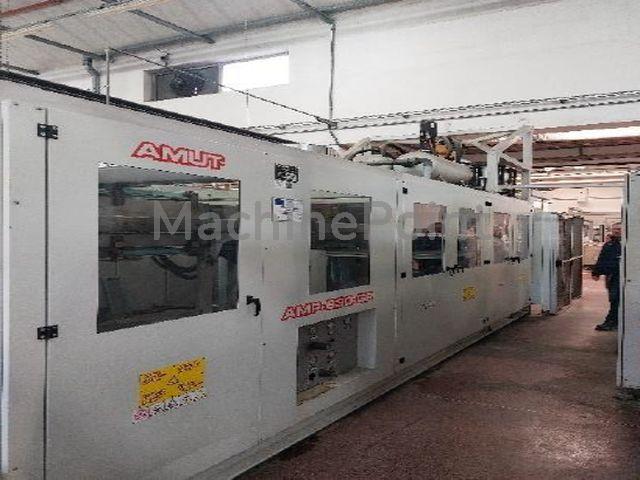

Used AMUT COMI AMP 630 GP SP of 2010 for sale

Unwinder SFSE/ACF820 with electric coil lift Reel diameter: 1200 mm max Core inner diameter max: 75-152 mm ACF820 off-line thermoforming machine Three-station thermoforming machine, forming, die-cutting and stacking in sequence. Scrap winding device Sheet width, max: 900 mm Pitch, max: 650 mm Forming station Closing force: 240 kN Die cutting station: Cutting area: 800 x 630 mm,Closing force: 600 kN Bulkhead stacking station:Stacking area: 800 x 630 mm Leaf inlet preheating consisting of two side heaters, independently controlled thermally Quick clamping of the forming mold Press-last for upper and lower forming mold, servo driven. Rapid clamping of cutting equipment Manually operated irreversible mechanical clamps for securing cutting equipment on the moving platens of the cutting press Die heating plate for cutting station, applicable on both moving platens. Automatic manipulator for robotic extraction of thermoformed parts

Foil width max: 950 mm Pitch max: 620 mm Max diameter reel: 1200 mm Production: max 75 cycle/min Clamping force forming station: 800 kN Forming by compressed air and vacuum Cutting Area: 800x600 mm Clamping force cutting station: 800 kN Heating Power: 75 Kw Preheater Triple station to form, steel rule die cut and stack in sequence Forming station -possibility to cut in the forming station -electric plate presses upper and lower floor - Electric plug-in upper and lower f -Electrical adjustment of the height of the upper and lower plates Cutting station -Electrical adjustment of the height of the upper and lower plates -heated plate upper and lower deck Stacking station - bulkhead stacker -Stacker with robot -Electric a/b stacker for use with bulkhead stacker Electrical handling of the press plates and the stacker Stacking systems for different types of products: you can choose the standard stacker or the robot Press platens and stacker electrically moved Stacking system to suit differeny kinds of thermoformed items: to be chosen the standard version and robotized stacker Ultrarapid system for moulds loading and matching, as well as for utilities connection Chains spacing electrically adjustable on 3 independent points Sheet index by chains, with pull unit by servomotor fitted after the stacker Trims winder with automatic tension adjustment Converyor belt Delivery 6 monts from the signature
