Used PALLMANN PFV 250 of 2017 for sale

2017 | Ref.: 300047511

Agglomerator PALLMANN, We guarantee that the buying process for used machinery through MachinePoint is safe and professional.

Data Sheet of Used PALLMANN PFV 250

Ref.: 300047511

Year: 2017

Brand: PALLMANN

Status:
For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?

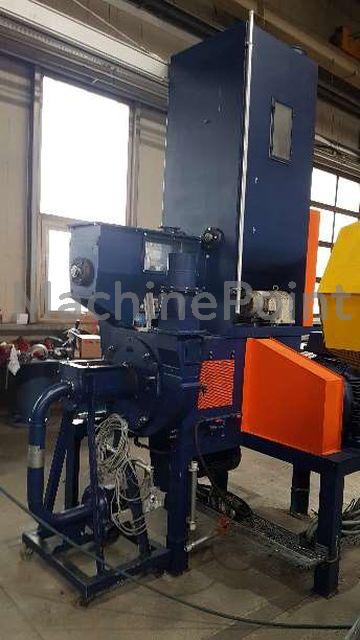

PALLMANN - PFV250 - Used machine
PALLMANN - PFV250 - Used machine
PALLMANN - PFV250 - Used machine

Technical Specifications:

  • Volume: 250 l
  • Output Capacity: 600 kg/h

Other Specifications:

Product: Agglomeration plant
Manufacturer: partly from PALLMANN, comparable to PFV 250
Agglomeration unit: Agglomeration unit, Siemens, energy efficiency IE3, 75kW automatic adjustment of the pressure pieces
Rotating knifes, 5 kW, Option: 4 blade outer rotor
Cooling water 700-1100 l/h
Control cabinet
Moisture extraction via internal spindle
Option: Pyrometer
easy disassembly due to conical feed screw
Stock bin: Stock bin movable for external supply without stock bin
Hot melt granulator: Stainless steel, 30 kW, in-fees 500 x 400 mm, Grid 10 mm with housing cooling

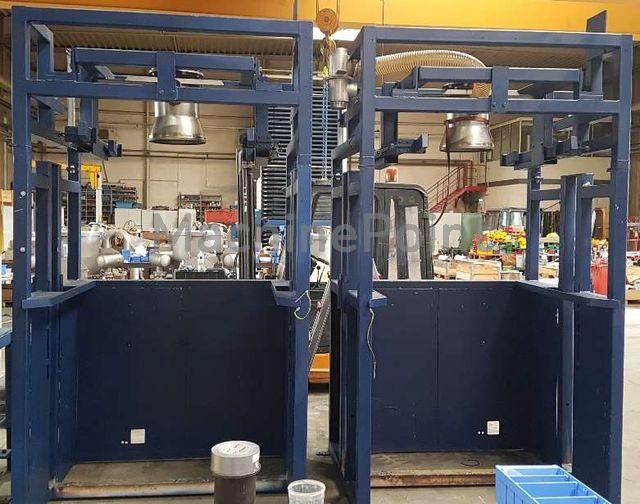

Finished product: 2 Big Bag stations with pneumatic valve
Balance up to 1500 Kg with pneumatically movable holders
Option: with fine dust extraction
Flow rate: depending on raw material
180 – 600 kg/h

Working hours ca. 1000

Other Details:

Rebuild: 2017

Guarantee: Without guarantee

Current condition: Not running. Can be shown in dry cycle

Availability: Immediate

Voltage: 75 Kw

MachinePoint's services:

Loading and lashing

Packaging

Dismantling

Refurbishing & Overhauling services

Used Machinery Appraisals

Transport of industrial machinery

Similar Products:

Agglomerator PALLMANN PFV 400/40

PALLMANN PFV 400/40

Agglomerator

2013
Ref: 300048133
PALLMANN
More information
Agglomerator PALLMANN PFV 315

PALLMANN PFV 315

Agglomerator

2014
Ref: 300048828
PALLMANN
More information
Agglomerator PALLMANN PFV 400

PALLMANN PFV 400

Agglomerator

2013
Ref: 300047861
PALLMANN
More information
Agglomerator PALLMANN PFV 250/20

PALLMANN PFV 250/20

Agglomerator

2001
Ref: 300048011
PALLMANN
More information
Agglomerator H.-I. PALLMANN IPA 400/40

H.-I. PALLMANN IPA 400/40

Agglomerator

1999
Ref: 300048275
H.-I. PALLMANN
More information
Single screw repelletizing line STARLINGER recoSTAR Dynamic 85 C-VAC

STARLINGER recoSTAR Dynamic 85 C-VAC

Single screw repelletizing line

2023
Ref: 300048196
STARLINGER
More information
Single screw repelletizing line EREMA Intarema 1310 TVEplus

EREMA Intarema 1310 TVEplus

Single screw repelletizing line

2015
Ref: 300046400
EREMA
More information
Single screw repelletizing line EREMA 1716 TVE Plus ecoSAVE

EREMA 1716 TVE Plus ecoSAVE

Single screw repelletizing line

2013
Ref: 300047753
EREMA
More information

Machines sold in the past:

H.I.Pallmann Agglomerator IPA 400/40 available for sale material that can be processed: PE, PP, LDPE, HDPE, MDPE, Agglomerator motor: 250 kW Fan motor: 18,5 kW Granulator motor: 55 kW Each machine has: - Cyclone - Powder separator - spare Part Package - Cutting mill Zerma 700/1000 - Electrical cabinet No longer in production, but in good working conditions. Machine was dismantled in 2023. Machine is intact with all parts, but dismantled and packed with film on stock.
Rubber recycling plant Manufacturer: Pallmann Model: PS 4-5 Year: 2017 Material rubber NBR, SBR, etc. Presentation of the input material in Bales or pre-cut pieces. Anti-caking agent: Talc - Depending on the type of rubber and the screen installed, 0 - 8% will be used for the most part. Final product As desired depending on the screen installed Production capacity 200 - 2000 kg/h (depending on the screen) Consisting of: 1. bale pre-cutter 1x bale pre-cutter - Guillotine 2.Feeding 1x Conveyor belts with Sesotec metal detector 3. Mill 1x Blade mill type PS-C 4 - 5 F 2 G 3 1x Motor 55 kW 4. Suction + Filter 1x Automatic suction 1x Dust collection system 5. Dosing unit for anti-caking agent 6. Water chiller + air cooled cooler 7. Electrical equipment 1x Control panel and control unit 8. Additional equipment 1x Soundproofing cabinet
PKM 600 microniser - Tank + vibrating chute (used) - Microniser PKM 600 with segments (used) - Pneumatic suction with 11 kW fan + bagging in big-bag (new) - Control cabinet (new) Mechanical guarantee for 6 months
Pulverizing unit for PE rotomolding powder consisting of: -PKM 800 pulverizer: Feeding opening 85 x 190 mm Discharge diameter 225 mm 160 grooved segments (80 rotary, and 80 fixed in the door, cooled down) Drive motor power: 90 kW -Cyclone -Allgaier vibrating sieve TSM 2000 (1993) -Blowers
Plastic agglomeration system, type PFV for agglomeration of PET sheets and flakes PET Throughput rate: 500- 700 Kg/h Working diameter of the die: 315 mm Working width: 20 mm Motor hot-melt granulator: 45 Kw Frame device: Drive by spur gear motor, 1.1 Kw Number of beating shafts: 2 Number of beating arms per axle: 3 Output conveying worm Driven by frequency-controlled motor, 3 Kw Output conveying worm speed (min.-max.): 8.5 - 128 rpm Frequency regulation range: 5 - 75 Hz Output worm screw thread pitch: 120 mm Pitch depth: 20 mm Number of stirring blades: 12 Cutting aggregate Motor drive: 5,5 Kw Rotational speed of rotating blades (min.-max.) approx.120-900 min-1 Frequency regulation range: 10- 75 Hz Number of rotating blades: 2 Main motor power: 110 Kw water consumption : 600-900 l/h
