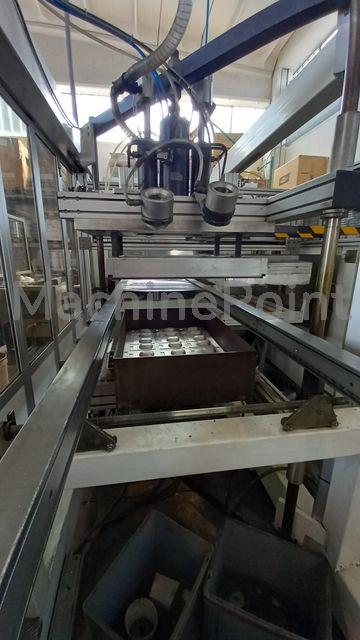

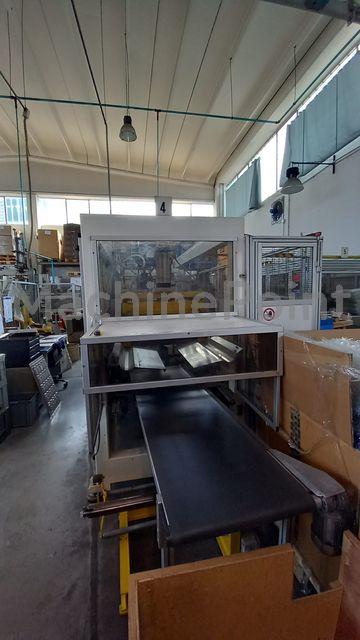

Used OMG OMF/RV 50 of 2003 for sale

The machine has been designed for PET film. Reel holder diameter 76 mm (possible to adapt to 152 mm) Max.positive and negative depth 150 mm Max. Sheet width 840 mm Upper heating, installed power 55 kW Lower heating, installed power 55 kW Processing air pressure 6 bar Max. Forming pressure 2 bar Hydraulic power pressure 11 kW Max. Cutting clamping force approx. 70T No preheating unit The production capacity for height of tray H60 i H80 without padding – max. 24 000 pcs / 8h The production capacity for height of tray H60 i H80 with padding – max. 10 000 pcs / 8h Noise ( near 1 m): max 82 dB The machine includes reel holder, automatic chain feeding and transport system, heating zone, forming station, cutting station, stacking station. All settings are controlled by the PLC operator panel.

Semi-automatic machine No sheet loader Heating by infrared ceramic radiants (lower and upper panel) Counter mold PLC: OMRON Mould holder table guided by servo motors Vacuum pump: 120 m3 / h

Materials: PVC, PET, PS Cycles performed: 2.640.000 Feed Type: Reel Sheet width: 550 mm Depth: 100 positive and 100 negative Power of each heater: 500 or 350 watts Adjustment of heating elements: individually Sheet thickness: max 700 micron - min. 200 micron Cycle / min production: depending on thickness Molds: yes

Heating by infrared radiant ceramic The movements are: * Pneumatic : heating panels, backing mould, locking frame * Electric : mold carrier table (servomotorized) Working hours : 30.000 Max sheet width: 1550mm plug assist automata OMRON

3 stations : forming - cutting - stacking Forming area min : 350x200mm Max. sheet width : 820 mm Maximum speed without material : 30 Cycles/min Upper radiating panel power : 34kW Lower radiating panel power : 26 kW Pneumatic working position : 6 bar Upper press power : 4 kW Lower press power : 4 kW Maximum hydraulic working pressure : 190 bar Tank capacity of hydraulic gearcase : 300 lt Motor power of hydraulic gearcase : 10 kW Maximum pressure of cutting press : 60ton Vacuum pump capacity : 100 M3/h Power of vacuum pump motor : 2.2 kW Maximum pressure of mould holder platforms : 28 to REFURBISHED: 1: Forming stations servo motors and brakes have been changed. 2: Cutting station servo motors and brakes have been changed 3: Pneumatic and hydraulic systems have been changed 5: 20 ceramics heater g have been changed
