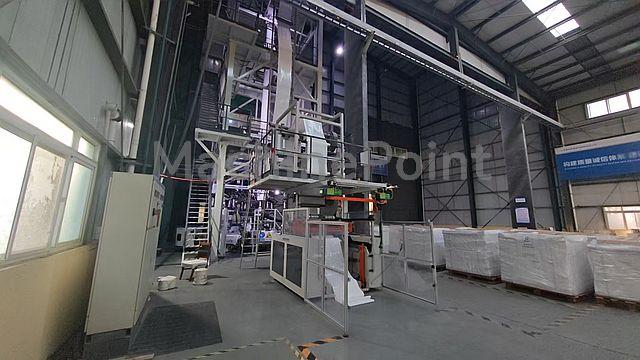

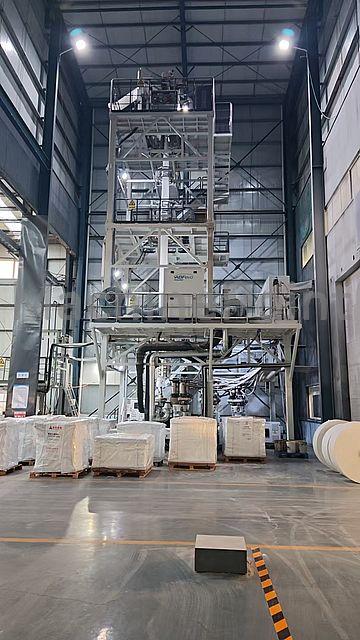

Used Coextrusion lines: BANDERA Coex of 2021
Haven’t found the machine you need?
Be the first to know.We’ll notify you as soon as a machine with these specifications becomes available. In the second-hand market, the best deals go fast.
Similar Products:
WINDMÖLLER & HÖLSCHER Varex
Coextrusion lines
Ref: 300042763
WINDMÖLLER & HÖLSCHER
More information
Data Sheet of Used BANDERA Coex
Ref.: 300048255
Brand: BANDERA
Year: 2021
- Materials: LDPE, LLDPE, mLLDPE and blends with MDPE, HDPE, coPP
- Film Width (Max): 700 mm
- Output Capacity: 400 kg/h
- Number Of Extruders: 5
- Layers: 5
- Rewind Unit Type: Single
Other Specifications:
Extrusion tubular film for Heavy Duty Bags / FFS
Layers composition : Inner and outer layers A,B,D&E up to 25% each, Middle layer C up to 60%
Thickness range 80 - 200 my
Doteco, model Grado Adroit gravimetric batch system 4+4+4+4+4
Extruders: 1x TR 75- 30D AFS and 4x TR 50- 30D AFS
5-layer coextrusion die head exph 140 - 250 co3 with ibc
Die plate diam 180 mm exph 14/25 + ibc inserts
High performance multi lip air ring karat 2.2 com 3 – special karat
Gauge control system variocool 32
Elevator system for high performance air ring karat
Film thickness measuring unit k-design
Calibration cage ra 800 / 8 / 5 roll (no marking type)
Cage fm 800 / 8 / 2 roll (no marking type)
Rotating take off group st 219-d-s-w 800 hdb ffs special
Web center guide
Single-station automatic winder hds 800/1 contact type. diam max reel 1500 mm
Air cooling group abf 75/pw
Tower
